| Prod Model: |
ZVF300-G3R7T2MD, ZVF300-G7R5T2MD, ZVF300-G015T2M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
Three Phase 220V |
| Power Range: |
0.75-132kw |
| The Output Frequency: |
0.00~600.00Hz |
| Modulation Mode: |
Optimal Space Voltage Vector PWM Modulation |
| Starting Frequency: |
0.00~10.00Hz |
| Carrier Frequency: |
1.0~15.0kHz |
| V/F Curve: |
1.Linear Curve2.Quadratic3.User Defined V/F Curv |
| Operating Command: |
Operation Panel Control ,External Terminal Control |
Product Description

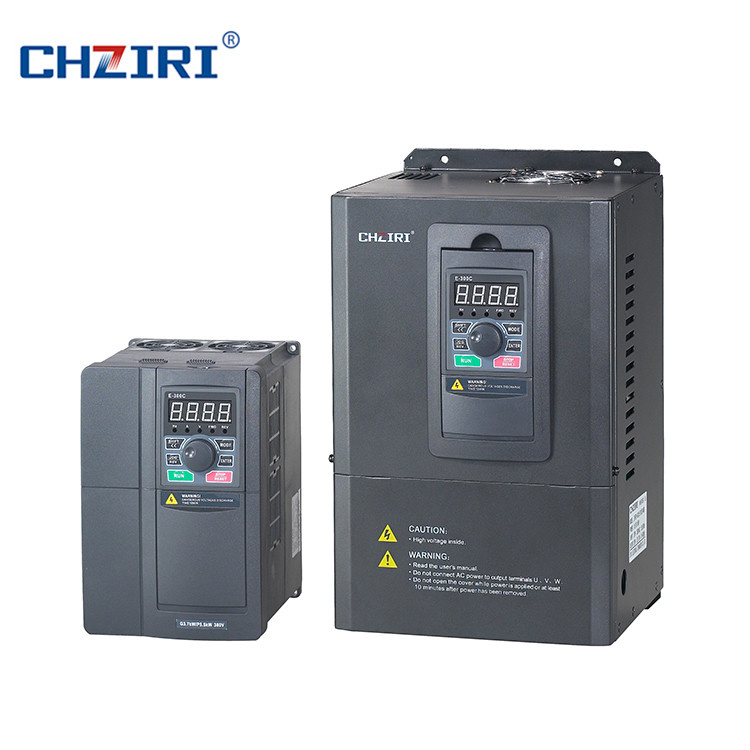

ZVF300 Series frequency inverter is suitable for many kinds of general model of high quality, low noise and multi-purpose.Three phase 220V Variable frequency Inverter manily used in the machinery . the market is South America and
Philippines.1. Power: 0.75KW-132KW 50/60Hz.
2. ZVF300 T2 Series: Three phase input, 220V± 20%, Three phase output.
3. Output Frequency: 0~600Hz.
4. CE & ISO9001
5. Built-in RS485 Port
6. There have braking unit for small inverter
7. Capacitor: 0.75KW- 15KW (NICHICON) 18.5KW~375KW (STG) (Import from Japan).
Infineon IGBT and MITSUBISHI. ( Import from Germany ).
For more details, Welcome to send inquiry to us!

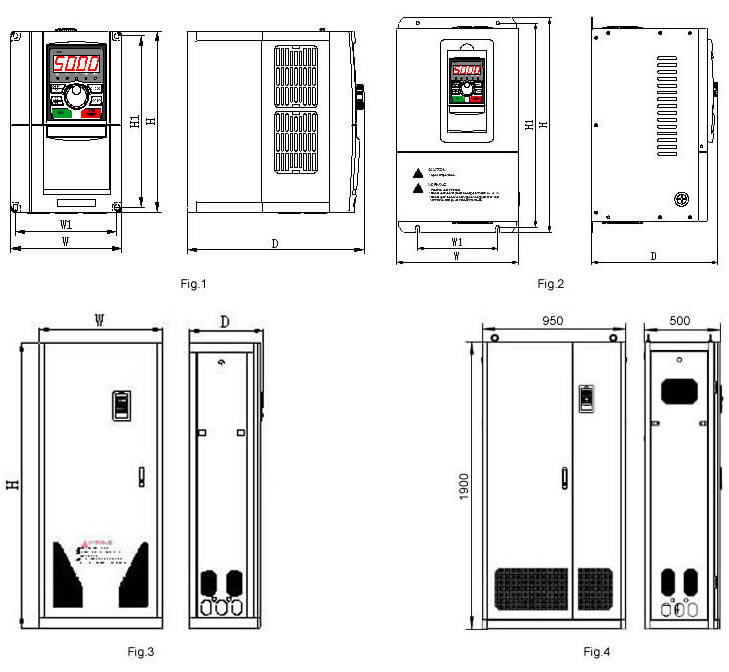

Outline Dimension (Unit:mm)
Inverter Model | Power
(KW) | Current
(A) | Dimension (mm) | Figure |
| H | H1 | W | W1 | D | d |
| ZVF300-G0R4T2MD | 0.4 | 2.4 | 185 | 175 | 118 | 108 | 170 | 4 | |
| ZVF300-G0R7T2MD | 0.75 | 5.0 | Fig.1 |
| ZVF300-G1R5T2MD | 1.5 | 7.5 | 185 | 175 | 118 | 108 | 190 | 4 |
| ZVF300-G2R2T2MD | 2.2 | 10 |
| ZVF300-G3R7T2MD | 3.7 | 16 | 215 | 205 | 145 | 135 | 193 | 4 |
| ZVF300-G5R5T2MD | 5.5 | 25 | 265 | 253 | 185 | 174 | 215 | 5.5 |
| ZVF300-G7R5T2MD | 7.5 | 33 | 380 | 360 | 220 | 140 | 230 | 6 | Fig.2 |
| ZVF300-G011T2M | 11 | 42 | 460 | 443 | 260 | 177 | 268 | 6 |
| ZVF300-G015T2M | 15 | 55 |
| ZVF300-G018T2M | 18.5 | 70 | 620 | 603 | 265 | 182 | 300 | 8 |
| ZVF300-G022T2M | 22 | 80 |
| ZVF300-G030T2M | 30 | 110 |
| ZVF300-G037T2M | 37 | 130 | 720 | 702 | 365 | 240 | 360 | 9 |
| ZVF300-G045T2M | 45 | 160 |
| ZVF300-G055T2M | 55 | 200 |
| ZVF300-G075T2M | 75 | 270 | 900 | 872 | 493 | 383 | 390 | 12 | Fig.3 |
| ZVF300-G090T2M | 90 | 320 |
| ZVF300-G110T2M | 110 | 380 | 1320 | 1286 | 660 | 550 | 415 | 12 |

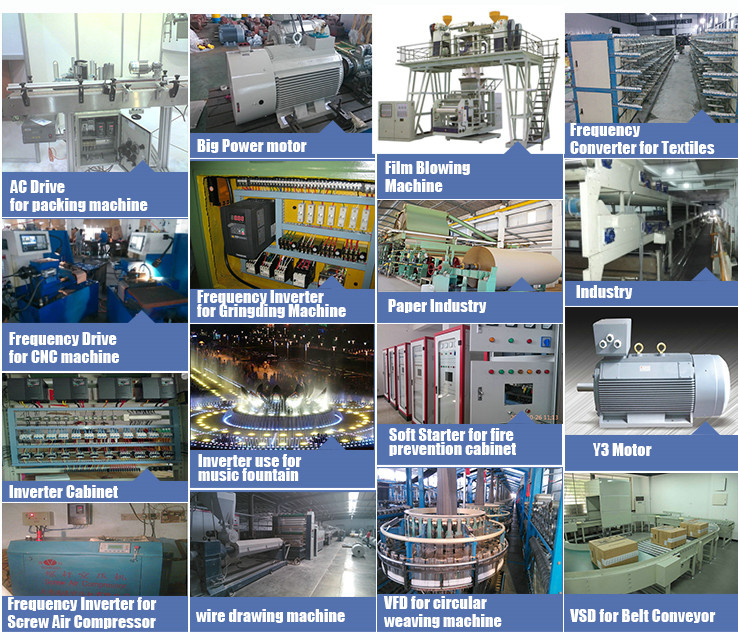

Scope of application:CHZIRI frequency inverter applied at the metallurgy, plastomer,textile, food-stuff,petroleum, chemical industry, paper-making, pharmacy,printing, building material,crane ,music spring .water supply systerm and all kinds of machine equipment.As AC asynchronous motor's driving and speed control.
Frequency Inverter can use in the following environmental | Ambient | Place to be used | Indoor location free from direct exposure to sun light, high humidity or dew condensation, high levels of dust, corrosive gas, explosive gas, inflammable gas, oil mist, salt and etc |
| Altitude | Below 1000 M |
| Ambient Temperature | -10 C to +45 C (Bare Machine: -10 C to+50 C) |
| Humidity | 20%-90% RH without dew condensation |
| Vibration | <0.5G |
| Storage temperature | -20~+60C |
| Structure | Protection class | IP20 |
| Cooling mode | Forced air cooling |
| Installation mode | Wall mounted or floor-type actuator |

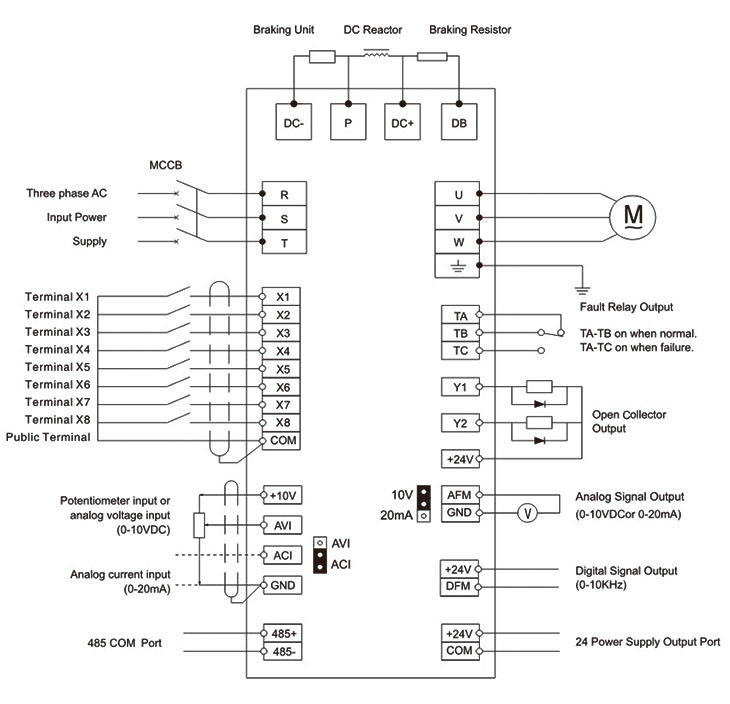

Wiring Diagram for Inverter System .
FAQ 1. Can I get some samples?Yes, Sample order is available for quality check and market test .But you have to pay for it .2. What's delivery time?It usually takes about 3-5 working days for small order and 10-15 days for big order .3. What's your payment terms?We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.4. What's your warranty terms?We offer 12 months warranty time .5. Do you have the products in stock?Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .6. Can I mix different power in one container .Yes ,Different models can be mixed up in one container ,even one order .7. How does your factory do the quality control?Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .8. Can you sell spare parts ?If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.9.I would like to know if you have a partner for export?Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..10. Can you make the inverter and soft starter control boards (switchgear)?Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .11.Can the inverter connect with computer?Yes .All inverters have built-in RS485 port .and support Modbus communication protocol. 12.How can I trust you ?The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .
