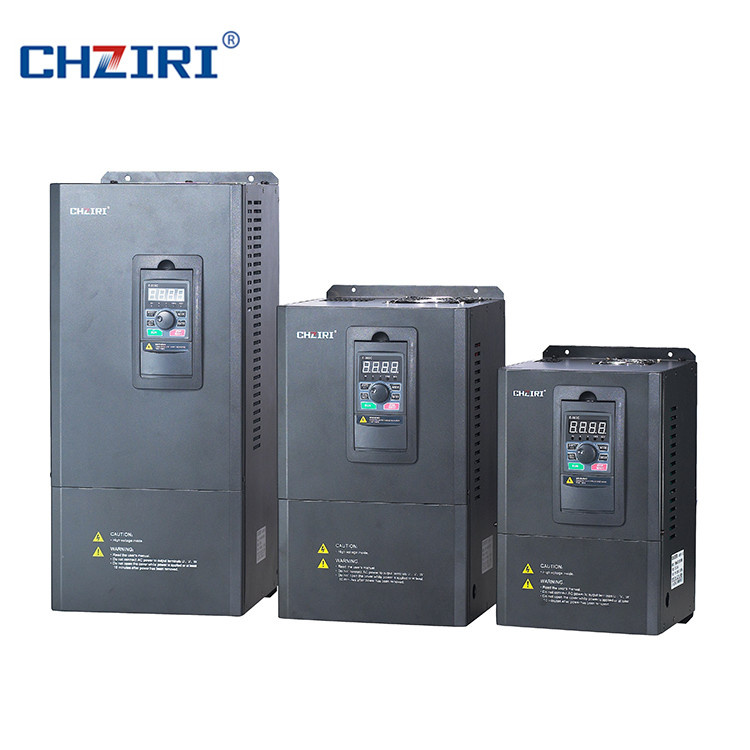

Chziri Variable Speed Drive 37kw 380V
| Price: |
US $ 535-580/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
ZVF300-G037/P045T4M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Power Range: |
0.75kw~600kw |
| Application: |
to Drive and Control The Speed of The Motor |
| Output Type: |
Triple |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Principle Of Work: |
SVC Control , V/F Control. Torque Control |
Product Description

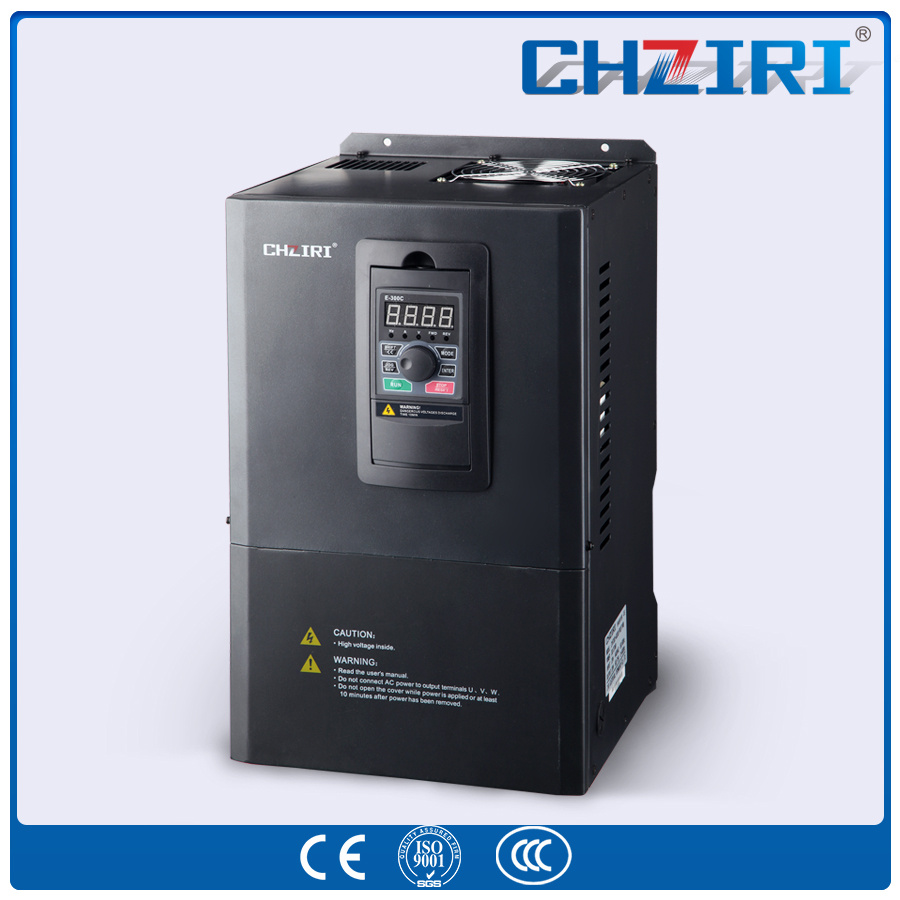

ZVF300 Series Variable Speed Drive 37kw are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors.
Main Features ZVF300 Series Variable Speed Drive 37kw
1. Output frequency: 0-600Hz.
2. Multiple password protection mode
3. Remote control operation keypad, convenient for remote control.
4. V/F curve &multi-inflection point setting, flexible configuration.
5. Keyboard parameter copy function. Easy to set the parameters for multi-inverters.
6. Wide industry application. To expand special function according to different industries.
7. Multiple hardware and software protection and optimized hardware for anti-interference technology.
8. Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
9. Unique adaptive control technology. Auto current limiting and voltage limiting and under-voltage restrain.
10. Optimized external installation and internal structure and independent air flue design, fully enclosed electrical space design.
11. Output automatic voltage regulation function. (AVR), automatically adjust the output pulse width. To eliminate the influence of the grid change on load.
12. Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and flow. And reduce the cost of the control system.
13. Standard MODBUS communication protocol. Easy to achieve the communication between PLC, IPC and other industrial
equipments.

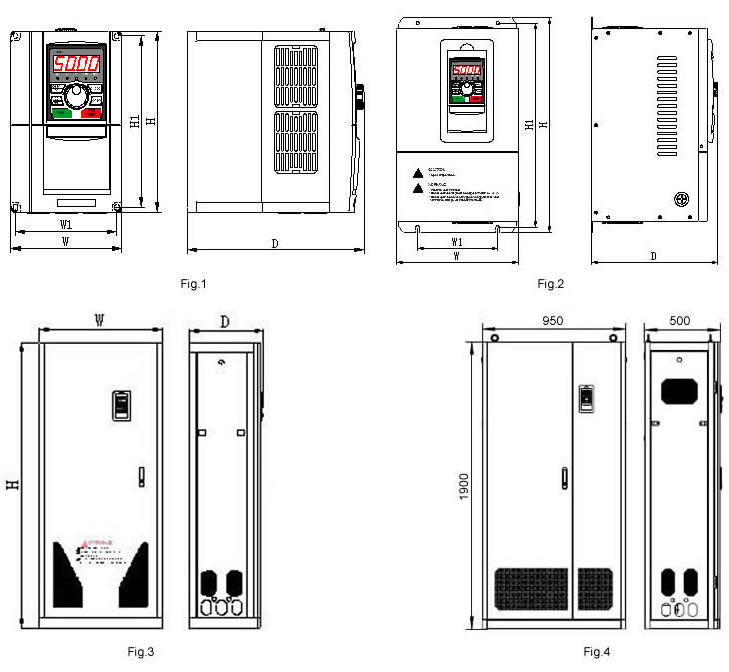

Model for Selection of Variable Speed Drive
Inverter Model | Power
(kW)
G/P | Current
(A) | Dimension (mm) | Figure |
| H | H1 | W | W1 | D | d |
| ZVF300-G0R4S2MD | 0.4 | 2.4 | 185 | 175 | 118 | 108 | 155 | 4 | Fig.1 |
| ZVF300-G0R7S2MD | 0.75 | 7.5 |
| ZVF300-G1R5S2MD | 1.5 | 7.0 |
| ZVF300-G2R2S2MD | 2.2 | 10 |
| ZVF300-G0R7T4MD | 0.75 | 2.5 | 185 | 175 | 118 | 108 | 155 | 4 | Fig.1 |
| ZVF300-G1R5T4MD | 1.5 | 3.7 |
| ZVF300-G2R2T4MD | 2.2 | 5.0 |
| ZVF300-G3R7/P5R5T4MD | 3.7/5.5 | 9.0/13 | 215 | 205 | 145 | 135 | 178 | 4 |
| ZVF300-G5R5/P7R5T4MD | 5.5/7.5 | 13/17 |
| ZVF300-G7R5/P011T4MD | 7.5/11 | 17/25 | 265 | 253 | 185 | 174 | 200 | 5.5 |
| ZVF300-G011/P015T4MD | 11/15 | 25/33 |
| ZVF300-G015/P018T4MD | 15/18.5 | 33/37 | 380 | 360 | 220 | 140 | 210 | 6 | Fig.2 |
| ZVF300-G018/P022T4MD | 18.5/22 | 37/45 | 460 | 443 | 260 | 177 | 248 | 6 |
| ZVF300-G022/P030T4M | 22/30 | 45/60 |
| ZVF300-G030/P037T4M | 30/37 | 60/75 |
| ZVF300-G037/P045T4M | 37/45 | 75/90 | 620 | 603 | 265 | 182 | 280 | 8 |
| ZVF300-G045/P055T4M | 45/55 | 90/110 |
| ZVF300-G055/P075T4M | 55/75 | 110/150 |
| ZVF300-G075/P090T4M | 75/90 | 150/176 | 720 | 702 | 365 | 240 | 340 | 9 |
| ZVF300-G090/P110T4M | 90/110 | 176/210 |
| ZVF300-G110/P132T4M | 110/132 | 210/253 |
| ZVF300-G132/P160T4M | 132/160 | 253/300 | 1270 | | 574 | | 380 | | Fig.3 |
| ZVF300-G160/P185T4M | 160/185 | 300/340 |
| ZVF300-G185/P200T4M | 185/200 | 340/380 |
| ZVF300-G200/P220T4M | 200/220 | 380/420 | 1700 | | 710 | | 410 | |
| ZVF300-G220/P250T4M | 220/250 | 420/470 |
| ZVF300-G250/P280T4M | 250/280 | 470/520 |
| ZVF300-G280/P315T4M | 280/315 | 520/600 |
| ZVF300-G315/P350T4M | 315/350 | 600/640 | 1900 | | 800 | | 410 | |
| ZVF300-G350/P400T4M | 350/400 | 640/690 |
| ZVF300-G400/P500T4M | 400/500 | 690/860 |
| ZVF300-G500/P560T4M | 500/560 | 860/950 |
| ZVF300-G560/P630T4M | 560/630 | 950/1100 |
| ZVF300-G630T4M | 630 | 1100 |

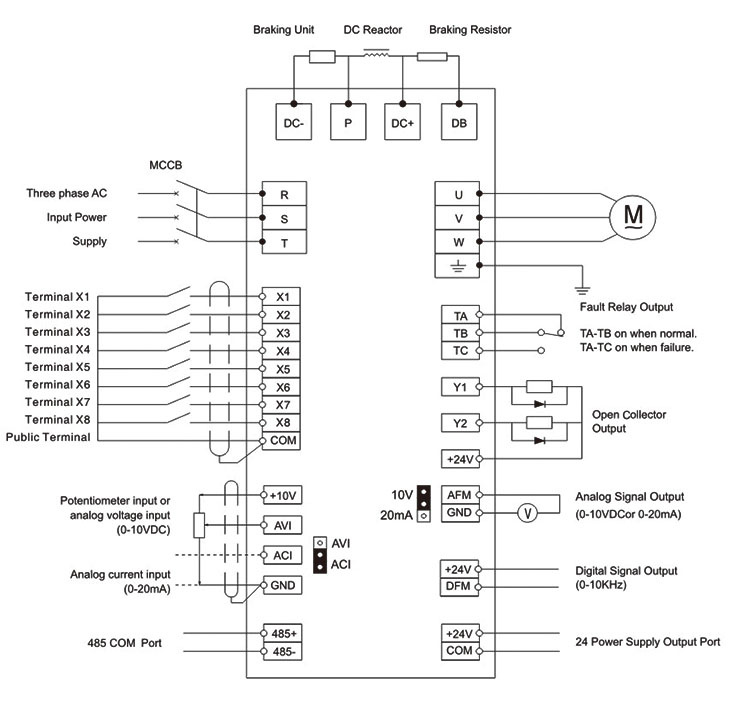

Basic System of Variable Speed Drive
CHZIRI Package of Variable Speed Drive
CHZIRI OFFICE
CHZIRI FAIR
FAQ - Can I get some samples?
Yes, Sample order is available for quality check and market test . - What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order . - What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.PayPal,Cash. - What's your warranty terms?
We offer 16 months warranty time . - Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order quantity. - How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping . - Can the inverter connect with computer,PLC ?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol. It's OK for CHZIRI VFD inverter to connect with computer and PLC . we have software engineer .can program the software for the special function . - Can you make the inverter and soft starter control boards (control panel )?
Yes. We have a lot of experience to design VFD control panel and soft starter cabinet according to your request .It's better for you to send us the primary wiring diagram . - How to be CHZIRI dealer in our country ??
CHZIRI Electrical are looking for a reliable dealer who have professional knowledge and good contacts in local market .and we will check his annual sales. As you know .the after sale service are very important . It need professional technician to do service . Most time it not quality problem . It may be application problem .How to set the parameters according to actual application .
10. How to deal with after sale service for CHZIRI products ? If your country have CHZIRI dealer .CHZIRI Partner will offer on site service . If there don't have distribution in your country . Please contact with our company directly .we will give you solution within 3 working days .
11.How can I trust you ?
The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .Welcome to send inquiry to us !
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.
9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
