Product Description

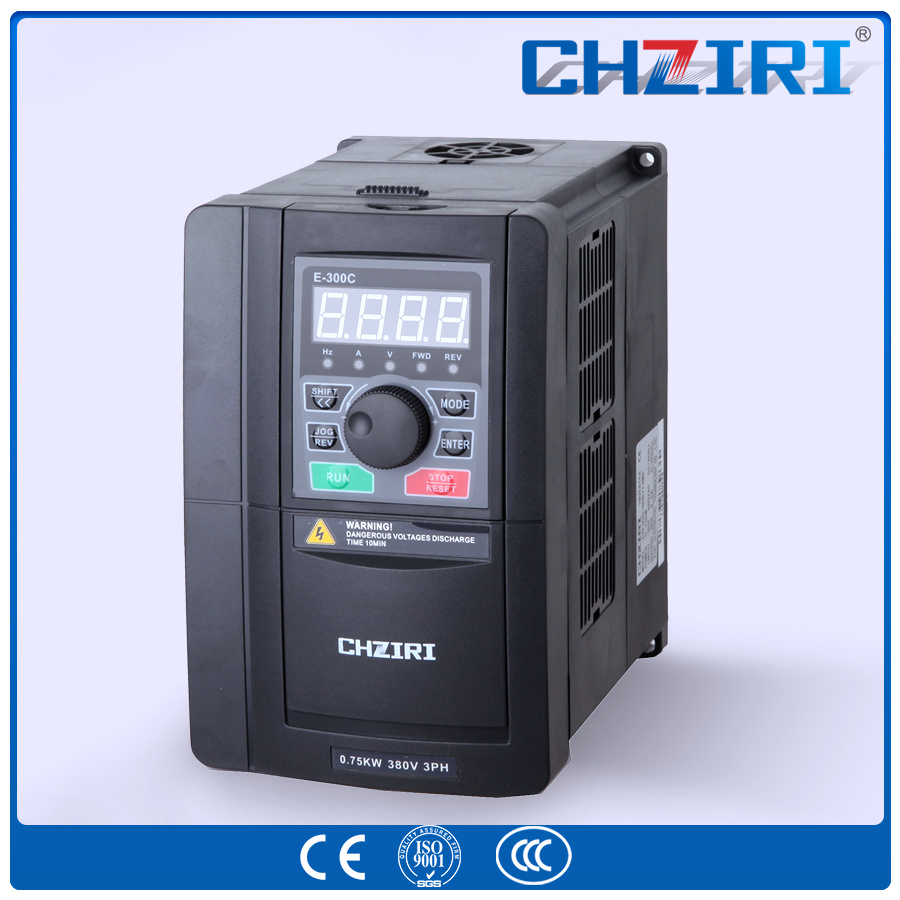

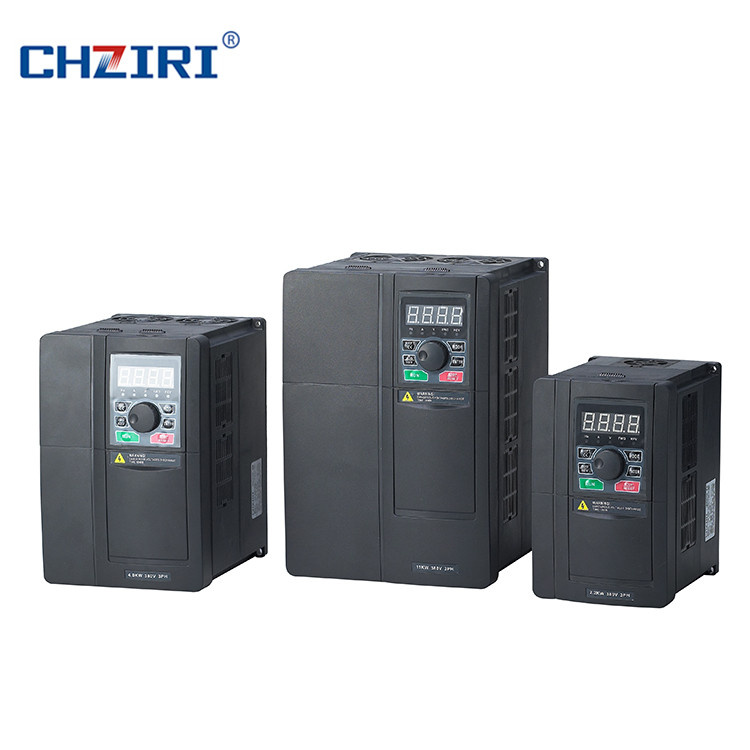

ZVF300 Series High Performance vector control frequency inverter
ZVF300 series high Performance vector control frequency inverter is ZIRI Electrical developed the new type frequency inerter . General type and fan/pump type are in one model . support Modbus communication protocol. can be widely used to control and drive the speed of induction motors and synchronous motor . superior performance, abundant functions, easy operation, high accountability and a complete range of specifications.Can fully meet the individual needs of customers in the industry.
Main Features
ZVF300 Series frequency inverter are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors . - Output frequency :0-600Hz.
- Multiple password protection mode
- Remote control operation keypad, convenient for remote control.
- V/F curve &multi-inflection point setting, flexible configuration .
- Keyboard parameter copy function . easy to set the parameters for multi-inverters .
- Wide industry application . to expand special function according to different industries.
- Multiple hardware and software protection and optimized hardware for anti-interference technology.
- Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
- Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
- Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
- Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the influence of the grid change on load .
- Built-in PID regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
- Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.
Demonstration of the model

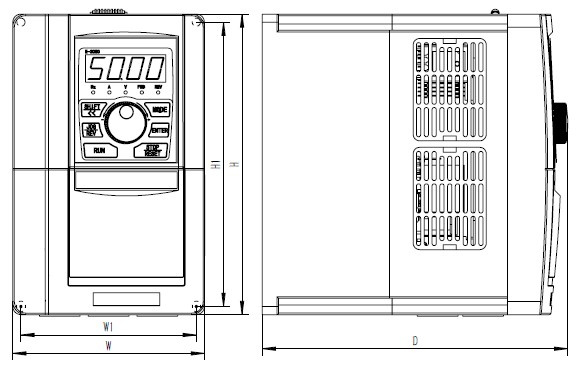

Inverter Outline &Mounting Dimension (Unit:mm)

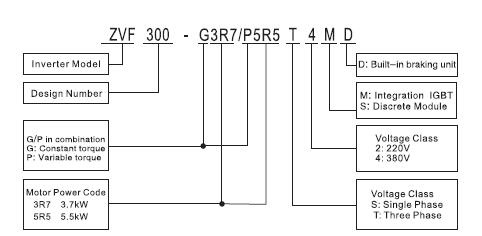

Guide Model for Frequency Inverter | Inverter Model | Power
(kW)
G/P | Current
(A) | Dimension (mm) | Figure |
| H | H1 | W | W1 | D | d |
| ZVF300-G0R4S2MD | 0.4 | 2.4 | 185 | 175 | 118 | 108 | 170 | Ф4 | Fig.1 |
| ZVF300-G0R7S2MD | 0.75 | 7.5 |
| ZVF300-G1R5S2MD | 1.5 | 7.0 | 185 | 175 | 118 | 108 | 190 | Ф4 |
| ZVF300-G2R2S2MD | 2.2 | 10 |
| ZVF300-G3R7S2SD | 3.7 | 16 | 215 | 205 | 145 | 135 | 193 | Ф4 |
| ZVF300-G0R7T4MD | 0.75 | 2.5 | 185 | 175 | 118 | 108 | 170 | Ф4 | Fig.1 |
| ZVF300-G1R5T4MD | 1.5 | 3.7 |
| ZVF300-G2R2T4MD | 2.2 | 5.0 |
| ZVF300-G3R7/P5R5T4MD | 3.7/5.5 | 9.0/13 | 215 | 205 | 145 | 135 | 193 | Ф4 |
| ZVF300-G5R5/P7R5T4MD | 5.5/7.5 | 13/17 |
| ZVF300-G7R5/P011T4MD | 7.5/11 | 17/25 | 265 | 253 | 185 | 174 | 215 | Ф5.5 |
| ZVF300-G011/P015T4MD | 11/15 | 25/33 |
Technical Indications: | Item | Item Description |
| Input | Rated voltage& Frequency | Single /Three phase 220VAC . Three phase 380V.50Hz/60Hz |
| Allowable Voltage range | Voltage fluctuate range:-20%~+20%
Voltage unbalance rate:<3%;Frequency fluctuation:≤5% |
| Output | Rated voltage | three phase 0~ input AC voltage |
| Frequency | 0.00~600.00Hz |
| Overload capacity | Type G:150% 1minute,180% 1 second,200% transient protection
Type P:120% 1minute,150% 1 second,180% transient protection |
| Control Function | Modulation mode | Optimal space voltage vector PWM modulation
|
| Control mode | Sensorless vector control (SVC), V/F control . Torque control
|
Frequency accuracy
| Digital setting::Max. Frequency×±0.01%
Analog setting:Max. Frequency×±0.2% |
| Frequency resolution | Digital setting :0.01HZ;
Analog setting :Max. Frequency x0.1%. |
| Starting frequency | 0.00~10.00Hz |
| Torque lift | Automatic torque lift: To lift the torque automatically according to the output current.
Manual torque lift, Range: 0.1_30.0% |
| Slip compensation | Setting range:0~150%,The inverter output frequency can be auto-regulated within this range according to the motor load, so as to reduce the speed variation of the motor due to load fluctuation. |
Acceleration/deceleration
time | Minutes/Seconds can be selected as time unit .0.1~3600 can be set in sequence . |
| Carrier frequency | 1.0~15.0KHz |
| Jog function | Jog frequency range:0.01~600.00Hz,
Jog acceleration /deceleration time 0.1~3600.0 can be set. |
| V/F curve | 1:linear curve;2:quadratic;3:user defined V/F curve |

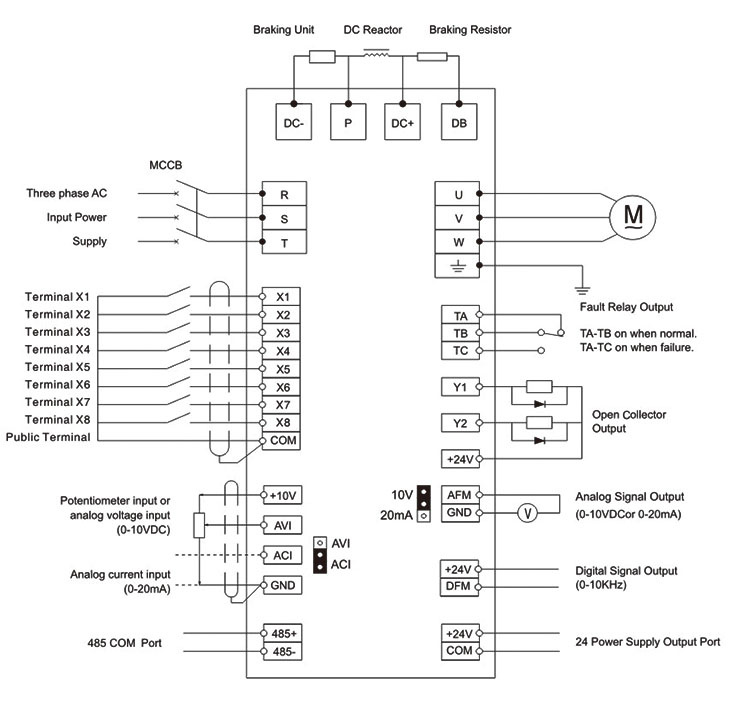

Basic Inverter Wiring
CHZIRI Pacakge

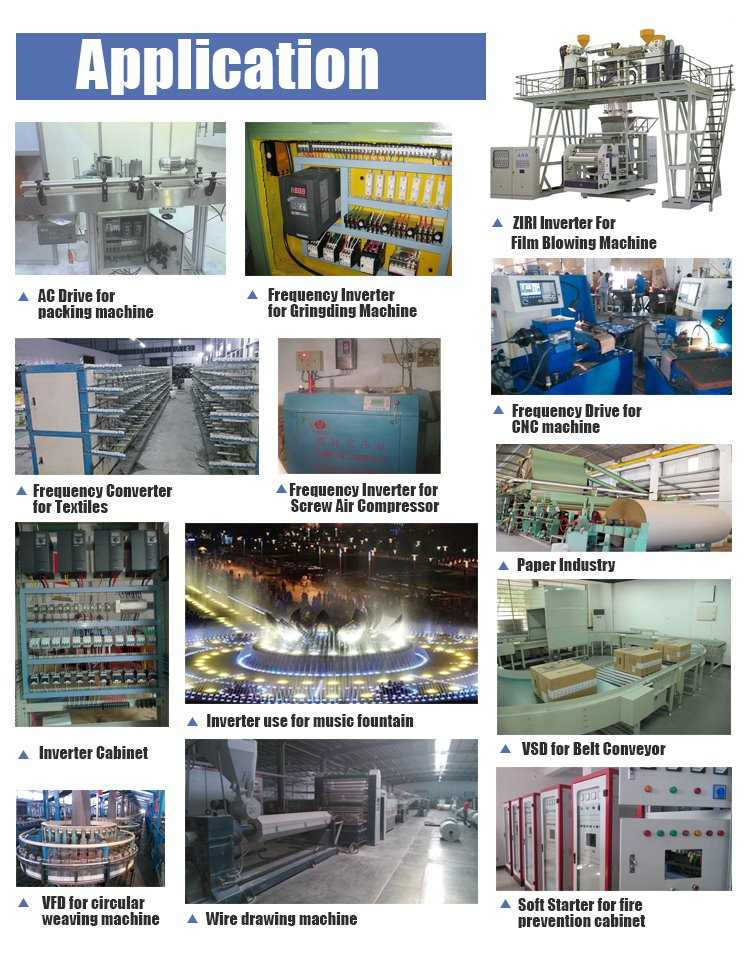

Application Range1.Handing machinery, conveyor.2.Wire drawing machines, industrial washing machines .sports machines.3.Fluid machinery: Fan, water pump ,blower. music fountain .4.Public mechanical equipment: high precision CNC machine tools.CNC machine.5.Metal processing, wire drawing machine and other mechanical equipment .6.Paper-making equipment, chemical industry ,pharmaceutical industry, textile industry ,ect.
