| Prod Model: |
ZVF300-G315/P350T4M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Range: |
315kw |
| Input Voltage: |
380V/440V |
| Input Frequency: |
50/60Hz |
| Output Voltage: |
Three Phase 0~ Input AC Voltage |
| Overload Capacity G Type: |
150% 1minute,180% 1 Second,200% Transient |
| Overload Capacity P Type: |
120% 1minute,150% 1 Second,180% Transient |
| Net Weight: |
340kg |
| Gross Weight: |
380kg |
| Packing Size: |
2080*950*560mm/1PCS |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Main Circuit Type: |
Voltage |
| Application: |
Can Drive and Control The Speed of The Motor |
| Switch Mode: |
Sensorless Vector Control , V/F Control |
| Nature Of DC Power: |
Vairable Frequency Change |
| Function: |
General Type |
| Brand: |
Chziri .OEM |
Product Description
ZVF300 315 kW Variable Speed Drive is new products in ZIRI company.
ZVF300 Series Variable Speed Drive are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors.
- Multiple password protection mode
- Remote control operation keypad, convenient for remote control.
- V/F curve &multi-inflection point setting, flexible configuration .
- Keyboard parameter copy function . easy to set the parameters for multi-inverters .
- Wide industry application . to expand special function according to different industries.
- Multiple hardware and software protection and optimized hardware for anti-interference technology.
- Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
- Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
- Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
- Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the influence of the grid change on load .
- Built-in PID regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
- Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.
Inverter Model | Power
(kW)
G/P | Current
(A) | Dimension (mm) | Figure |

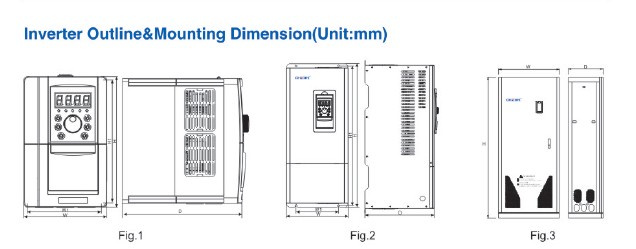

| H | H1 | W | W1 | D | d |
| ZVF300-G0R4S2MD | 0.4 | 2.4 | 185 | 175 | 118 | 108 | 170 | 4 | Fig.1 |
| ZVF300-G0R7S2MD | 0.75 | 7.5 |
| ZVF300-G1R5S2MD | 1.5 | 7.0 | 185 | 175 | 118 | 108 | 190 | 4 |
| ZVF300-G2R2S2MD | 2.2 | 10 |
| ZVF300-G0R7T4MD | 0.75 | 2.5 | 185 | 175 | 118 | 108 | 170 | 4 | Fig.1 |
| ZVF300-G1R5T4MD | 1.5 | 3.7 |
| ZVF300-G2R2T4MD | 2.2 | 5.0 |
| ZVF300-G3R7/P5R5T4MD | 3.7/5.5 | 9.0/13 | 215 | 205 | 145 | 135 | 193 | 4 |
| ZVF300-G5R5/P7R5T4MD | 5.5/7.5 | 13/17 |
| ZVF300-G7R5/P011T4MD | 7.5/11 | 17/25 | 265 | 253 | 185 | 174 | 215 | 5.5 |
| ZVF300-G011/P015T4MD | 11/15 | 25/33 |
| ZVF300-G015/P018T4MD | 15/18.5 | 33/37 | 380 | 360 | 220 | 140 | 230 | 6 | Fig.2 |
| ZVF300-G018/P022T4MD | 18.5/22 | 37/45 |
| ZVF300-G022/P030T4M | 22/30 | 45/60 | 460 | 443 | 260 | 177 | 268 | 6 |
| ZVF300-G030/P037T4M | 30/37 | 60/75 |
| ZVF300-G037/P045T4M | 37/45 | 75/90 | 620 | 603 | 265 | 182 | 300 | 8 |
| ZVF300-G045/P055T4M | 45/55 | 90/110 |
| ZVF300-G055/P075T4M | 55/75 | 110/150 |
| ZVF300-G075/P090T4M | 75/90 | 150/176 | 720 | 702 | 365 | 240 | 340 | 9 |
| ZVF300-G090/P110T4M | 90/110 | 176/210 |
| ZVF300-G110/P132T4M | 110/132 | 210/253 |
| ZVF300-G132/P160T4M | 132/160 | 253/300 | 1190 | | 493 | | 390 | | Fig.3 |
| ZVF300-G160/P185T4M | 160/185 | 300/340 |
| ZVF300-G185/P200T4M | 185/200 | 340/380 |
| ZVF300-G200/P220T4M | 200/220 | 380/420 | 1600 | | 660 | | 415 | |
| ZVF300-G220/P250T4M | 220/250 | 420/470 |
| ZVF300-G250/P280T4M | 250/280 | 470/520 |
| ZVF300-G280/P315T4M | 280/315 | 520/600 |
| ZVF300-G315/P350T4M | 315/350 | 600/640 | 1750 | | 750 | | 470 | |
| ZVF300-G350/P400T4M | 350/400 | 640/690 |
| ZVF300-G400/P450T4M | 400/450 | 690/790 |
| ZVF300-G450/P500T4M | 450/500 | 790/860 | 1900 | | 950 | | 520 | |
Fig.4 |
| ZVF300-G500/P560T4M | 500/560 | 860/950 |
| ZVF300-G560/P630T4M | 560/630 | 950/1100 |
| ZVF300-G630T4M | 630 | 1100 |
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.

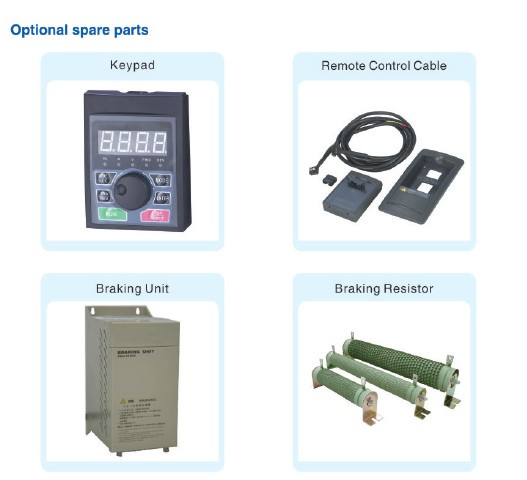

9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
