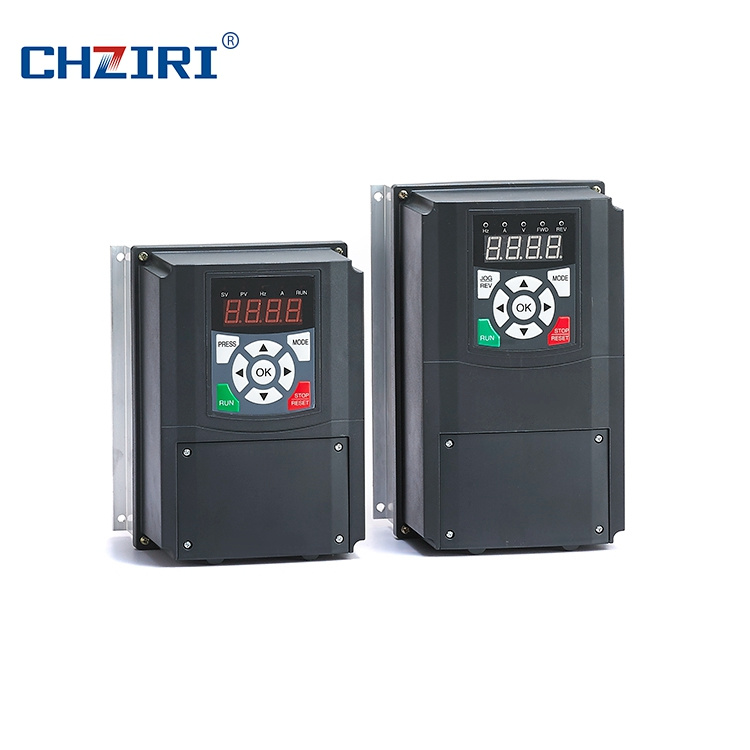

Chziri VFD Single Phas 220V 1HP Zvf200-M0007s2md

Name: Chziri VFD Single Phas 220V 1HP Zvf200-M0007s2md
Brand: all-electronics-online.com
SKU: 712236305
Availability: InStock
Rating: 4.9 (34 reviews)

Price:	US $ 95/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZVF200-M0007S2MD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Mini Type:	Economic
Input Voltage:	Single 220V
Power:	0.75kw
Input Frequency:	50/60Hz
Output Frequency:	0-400Hz
Output Voltage:	Three Phase 0~ Input AC Voltage
Current:	5.0A
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	Chziri

Product Description

ZVF200-M Series variable speed drive

Main Features

ZVF200-M Series variable speed drive is Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The M drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.
16-bit microprocessor controlled PWM output
Automatic torque boost &Slip compensation .
Output frequency : 0.1 ~ 400 Hz.
8-step speed control &7-step process control .
Low-noise carrier frequency up to 15KHZ.
2 accel./decal. Times & S-curve .
Process follower 0-10VDC . 4-20mA.
Communication interface RS485.
Energy saving &Automatic voltage regulation (AVR).
Adjustable V/F curve & Simple vector control
Automatic adjustment of accel./decal. Times.
PID feedback control .
Simple position function .

Application Range:
Packing machine; dumpling machine; treadmill; temperature/humidity control fan for agriculture and aquaculture; mixer for food processing; grinding machine; drilling machine; small size hydraulic lathe; elevator; coating equipment; small size milling machine; robot arm of injection machine (clamp); wood machine (two-side woodworking planer); edge bending machine. Etc.
Inverter Outline Dimension & Mounting Dimension

Inverter Model	Voltage (V)	Power (KW)	Current ( A)	Dimension (mm)						Figure
Inverter Model	Voltage (V)	Power (KW)	Current ( A)	H	W	A	B	D	d	Figure
ZVF200-M0004S2MD	220V	0.4	2.5	141.5	85	130.5	74	113	5	Fig.1
ZVF200-M0007S2MD		0.75	5.0	141.5	85	130.5	74	113	5
ZVF200-M0015S2MD		1.5	7.0	151.0	100	140.0	89.5	116.5	5
ZVF200-M0022S2MD		2.2	10	151.0	100	140.0	89.5	116.5	5
ZVF200-M0007T4MD	380V	0.75	2.3	151.0	100	140.0	89.5	116.5	5
ZVF200-M0015T4MD		1.5	3.7	151.0	100	140.0	89.5	116.5	5
ZVF200-M0022T4MD		2.2	5.0	151.0	100	140.0	89.5	116.5	5
ZVF200-M0037T4MD		3.7	8.5	220.0	125	205	110	166.5	6.5	Fig.2
ZVF200-M0055T4MD		5.5	9.5	220.0	125	205	110	166.5	6.5	Fig.2

FAQ
1.   Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2.   What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3.   What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4.   What's your warranty terms?
We offer 12 months warranty time .
5.   Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6.   Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7.   How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .
8.   Can you sell spare parts ?
If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .

1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.

2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.

3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.

4. CHZIRI Electrical can also provide clients with customized control panel. We

Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.

5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.

6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.

7. CHZIRI Electrical also go aboard to attend the fair every year.

8. OEM service can be offered.

9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.

10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
