Circuit Board Control Aluminum Board Fr4 Printer 4 Layer PCBA Integrated Electronic Ru 94V0 RoHS PCB Board Assembly Factory

Name: Circuit Board Control Aluminum Board Fr4 Printer 4 Layer PCBA Integrated Electronic Ru 94V0 RoHS PCB Board Assembly Factory
Brand: all-electronics-online.com
SKU: 763373905
Availability: InStock
Rating: 5 (74 reviews)

Price:	US $ 0.12-0.21/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fl512
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Thickness:	1.6mm
Copper Thickness:	1oz
Material Type:	Fr4
Surface Treatment:	HASL Lead Free
Solder Mask:	Green, Red, Blue, Black
Silk Screen Color:	White
Board Layer:	1 Layer
Shipping Type:	DHL, UPS, TNT, EMS, FedEx etc
Packing Type:	Carton + Vacumm
Lead Time:	5-7 Days
Dielectric:	FR-4

Product Description

Circuit board Control Aluminum Board Fr4 Printer 4 Layer Pcba Integrated Electronic ru 94v0 Rohs Pcb Board Assembly Factory

Commodity Introduction

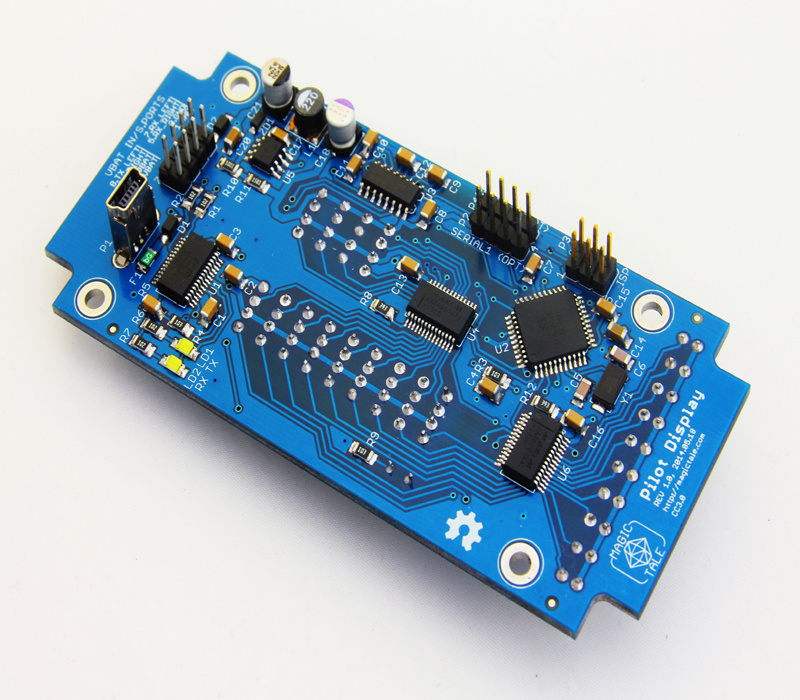

This is a type of FR-4 PCB for the application of electronic products. It's a 2 layer board at 1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Parameters & Data Sheet

Board dimension	110x 23mm
Board Type	Double Sided PCB
Board Thickness	1.6mm +/-0.16
Board Material	FR-4
Board Material Supplier	ITEQ
Tg Value of Board Material	135ºC

Surface Finish	HASL Lead free
RoHS Required	Yes
Surface Cu thickness	35 um (1oz)

Color of Silkscreen	White
Number of Silkscreen	1
Solder Mask Colour	Green
Number of Solder Masks	2
Thickness of Solder Mask	13um

Through hole assembly	YES
Sides of through hole assembly	2
SMD assembly	YES
Sides of SMD assembly	2

Total quantity of components	15
Quantity of SMT	8
Quantity of Through holes	7
Applications
RoHS Required	YES

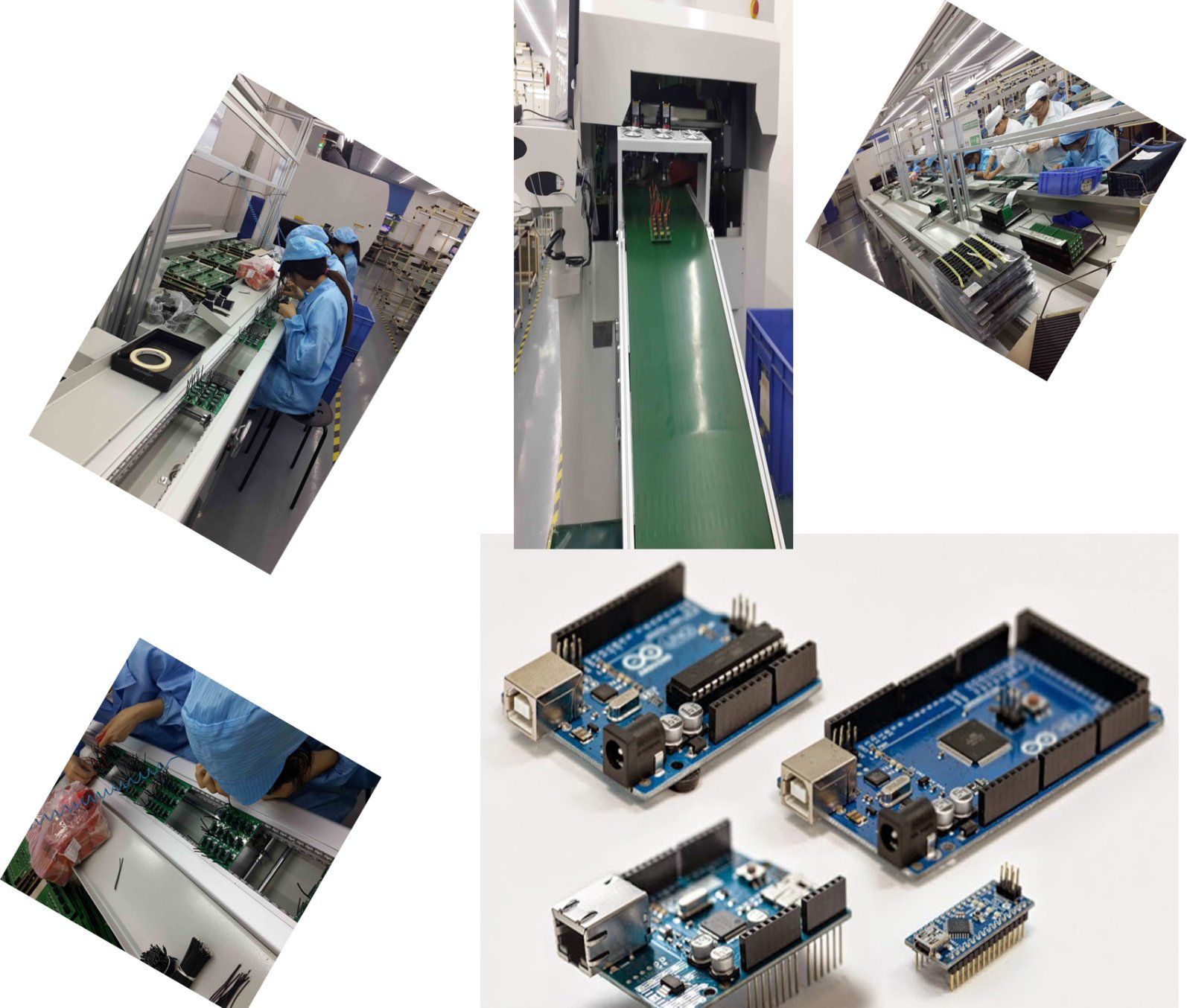

Workshop:

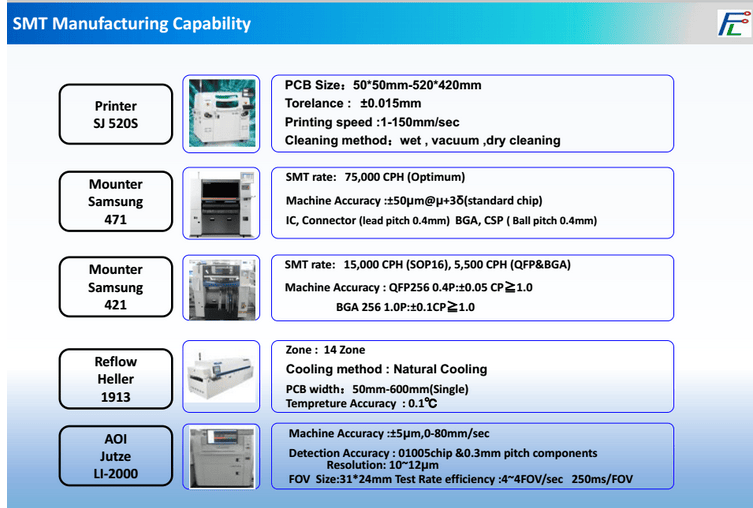

Capability

Payment&ship

Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
