Circuit Board Design and SMT for LED Light

Circuit Board Design and SMT for LED Light
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T

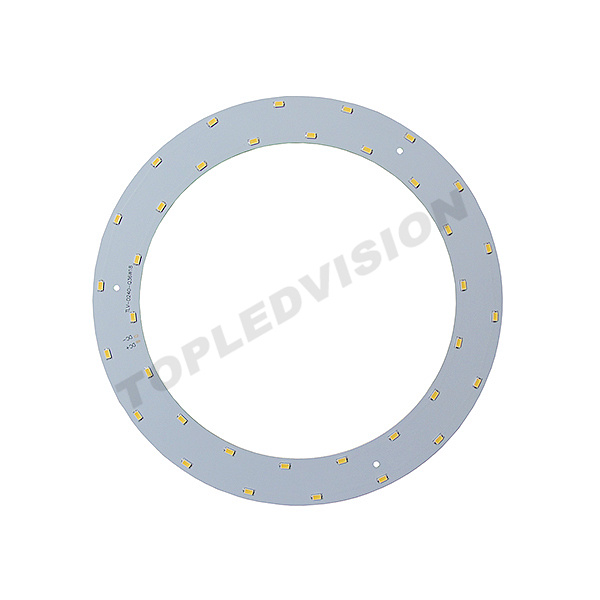

Prod Model: TLV-D240-Q36W18
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 240mm Diameter
Lumen: 1700lm
Input: 54-57V DC
Power: 18W
Installation: Screw Mounted, Magnet
Application: Lighting Fixture, Special Lighting
Mode Of Production: SMT
Metal Coating: Copper
Base Material: Al/Fr-4c

Product Description

We provide led circuit board design and smt processing for led light, include circuit design by customer, mounting leds and assembly working. Led circuit board as led light source with energy saving, equal light, high lumen output, low power consumption, low decline rate. Be used for all kinds of commercial lights, house lights, background lighting, box lighting, and special lights, etc. The board working stability, long lifespan and cost-effective.

Led circuit design:
We design the circuit by customer lumen, watt, size, input voltage and customer driver specs.

Led circuit board:
A, quality smd led with high luminous efficiency and low light decline. Support smd3528 led, smd2835 led, smd5630 led, smd5050 led, smd3014 led, 1w/3w high power led.
B, use mcpcb or fr-4 pcb for led circuit board, it depend on different lights requirement.
C, warm white, nature white, daylight, cool white color and other colors support, cri>75ra.
D, high speed smt machine mounting leds, it is accurate and short delivry time.
E, strict testing and material control, make sure all led board quality before shipping.

Safety, long working time, easy installation
A, dc low working voltage, safe for the human body.
B, mounted or magnet installing way, it is easy and fast.
C. More than 25000hours working lifespan.
Topledvision photonics Co., Ltd is specialized in LED display and LED lights, we research, develop, design, manufacture, sales and service of LED lighting and LED display. We aim to researching and developing the new technology and provide cost-effictive and high-quality LED products.

Company owns engineers, R&D team, manufacturing workers and services. Topledvision owns two main LED product lines, LED display and LED lighting.

LED lights

LED lights as our important products be sold to all over the world, our LED lights are energy saving, cost-effective, reliable, environment friendly and long lifespan.

We design and produce LED strip, LED tube, LED panel light, LED ceiling light, Special light ect, for different situations, like hotel, office, shopping centre, hospital, school, bar, stage, showcase, factory/garage/warehouse...

LED sign and LED Screen

LED Signs are more easy and affordable and effective way to bring customers to your business, they can be used in Chain stores, hotel, taxi, police, cafe, bar, club, restaurant, etc.

For ture color LED display lines include indoor SMD screen and outdoor LED displays, pixel pitch from 3mm-16mm, include rental display, advertising display, football/basketball stadium display, stage background display, traffic guiding display and special-shaped display.
