Circuit Board Panel Tactile Control Keypads Membrane Switch

Name: Circuit Board Panel Tactile Control Keypads Membrane Switch
Brand: all-electronics-online.com
SKU: 737889535
Availability: InStock
Rating: 4.7 (28 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC-MS-O17
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Exterior:	Good Looking
Touch Feeling:	Excellent Touch Feeling
Material:	PET
Type:	Convex
Application:	Machine

Product Description

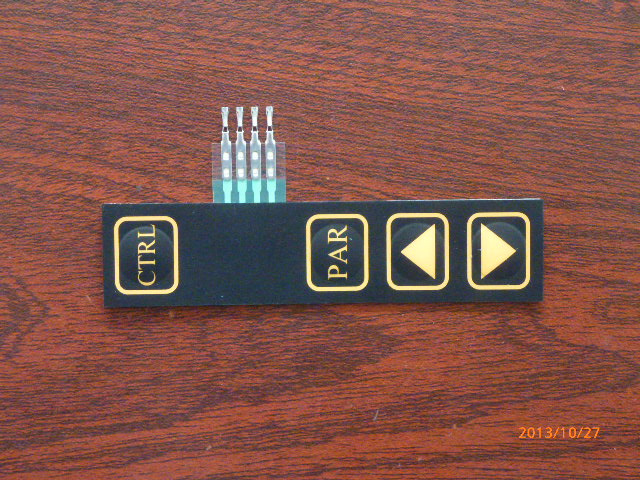

Circuit Board Panel Tactile Control Keypads Membrane Switch

Description:
membrane switch
1) Membrane Switch with Keypads
2) Silk Screen Printing
3) Touch feeling keys with embossing
4) Over 1 million life cycles
5) Metal dome or silicone keypad is also available.

Materials:
1 Material: PET /PC

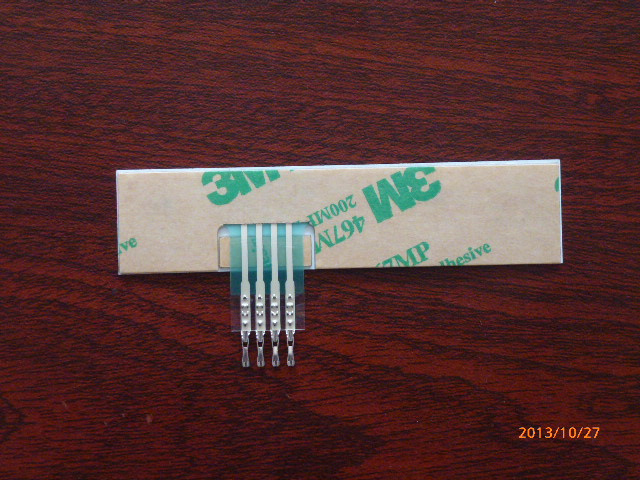

2 Adhesive: 3M467 & 3M468or as per request
3 High life time :>1million times
4 Pass: ISO9001:2008 RoHS.SGS
5 High quality

Commercial terms:
MOQ: 50pcs
Payment Terms: T/T or L/C
Mold Charge: 100% in Advance
Sample Time: 9-10 days after drawing approval.
Lead Time for production: 15-22 days after sample approval

Applications:

Our membrane switches are widely used in:

Medical Equipment
Telecommunications apparatus
Telephone systems
Household appliances
Security systems
Industrial controls

Company Advantage:

Top managers are experienced in the same field for many years.
Professional staff and workers.
Strong R&D capability
Quick Delivery
Competitive price
Two factories are available for large orders
Expert sales team and good customer service.

Place of Origin:	Dong Guan China
Brand Name:	Foundation
Model Number:	HC-MS-017
Certification:	ISO9001:2008, SGS,Rohs

wire lead resistance:	< 1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0 ~ 30V DC	Operation Temperature:	104°F~158°F
Rated Voltage:	< 50V, DC	Operation Humidity:	at104°F,<98%RH
Insulation resistance:	< 100MΩ,250V DC	Dome springback time:	< 5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.

We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.

Our main product range are:

1)Membrane Switch and overlay

2)Flexible printing Circuit/ FPC/EL

3)Silicone products including silicone rubber key pad. And various silicone Rubber products.

4) Metal nameplate series

5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector

We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.

We sincerely hope can cooperate with you in the coming future!
