Circuit Breaker 1A 40A Dpn MCB with Ce CB and RoHS Certificate

Prod Model:	EKM1-40N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Frequency:	50/60Hz
Pollution Degree:	2
Alarm Contact:	Yes
Shunt Release:	Yes
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	TUV
Poles Number:	1p+N

Product Description

EKM1-40N Mini Circuit Breaker (MCB)

1. Specification


Standard	IEC60947-2
Electrical Feature
Rated current In	6, 10, 16, 20, 25, 32, 40A
Poles	1P+N
Rated voltage Ue	240/415V
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated breaking capacity	4500/10000A
Energy limiting class	3
Rated impulse withstand voltage(1.2/50) Uimp	4000V
Dielectric test voltage at ind. Freq. For 1 min	2000V
Pollution degree	2
Thermo-magnetic release characteristic	B, C
Mechanical Feature
Electrical life	3000
Mechanical life	6000
Protection degree	IP20
Reference temperature for setting of thermal element	30 º C
Ambient temperature (with daily average≤ 35º C)	-5 º C...+40 º C
Storage temperature	-25 º C...+70 º C
Installation
Terminal size top/bottom for cable	25 18-3AWG
Terminal size top/bottom for bus bar	25 18-3AWG
Tightening torque	2.5 N*m
Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device
Connection	From top and bottom
Combination with Accessory
Combination with accessories	Auxiliary contact, Shunt release, Under voltage release, Alarm contact

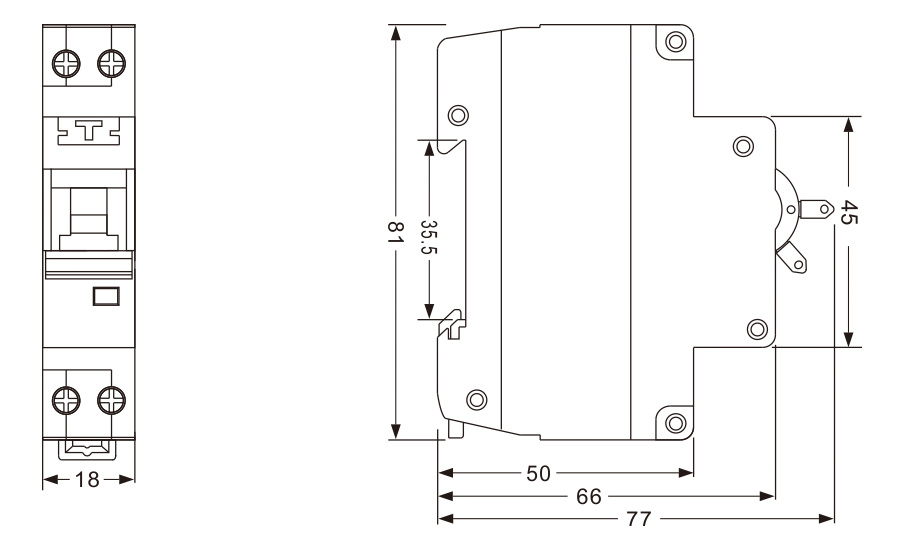

2. Overall and Installation Dimension(mm)



3. Certificates



4. Feature Products



5. Company Profile

Changan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.

6. Our Services

A. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B. After-service:
We pay high attention to your feed back after receive the goods.
We provide 18 months warranty after goods arrive.
We positively revert your complain within 48hours.

C. Professional Sales:
We value every inquiry sent to us, ensure quick competitive offer.
We cooperate with customer to bid tenders. Provide all necessary documents.
We are a sales team, with all technical support from engineer team.
