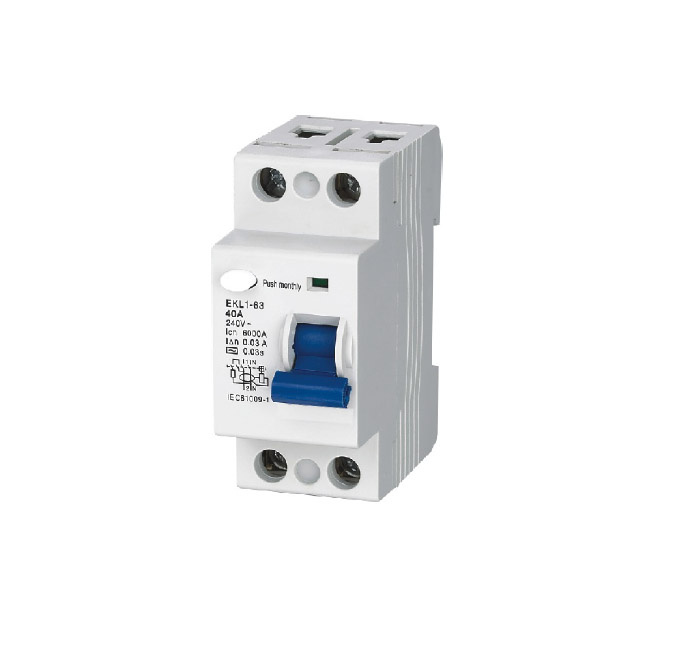

Circuit Breaker with 63A 2p (EKL1-63)

Prod Model:	EKL1-63
Markets:	Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	2
Certification:	CCC
Structure:	RCCB

Product Description

EKL1-63
(Electro-magnetic Type)RCCB
Residual Current Circuit Breaker
Technical Data
Electrical Features
Type (wave form of the earth leakage sensed): AC, A, AC~S, A~S
Rated current In: 25, 40, 50, 63A
Poles: 2P, 4P
Rated voltage Ue: 240/415V
Rated sensitivity I n: 0.03, 0.1, 0.3A
Insulation voltage Ui: 500V
Rated residual making and breaking capacity
I m: 500A(In=25A/40A) 630A(In=50/63A)
Short-circuit current Inc=I c: 4500/6000A
SCPD fuse: 6000
Break time under I n: 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 6, 000A
Dielectric TEST voltage at ind. Freq. For 1min: 2.5kV
Pollution degree: 2
Mechanical Features
Electrical life: 2, 000
Mechanical life: 2, 000
Fault current indicator: Yes
Protection degree: IP20
Ambient temperature (with daily average 35 ): -5...+40
Storage temperation: -25...+70
Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 25mm2 18-3AWG
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2.5 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
