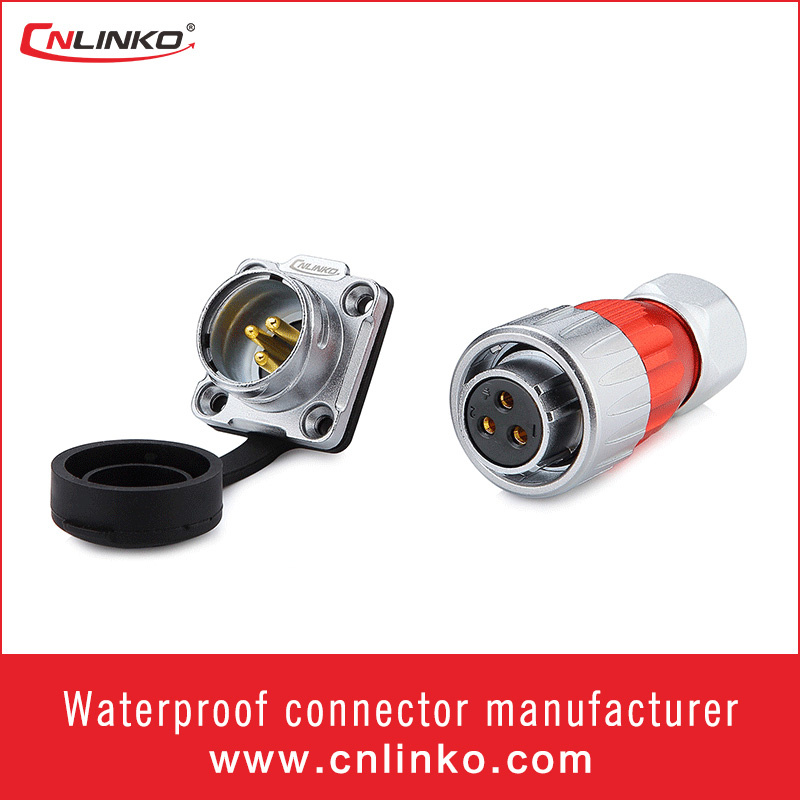

Circular Cable Power Waterproof Connector M20 with 3 Pin

Name: Circular Cable Power Waterproof Connector M20 with 3 Pin
Brand: all-electronics-online.com
SKU: 775474695
Availability: InStock
Rating: 4.8 (88 reviews)

Price:	US $ 2.6-3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

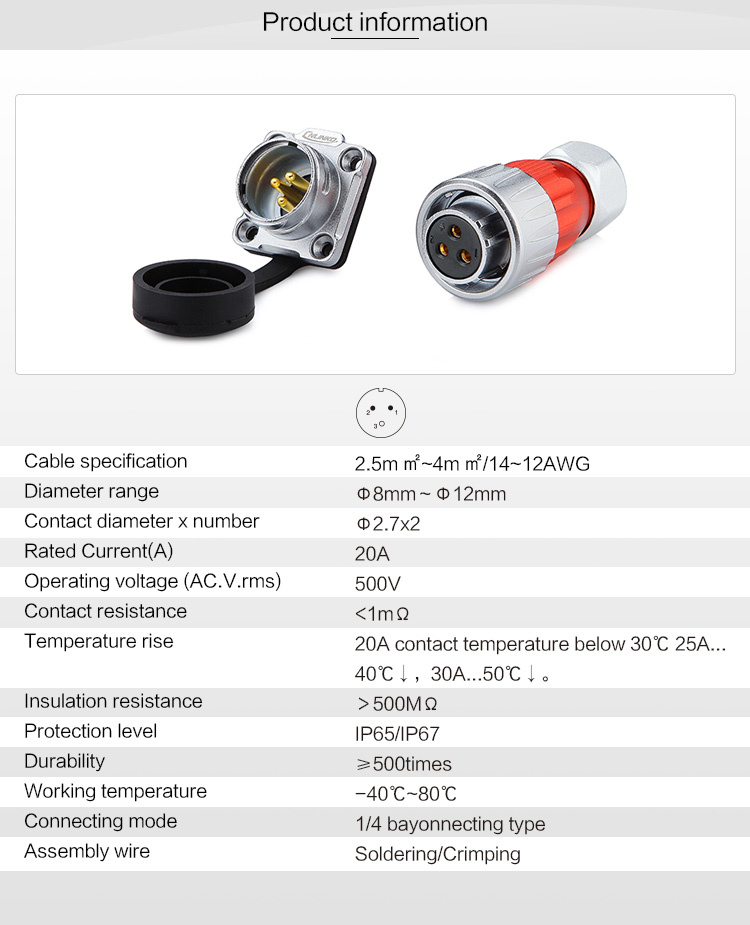

Prod Model:	DH-20-C03PE-01-001, DH-20-J03SX-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Specification:	14-12AWG
Diameter Range:	8mm-12mm
Contact Diameter*Number:	2.7*3
Operating Voltage:	500V
Protection Level:	IP65/IP67
Durability:	More Than 500 Times
Connecting Mode:	Plug/Unplug
Assembly Wire:	Solder
Copper Needles:	Copper Alloy(Gold-Plated 4u)
Flammability Rating:	UL94-V0

Product Description

1. With alloy protective materials to reduce external electromagnetism andsignal Radio frequency interence.
2. With military standard screw type locking.
3. Colors are optional to be used in different environment.
4. Metal and silica gel cover are optional to be used in different environment.
5. 2/3/4/5/7pin for power, 9/12pin for signal.
6. Rated current;5A/12A/20Arms.
7. Waterproof level:IP65/IP67.
8. Certification: ISO9001, CE, UL, ROHS,CCC

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
