Circular Cable Power Waterproof Connectors with 3 Pins

Name: Circular Cable Power Waterproof Connectors with 3 Pins
Brand: all-electronics-online.com
SKU: 776860085
Availability: InStock
Rating: 4.5 (146 reviews)

Price:	US $ 4.12/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DH-20-C03PE-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Specification:	2.5-4mm2 / 14-12AWG
Diameter Range:	8mm-12mm
Contact Diameter*Number:	2.7*3
Operating Voltage:	500V
Protection Level:	IP65/IP67
Durability:	500 Times
Connecting Mode:	Screw Locking
Assembly Wire:	Solder
Copper Needles:	Copper Alloy(Gold-Plated 4u)
Flammability Rating:	UL94-V0

Product Description

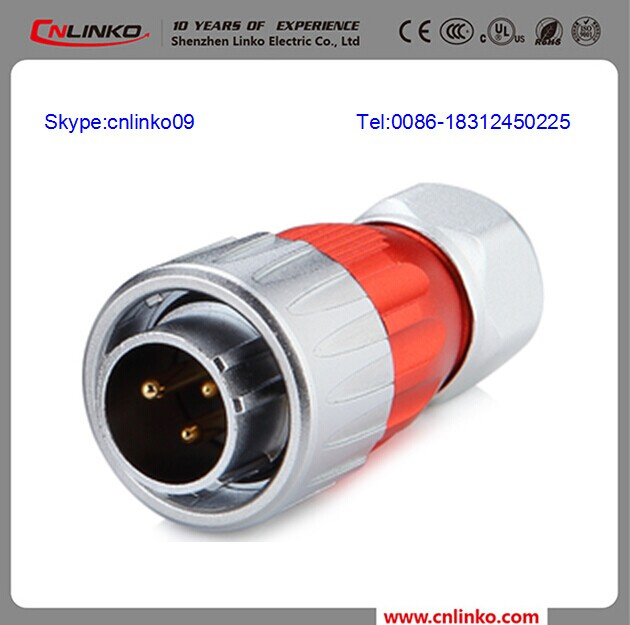

Circular Cable Power Waterproof Connectors with 3 Pins

It is widely used in
·New energy
·LED
·Industrial control product
·Automotive
·Security product
·Power Supply
·Electric Vehicle
·Solar Energy
·IPC
·Various Mold
It is high performance and competitive price.
Welcome OEM/ODM.

Specifications:
DH20 3pin male plug

Connecting mode	Screw locking
Protection level	IP65/67
Cable specification	2.5mm ² ~ 4mm ² /14~12AWG
Diameter range	Φ8mm ~Φ12mm
Contact diameter ×Qty	Φ2.7x3
Current rating(A)	20A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	2500V
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Prevent the combustion level	UL94-V0
Temperature rise	12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C
Color	Red
Protective housing	PBT Material
Install method	1/4 Quick bayonet
Material
Shell&Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Assembly wire	Solder
Copper needles	Copper alloy(gold-plated)
Waterproof	Silica gel

Packaging & Shipping& Contact information:

Packaging: 10pcs/small box, 100pcs/middle box, 240pcs/master box
Shipping: by express,by air or by sea
Lead time: 3-5 working days after confirmed the order quantity

Contact information:

Contact Person: Eunice Tan
Cellphone: 0086-18312450225
Website:www.cnlinko.com

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
