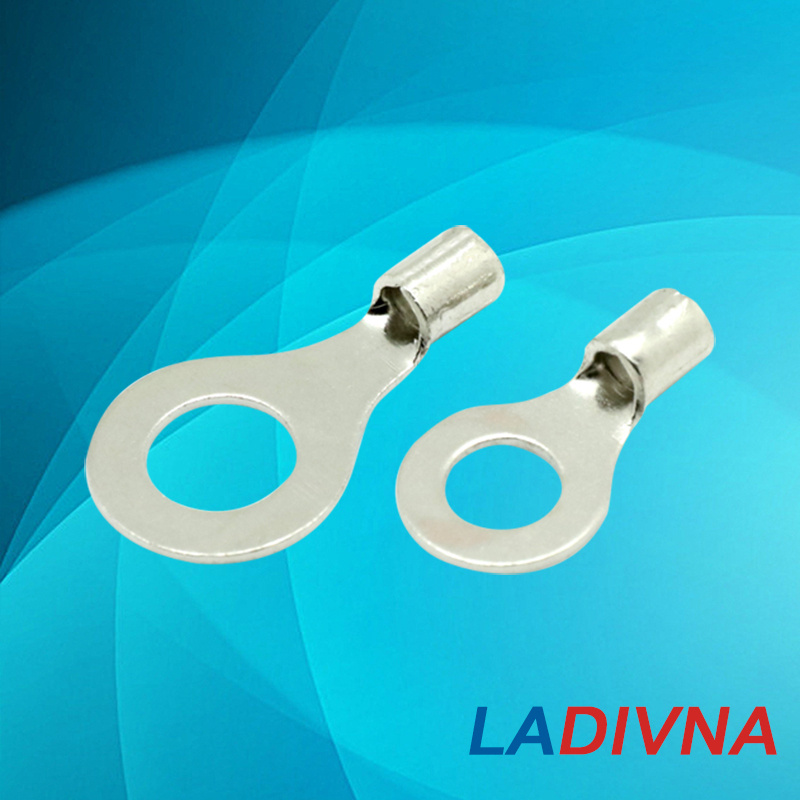

Circular Naked Terminal (TYPE TO)

Name: Circular Naked Terminal (TYPE TO)
Brand: all-electronics-online.com
SKU: 687581655
Availability: InStock
Rating: 4.6 (92 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper

Product Description

Circular naked terminal(TYPE TO)
Cable size: 4~6mm2(A. W. G. 12~10)
Max current: Imax=48A
Material: Purple copper
Thickness: 1.0mm

Item No	USA screw	screw dia. d2(mm)	Dimension(mm)
Item No	USA screw	screw dia. d2(mm)	B	L	F	E	Dφ	dφ
RNB 5.5-3.5	#6	3.7	7.2	15.7	5.9	6.8	5.6	3.4
RNBS 5.5-4	#8	4.3	7.2	15.7	5.9
RNBL 5.5-4	#8	4.3	9.5	19.8	8.3
RNB 5.5-5	#10	5.3	9.5	19.8	8.3
RNB 5.5-6	1/4	6.4	12.0	25.8	13.0
RNB 5.5-8	5/16	8.4	15.0	28.0	13.7
RNB 5.5-10	3/8	10.5	15.0	28.0	13.7
RNB 5.5-12	1/2	13.0	19.2	32.4	16.0

Yueqing Divna Electric Co., Ltd & Yueqing Divna trade Co., Ltd is the subsidiary companies of Divna D. O. O. (Croatia). Yueqing Divna Electric Co., Ltd is a manufacturer of kinds of terminals, power plug, pin clips and pipe clamp. In the recent years, we start to do OEM survice for our customers which make them more competitive in their local market. Currently, our mainly market include Euro, New Zealand & Australia, USA, Asia, etc.

Divna D. O. O. (Croatia) is the headquarter company which was founded more than 10 years. We mainly do reworking process & business service for Euro market.

Divna D. O. O. (Croatia) is the headquarter company which was founded more than 10 years. We mainly do reworking process & business service for Euro market. Currently, our customers are mainly from southern Euro & middle Euro.
