Circular Small Connectors (Y4, Y4M)

Name: Circular Small Connectors (Y4, Y4M)
Brand: all-electronics-online.com
SKU: 139767
Availability: InStock
Rating: 4.8 (79 reviews)

Price:	US $ 2.2-2.5/Set
Trade Terms:	FOB
Min Order:	10/Set
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y4, Y4M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Volume:	Small
Value:	Cheaper
Contacts:	3,4,5,7
Coupling Mechanism:	Threaded Connection
Brand:	Kaipu
Application:	Electrical Signal
Classification:	Male & Female
Type:	Low Frequecie

Product Description

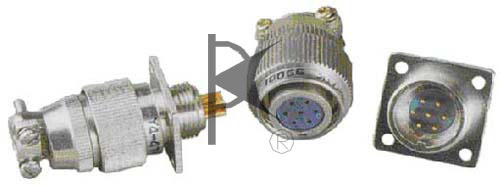

Y4m series circular connectors have the features of small size, light weight, convenient application with threaded-coupling connection. They are widely used for the electrical connection between electrical equipments and instruments.

Product Ordering
Y 4M - 3 Z J B M
1 2 3 4 5 6
1. Name of series: Y4 Mseries circular connectors
2. Number of contacts: 3, 4, 5, 7
3...T— Plug, Z— Receptacle
4. Type of contacts: J— Pin, K— Socket
5. Termination: L— Cable, B— Square flange
6. M— Receptacle sealing

Dimensions

Contact arrangement(Face view pin insert):

Temperature	Relative humidity	Atmosphere	Vibration	Shock	Endurance
-40°C~ +125°C	(92~98)%, at40 + 2°C	101.33KPa~6.67Pa	10~2000Hz,196m/s²	392m/s²	500cycles

Contact Ø	Current	Voltage	Contact resistance
Ø0.8mm	3A	250V	≤8mΩ

Environment	Voltage proof	Insulation resistance
Normal	750V	≥1000MΩ
High temperature	700V	≥500MΩ
Moisture	500V	≥50MΩ
Low pressure	200V	-

Dimension

Contacts	A	B	C left	D=G	E=F	G	H
3,4	Ø6	26.5	M10×0.75	12	16	12	Ø1.8
5,7	Ø8	27.5	M12×1	13.2	18	13.2	Ø2.2
