| Prod Model: |
m12 |
| Connector Type: |
Sensor Connector |
| Series: |
M12 Connector |
| Coupling: |
Thread |
| Orientation: |
Straight/Right Angle |
| Contact Count: |
3/4/5/8/12 |
| Body: |
Brass |
| Plating: |
Nickel |
| Contact: |
Brass, Gold Plating |
| Protection Degre: |
IP67 |
| Warranty: |
12 Months |
Product Description

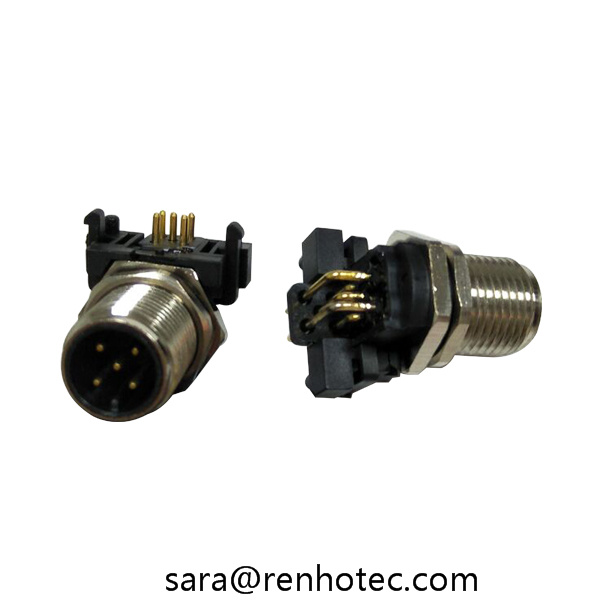

Circular Waterproof Connector Right Angle M12 5Pin PCB Mount Socket
M Series Circular Connectors offer a robust waterproof cable to panel interface for demanding end-use applications.
The series provides IP67/68 Performance in both mated/unmated conditions. The M Series is available in 12mm, 8mm, or 5mm diameters and in pin counts ranging from two to eight positions. The series offers up to 5A contact rating. Renhotec M12 and M8 connectors conform to industry standard bus specifications and are intermatable with a variety of competitive products.
Main applications of Renhotec M12 sensor connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor LED lighting and marine application.
Product Features:
High quality M12 Sensor connectors designed for industrial use.
M12 circular connector with M12*1.0 screw locking equivalent to Binder,Phoenix,Lumberg automation.
Meet IEC 610-2-101 standard.
IP 67 waterproof, resistant to oils and chemical.
M12 thread Locking.
Technical Specification
| Material and Finish |
| shell and contact | Copper alloy |
| Insulator and PG9 screw | Plastic |
| Cable clamp | Copper Alloy |
| Contact Plating | Gold plated |
| Other Metal Plating | Nickel Plated |
| Electrical |
| Rated Voltage | 60V |
| Rated current | 4A/40°C |
| Contact resistance | 8m ohm |
| Rated impluse withstand voltage | 2500V |
| Mechanical |
| Connecting type | Thread with M12 |
| Protection Degree | IP67 |
| Mechanical operation | 500 mating cycles |
| Suitable cable | OD:4mm-6mm/6mm-8mm |

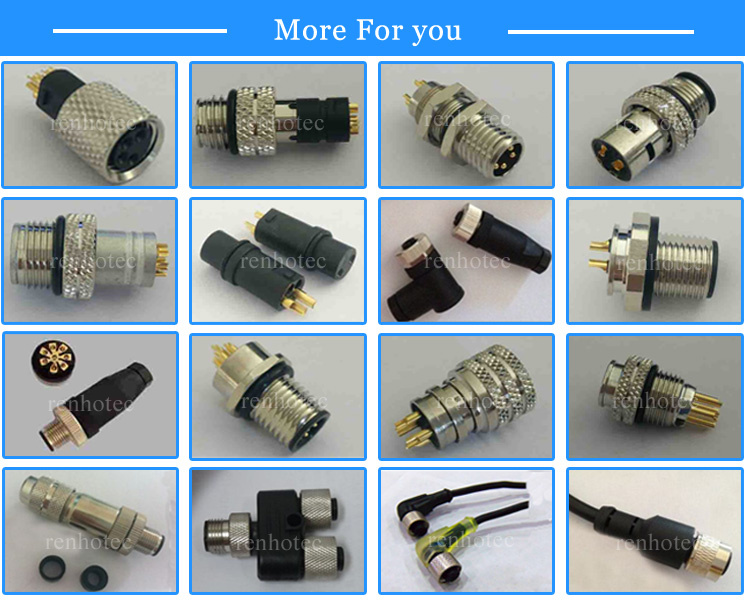

More Selection for M series Sensor Connectors:
Package:
Normal packing: 100 pcs per tray or polybag ,800pcs per carton.
Private packing and label service are available as per your requirement.
Shipment:
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
Payment:
We support payment of T/T, Paypal, West Union, etc.
FAQ:1. When can I get the quotation?
All of inquiries will be replied within 12 hours. If it is urgent, we can be reached at skype , 24 hours online.
2. What's your MOQ?
Normally our MOQ is 500pcs. Small order is also welcome.
3. What about the lead time for production?
3-5 days for sample, 10-15 days for bulk order.
4. How do you guarantee the quality?
All of the raw materials we used are purchased from qualified suppliers with certification approved, we promised our connectors are strictly produced accoring to UL, ROHS standards. QC will inspect goods before shipping to ensure the quality.
5. What's the warranty?
One year, 12 months.
6. How to proceed an order with you?
Please contact us by email or skype, then we will confirm you product details. If all confirmed, Proforma invoice will be available for you.
