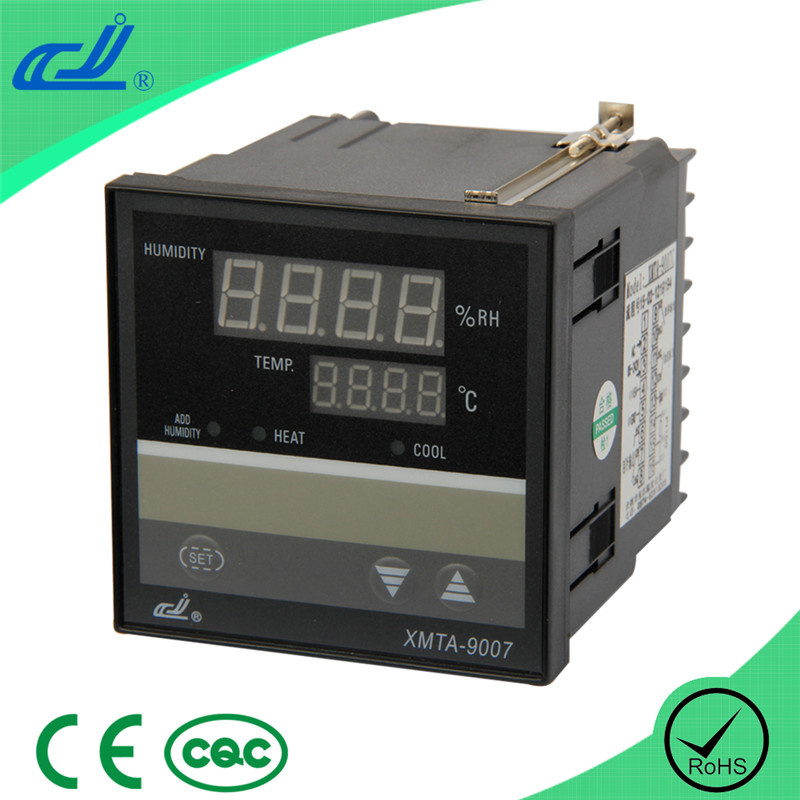

Cj 2-Row Digital Intelligent Temperature & Humidity Control Meter (XMTA9007C)

Prod Model:	XMTA-9007C
Size:	96*96

Product Description

The XMT-9007C temperature & humidity meter is an intelligence instrument based on the computer

technique. It adopts a 2-row digital tube system to make a synchronous display of both the humidity

value and that of the dried temperature measured. Every datum concerned used for control purpose can

be keyed in from the top panel which is accompanied by an actual time display. For the humidity

measurement sensor a purpose PT100 may be selected. Humidity select a high molecular sensor, this

instrument has time proportional regulating or 2-digit differential control for a free setting of the upper

limits of the temperature, and has 2-digit differential control for a free setting of the low limits of the

temperature, in addition, this instrument also has a 2-digit control system for a free setting of the upper

and lower limits of the humidity, representing an instrument with high accuracy and high integrity for

measuring and controlling over both the temperature and humidity.

Main Technical Specifications
1. Accuracy: Temperature measurement accuracy +0.5%F. S+1.0character Humidity measurement accuracy + 0.2%F. S+1.0 character

2. Dry temperature measurement range: 0-100

3. Time proportional range: 1%-10%

4. Effective humidity measurement range: 5%-100%RH

5. Contact output capacity: Heating relay: 250VAC, 30A, Restrelays: 250VAC 3A

6. Data-retention time at power breakage: More than 10 years

7. Working power: 220VAC + 10% 50Hz Power consumption: Less than 5W

8. Normal working ambience: Temperature: 0-50, Relative humidity: 35%-85% corrosive gas-free space

9. After the power is connected, please, check if the wire of the sensor is broken, or if a case of short circuit or other problem, such as wrong connection, etc. In case"-----"or "----", or "100% humidity" is always displayed in both the upper and lower row windows respectively.

10.external dimensions: 96*96
