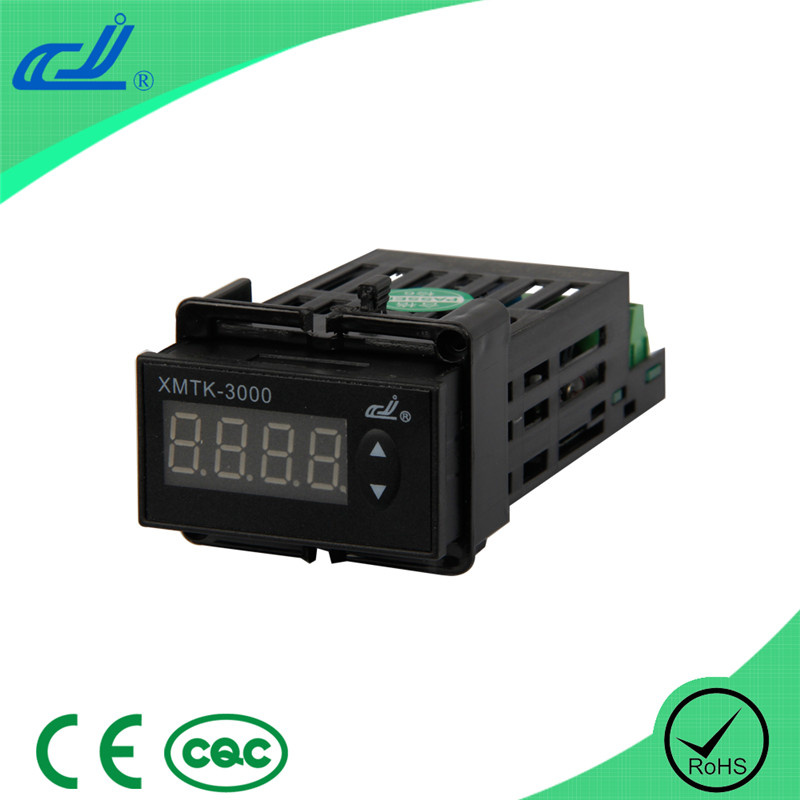

Cj Digitaltemperature Controller (XMTK-3000)

Name: Cj Digitaltemperature Controller (XMTK-3000)
Brand: all-electronics-online.com
SKU: 681694205
Availability: InStock
Rating: 4.4 (45 reviews)

Price:	US $ 14.5/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMTK-3000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range:	K
Usage:	Temperature Control
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type

Product Description

Technical standard:
single signal input: K,E,J,T,B,S,PT100,CU50
1.Measure range:K(0~2000ºF)
2.display precision:±1%F·S
3.Control method:PID,ON-OFF control(when P=0 availability)
4.Relay output contact capacity:resistance load 5A;
5.Working power:AC 90V~242V  50/60Hz       power:<4W
6.Working condition:Environment Temperature: 0 to 50ºC,  Humidity: ≤85%RH
9. External dimension(mm): 24× 48× 90 Installation hole: 23× 45

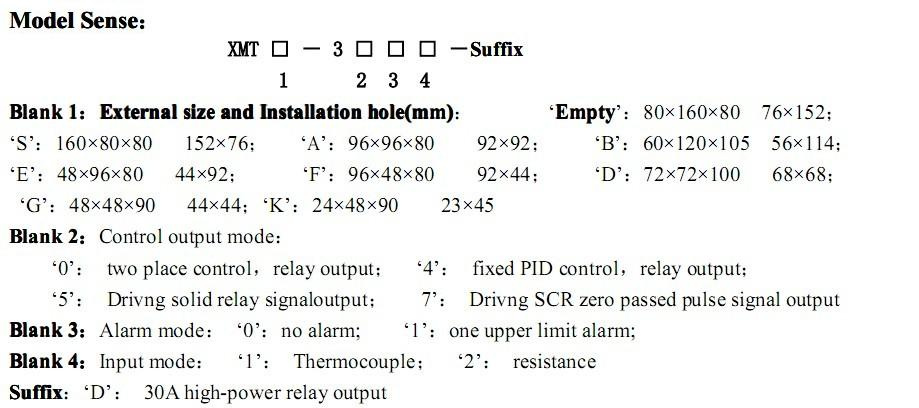

Model Sense

Connection scheme:

NO.	code	name	range	explain	default
0	SP	Appointed value	All range	Press∧or∨key long time to setting	-
1	AL	Upper limit alarm	All range	When measure value>setting value ,it has alarm output	-
2	SC	Measure error	±20.0	Measuring value can be modified through increasing or decreasing this data	0
3	P	proportion	0~125	Proportion area = P x 20, When the P↑, proportion function↓, clash↓, but too little will add the heating time When P=0, the instrument is ON/OFF control	8
4	I	Integral time	0~999S	Integral time too big will leave something the system , if too little it will have	240
5	d	Differential time	0~250S	-	30
6	t	Control cycle	1~120S	-	10
7	Hy	Deadband	0.1~50.0	ON/OFF control only availability	1.0

Packaging Details

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )
