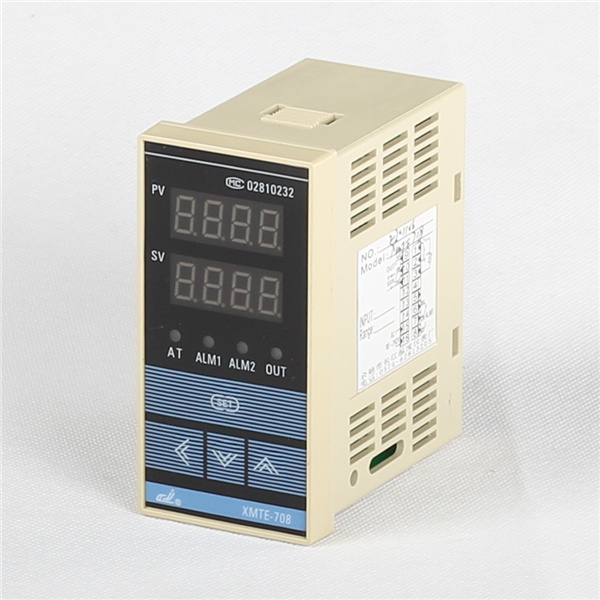

Cj Dual Display Digital Temperature Indicator (XMTE-708)

Prod Model:	XMTE-708
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	48*96

Product Description

Temperature controller
Intelligence dual row 4-LED diSplay
Operated with 4-key
Control method: On/off, automatic regulation

Main technical specification

Measurement deviation: ≤±0.5%F·S±1B
Cold end compensating deviation: ≤±2.0ºC
Sampling cycle: 0.5S
Control cycle: relay output 2~120S , other is 2S.
Relay output contact capacity: AC220V/5A (resistance load) or AC220V/0.3A (perceptual load)
Driving controllable pulse output: ≥3V scope, ≥40us width's over zero or trigger contact pulse
Driving solid relay signal output: driving electric current≥15mA, voltage≥9V.
Continuous PID  : 0~10mA (load 500±200Ω), 4~20mA (load 250±100Ω),
or 0~5V (load≥100kΩ) , 1~5V (load≥100kΩ)
Power supply: AC85V~242V, 50/60Hz
Working condition: temperature 0~50.0ºC, relative humidity≤85%RH, without corrode and strong electric radiation.

Product code:
           XMT (1)  7 (2)   8  (3)

(1) Meter faceplate and Installation dimension(mm):
Blank: 160×80×80    152×76;           A: 96×96×80      92×92;
D: 72×72×100     68×68;           E: 48×96×80       44×92;
F: 96×48×85      92×44;           S: 80×160×80      76×156;
G: 48×48×110     44×44

(2)Alarm:
"0": no set alarm       "1or2": one alarm        "5": voice alarm
"3": two group alarm (upper limit, lower limit, positive deviation alarm and negative deviation alarm discretionary setting)

Input signal:"8": Free exchange of the input signal

(3)Control method:
Blank:  Relay contact output       "A": Single-phase over-zero trigger adjustment
"A3": Three-phase over-zero trigger adjustment    "B": Single-phase shift-phase trigger adjustment
"G": Solid state relay output                    "C": 0-10mA or 4-20mA constant electric current output

Code setting mode

Series	Code	Name	Setting range	Manual	Ex-Factory
0	SP	Appointed data	Determined by P-SL P-SH	Output corresponds to "OUT" indicator light	50.0
1	AL-1	Alarm 1	Determined by P-SL,P-SH when the upper and lower limit alarm, it is0~50.0 when the positive deviation alarm and negative deviation alarm	please refer to ALP1 Corresponds to "ALM1" indicator light	300
2	AL-2	Alarm 2		please refer to ALP2 Corresponds to "ALM2" indicator light	100
3	P	Proportion modulus	0~100	When the P↑,the proportion and differential function↓;If the P↓,the proportion and differential function↑ When P=0,the meter is ON/OFF control	15
4	I	Calculus time	0~2000S		240
5	d	Differential time	0~200S		30
6	At	Setting itself	ON/OFF	ON:open setting inself function OFF:close setting itself function	OFF
7	t	Control period	1~120S	The movements period ON/OFF of Setting relays control is no meaning, Relay is 20S,other is 2S.	20
8	Hy	Main control by drop in level	0.1~50.0	Only have meaning when main control output is ON/OFF(P=0)	1.0
9	Hy-1	Alarm 1 drop in level	0.1~50.0	It has use drop in level setting of alarm 1 contact output	1.0
10	Hy-2	Alarm 2 drop in level	0.1~50.0	It has use drop in level setting of alarm 2 contact output	1.0
11	Pb	Sensor error amendment	±20.0	The sensor have deviation can use item to revisal	0
12	FILT	Filt modulus	0~50	Is the software filter constants of  measurement sampling.The constant ↑,the measurements antijamming capability measurements antijamming capability↑, but the measurement and system time ↓	20
13	dp	Show accuracy	0~1	0: have radix point,1: have no radix point	0
14	P-SH	Display the high limit	-	Limit the parameters of "SP" setting range. Range please refer to Sn, P-SH≥P-SL	1300
15	P-SL	Display the low limit	-		0
16	OUTL	Allow exports  min value	0~OUTH	Can achieve low and high output limiter. Meaningless when manual and ON/OFF	0
17	OUTH	Allow exports  max value	OUTL~200		200
18	ALP1	Alarm1  and output definition	0~4	'o':indicate no alarm '1':upper limit alarm '2':lower limit alarm '3': positive deviation alarm '4': negative deviation alarm	-
19	ALP2	Alarm2  and output definition	0~4		-
20	COOL	System function choice	0~1	'0':reverse control(heat) '1':positive control(cool)	0
21	OPPO	Open power output	0~100	Soft start functionthat meters coefficient after first export of electric power	0
22	LOCK	Code lock	0~50	LOCK=0,all the parameter can be revised LOCK=1,only the "sp" can be revised LOCK>1,all the parameter can not be revised	0
23	Sn	Input type	CU50( ) PT100( ) PT100( ) K( ),E( ),J( ) T( ),S( )	CU50 (-50.0~150.0ºC) ; PT1 (-200.0~200.0ºC) ; PT2 (-200.0~600.0ºC) ;K (0~1300ºC) ; E (0~700.0ºC) ;      J (0~900.0ºC) ; T (-200~400.0ºC) ;   S (0~1600ºC) ;
24	OP-A	Output type	RLP( ) SSR( ) Zero( ) Mut( ) 0~10MA( ) 4~20MA( )	RLP Relayoutput mode SSR Solid state relay Zero controllable silicon contact signal when it exceed zero output mode Mut controllable silicon phase trigger contact output mode 0~10MA linearity  control electric current output 4~20MA  linearity  control electric current output	__
