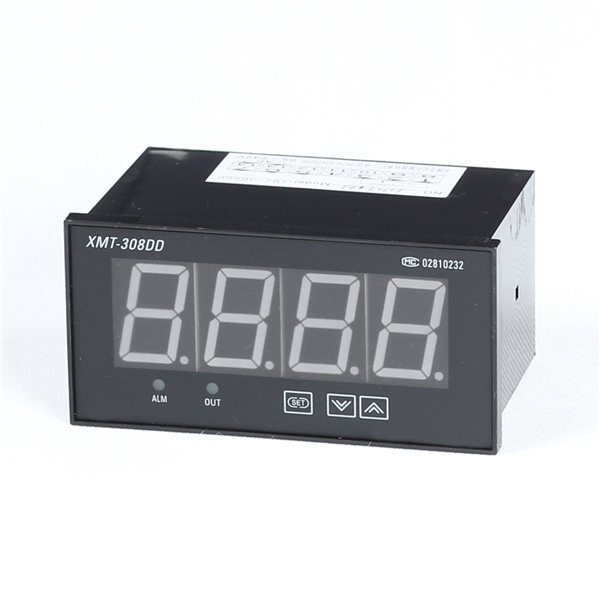

Cj Temperature Controller (XMT-308DD)

Prod Model:	XMT-30DD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

I.Summarize

XMT*-308 series intelligent temperature controller, is single row 4-LED display. The controller can input

kinds of signals which are used interchangeably, three-button operation, adopts ON/OFF control and PID
control. It can select Fahrenheit and degree centigrade temperature display. It allows an easy parameter

setting and convenient inputting, is used widely temperature automatic control systems of

machinery\chemical\ceramics\light industrial\metallurgy\petrifaction and heat treatment and so on.

II.Main Technical Indexs

1.Measurement deviation: ± 0.5F@S± 1, Cold end compensating deviation± 1

2.Input type(range): CU50(-50~150.0)\PT100(-199.9~600.0)\K(-30~1300)\E(-30~700)\J(-30~900)\T(199~400)

3.Relay output contact capacity: 7A(resistance load)

4.Dring solid relay signal output: Driving electric current 15mAvoltage >12V, period is 2S

5.Driving controllable pulse output: >100mA, instantaneous big is 1A

6.Power supply: AC90V~242V, 50Hz

7.Work environment: Temperature 0~50.0, relative humidity≤ 85%RH, without corrode and strong electric radiation.

8.external dimension: 48× 48× 100 Installation hole 44× 44

9.LED SPEC.: "4× 1.5"or"4× 0.8" and "4× 0.5"three kinds
