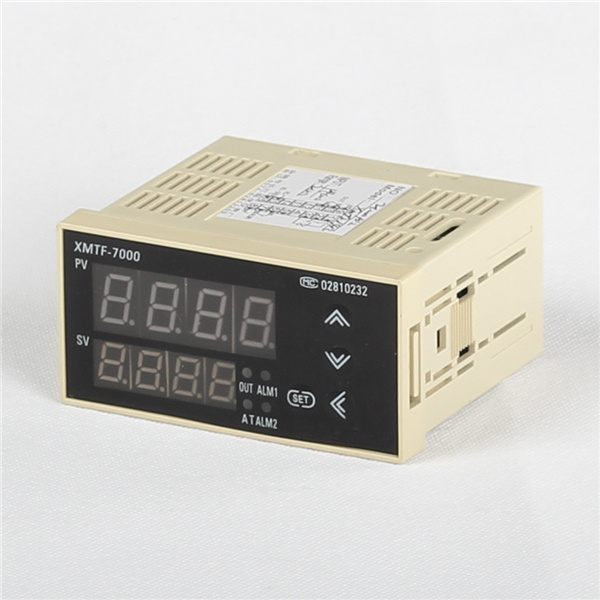

Cj Time and Temperature Controller (XMTF-7401T)

Prod Model:	XMTF-7401T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	96*48
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type
Usage:	Temperature Control

Product Description

Specifications
Temperature controller
Intelligence dual row 4-LED diSplay
Operated with 4-key
Control method: On/off, automatic regulation

I,Survey:
 XMTF/G-7401T intellectual ability temperature regulator series controlled by single chip, free input multi-signals of thermocouple, thermoresistance,movement with hand, ON/OFF control and PID control,besides,it has time function, ,you can adjust time unit hour and minute or minute and second .they are widely used in the automatic control system of the temperature, chemical, ceramics, light, metal, petrochemical and heat treatment industry.
II ,Main technical specification

1.Basic deviation:±0.5%F.S±1

2.Cold end compensating deviation:≤±2.0ºC

3.Sampling cycle:0.5s

4.Control cycle: relay output 2~120s and can be adjusted

5.Relay output contact capacity: AC220V/5A(resistance load)

6.Driving solid relay signal output:driving electric current≥15mA,voltage≥9V

7.Power: AC85V~242V(switching supply), 50/60Hz,or the other special request.

8.Working condition: temperature 0~50.0ºC, relative humidity≤85% RH, without corrode and strong electric radiation.

9.Size and Installation hole(mm):XMTG:48×48×110     44×44
XMTF:96×48×85      96×44

Parameter code

Series	Code	Name	Setting range	Manual	Remarks
0	SP	Appointed data	Determined by P-SL P-SH	-	50.0
1	tE	Timing seting	1~59.59	please refer to Corresponds to "TE" indicator light	10
2	AL1	Temperature  alarm	fixed value alarm : Determined by P-SL,P-SH; follow-up alarm: 0.0~100.0 .	please refer to Corresponds to "AL1" indicator light	100
3	P	Proportion modulus	0.0~200.0	When the P↑,the proportion and differential function↑; If the P↓,the proportion and differential function↓ When P=0,the meter is ON/OFF control.	15.0
4	I	Calculus time	0~3000S	It's used to adjust static difference. To increse it ,the static difference will be reduced,but if it is too high, the static difference will drift instability.	240
5	d	Differential time	0~200S		30
6	At	Setting itself function	OFF:close the function ON:open the function	Selection of the Setting itself function	OFF
7	t	Control period	2~120 S	the movements period ON/OFF of Setting relays control is no meaning	20
8	Hy	Main control by drop in level	0.1~100.0	Only have meaning when main control output is ON/OFF(P=0)	1.0
9	Hy1	Alarm 1 drop in level	0.1~100.0	It has use drop in level setting of alarm contact output	1.0
10	Pb	Sensor error amendment	±20.0	The sensor have deviation  can use item to revisal	0
11	FILE	Filt modulus	0~50	It is the software filter constant of  measurement sampling.The constant ↑,the measurement antijamming capability↑,but the measurement speed  and system response time ↓	20
12	Lock	Code lock	0~50	=all the parameter can be revised,or it can't.	0
13	Sn	Input type	CU50(),PT100(),K(),E(),J(),T(),S(),	CU50(-50~150.0), PT100(-199.9~600.0), K(-30~1300),E(-30~700), J(-30~900),T(199~400), S(-30~1600)
14	P_SL	Display the high limit	P-SL~full range	Can set the high limit displaying  input signal	250
15	P_SL	Display the low limit	Range start ~P-SH	Can set the low limit displaying  input signal	0
16	outH	Allow output  max value	OUTL~100.0	Can output high amplitude limiting, manual and ON/OFF output with no effect	100.0
17	outL	Allow output  min value	0.0~OUTH	Can output low limit condition, manual and ON/OFF control output with no effect	0.0
18	ALP	Alarm output definition	0~1	'0' upper limit alarm '1' follow-up alarm	0
19	tEP	Time unit choice	0~1	0:minute and second display   1:hour and minute display	0
20	COOL	System function choice	ON/ OFF	OFF:reverse control(heating control) ON:positive control(cooling control)	OFF
21	oP_R	Output method	-	SSR   solid state relay RLP  relay output method	RLP
22	oppO	Open power output  power	0~100	Soft start function that meters coefficient after first output of electric power	0
23	CF	Fahrenheit and degree centigrade selecting	C/F	C:ºC      ;    F:ºF	C
24	dP	Display accuracy	ON/ OFF	0: have radix point, 1: have no radix point	OFF
25	Int	Time function selection	0~3(Time control side be switched on)	0:common temperature control 1:start timing when it reaches the temperature,and the built-in buzzer will give an alarm output after reaching the time, the controller keep on heating; 2:start timing when it reaches the temperature,and the built-in buzzer will	0
				give an alarm output after reaching the time, the controller stop heating; 3:regular temperature control(no alarm)+time relay function: start timing when the power is on, alarm relay attracting after reaching the time .
