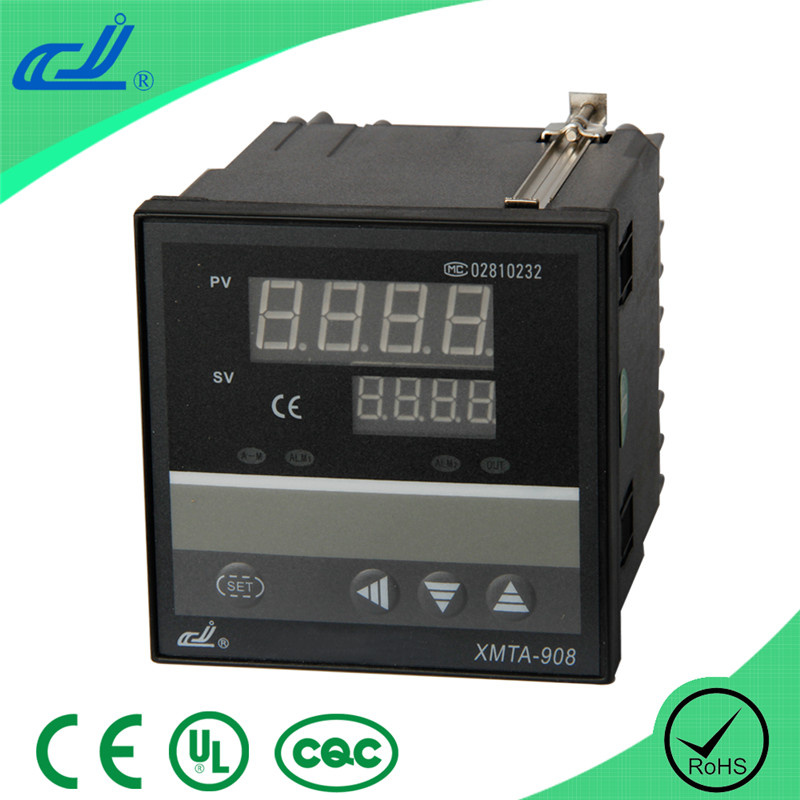

Cj Xmta-908t Temperature Controller with Time Function

Prod Model:	XMTA-908T
Size:	96*96
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type

Product Description

Product Description
Specifications

Temperature controller
PID
intelligence dual row 4-LED displays
displaying the measured value and set value.


Main technical specification

1. Measurement deviation: ≤ ± 0.5%F. S± 1B

2. Cold end compensating deviation: ≤ ± 2.0C

3. Sampling cycle: 0.5S

4. Control cycle: Relay output  2-120S, other is 2S.

5. Relay output contact capacity: AC220V/5A (resistance load) or AC220V/0.3A

(perceptual
Load)

6. Driving controllable pulse output: ≥ 3V scope, ≥ 40us width's over zero or trigger contact
pulse

7. Driving solid relay signal output: Driving electric current≥ 15mA, voltage≥ 9V.

8. Continuous PID: 0-10mA (load 500± 200Ω ), 4-20mA (load 250± 100Ω ), or 0-5V

(load≥ 100kΩ ), 1-5V (load≥ 100kΩ )

9. Exterior and hole size(mm): 96× 96× 110 92× 92

10. Power: AC85V242V, 50/60Hz

11. Working condition: Temperature 0-50.0C, relative humidity≤ 85%RH, without corrode

and strong electric radiation.

Panel instruction(consult)
Connection scheme(consult)

Model code


                                       XMT (     ) - 9 (    )  8  (    )
                                                  1         2     3      4        5

1:The surface dimension (mm)
Blank: 160×80×85 Installation hole 156×76 A: 96×96×80 Installation hole 92×92
D: 72×72×80 Installation hole 68×68 E: 48×96×75 Installation hole 44×92
F: 96×48×75 Installation hole 92×44 G: 48×48×110 Installation hole 44×44
S: 80×160×85 Installation hole 76×156

2: Operation display method:'9' 4-key gentle push-switch setting,double row 4-LED digital display,PID and ON/OFF(P=0)control can select.

3:Additional alarm:'1' No over-temperature alarm, but a group of time control output;
'3' A group of alarm ( upper limit alarm or follow-up alarm ) and a group of time-control relay output;
'5' No over-temperature alarm, but a group of time control output for buzzer alarm .

4:Input: '8' input signal can interchange free(no voltage and current input)

5:Suffix Blank:relay output G:solid relay output T:Time control function

Inner parameter

Series	Code	Name	Setting range	Manual	Ex-Factory
0	SP	Setting value of temperature	Determined by P-SL P-SH	Output corresponds to "OUT" indicator light	50.0
1	AL1	Alarm 1	Determined by P-SL,P-SH when the upper and lower limit alarm, it is0~50.0 when the positive deviation alarm and negative deviation alarm	please refer to ALP1 Corresponds to "ALM1" indicator light	300
2	AL2	Alarm 2		please refer to ALP2 Corresponds to "ALM2" indicator light	100
3	P	Proportion modulus	0~100	When the P↑, the proportion and differential function↓; If the P↓, the proportion and differential function↑ When P=0, the meter is ON/OFF control	15
4	I	Calculus time	0~2000S		240
5	d	Differential time	0~200S		30
6	At	Setting itself	ON/OFF	ON: open setting itself function OFF: close setting itself function	OFF
7	t	Control period	1~120S	The movements cycle ON/OFF of Setting relays control is no meaning, Relay is 20S,  other is 2S.	20
8	Hy	Main control by drop in level	0.1~50.0	Only have meaning when main control output is ON/OFF(P=0)	1.0
9	Hy-1	drop in level of  AL1	0.1~50.0	It is used as setting of drop in level for AL1 relay output	1.0
10	Hy-2	drop in level of  AL2	0.1~50.0	It is used as setting of drop in level for AL2 relay output	1.0
11	Pb	Sensor error amendment	±20.0	The sensor have deviation can use item to revisal	0
12	FILT	Filt modulus	0~50	Is the software filter constants of  measurement sampling. The constant ↑, the measurements antijamming capability↑, but the measurement and system time ↓.	20
13	dp	Display precision	0~1	1: have radix point; 0: have not radix point	0
14	P-SH	The max.value of temperature range	-	They are used to reset proper temperature range as per user'application. As for the Max. temperature range for different inputs, please refer to Sn, P-SH≥P-SL	1300
15	P-SL	The min.value of temperature range	-		0
16	OUTL	The min. value of allowable output	0~OUTH	Can achieve low and high output limiter. Meaningless when manual and ON/OFF control	0
17	OUTH	The max. value of allowable output	OUTL~200		200
18	ALP1	Alarm1  and output definition	0~4	'o':indicate no alarm;  '1':upper limit alarm '2':lower limit alarm; '3': Upper-limit (deviation) Alarm; '4': Lower-limit (deviation) Alarm;	-
19	ALP2	Alarm2  and output definition	0~4		-
20	COOL	System function choice	0~1	'0': reverse control(heat) '1': positive control(cool)	0
21	OPPO	Open power output	0~100	Soft start functionthat meters coefficient after first export of electric power	0
22	LOCK	Code lock	0~50	LOCK=0, all the parameter can be revised LOCK=1, only the SP can be revised LOCK>1, all the parameter can not be revised	0
23	Sn	Input type	CU50( ) PT100( ) PT100( ) K( ),E( ),J( ) T( ),S( )	CU50 (-50.0~150.0ºC) ; PT1 (-200.0~200.0ºC) ; PT2 (-200.0~600.0ºC) ;K (0~1300ºC) ; E (0~700.0ºC) ;      J (0~900.0ºC) ; T (-200~400.0ºC) ;   S (0~1600ºC) ;
24	OP-A	Output type	RLP( ) SSR( ) Zero( ) Mut( ) 0~10MA( ) 4~20MA( )	RLP Relay output mode SSR Solid state relay Zero   SCR zero voltage switching Mut   SCR phase-shift trigger 0~10MA linearity  control electric current output 4~20MA  linearity  control electric current output	__
