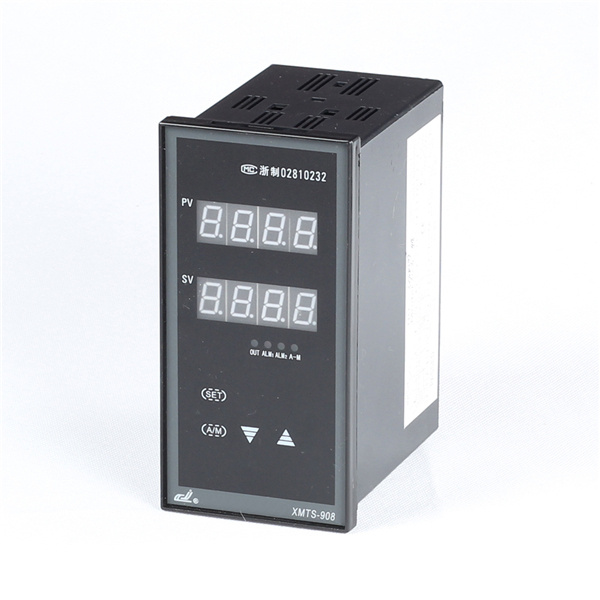

Cj Xmts-608 Pid Printhead Temperature Controller

Prod Model:	XMTS-608
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	80*160
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type

Product Description

Specifications

Temperature controller
On/off
PID control
Temperature meter are dual row 3-LED display
Input: CU50; PT; J; E; K; T



XMT*608 series intelligent temperature controller, is double row 3-LED display and include on/off, PID

control, including with parameter of self-setting function. This temperature meter respectively display

temperature measurement value (PV) and temperature set value (SV) under normal mode; When it is

time temperature control, respectively display temperature measurement value (PV) and running time

count down (SV), and also provide kinds of time control method selection; The controller can input kinds

of signal which are used interchangeably, it adopt ON/OFFP=0PID control, allowing an easy parameter

setting and convenient inputting, is widely used over temperature automatic control systems of

machinerychemicalceramicslight industrialmetallurgypetrifaction and heat treatment and so on.

Main technical Indexes

1, Measurement deviation: ± 0.5%F· S± 1B, Cold end compensating deviation≤ ± 2C

2, Input(can be selected): CU50(-50~150), PT100(-199~600), K(-30~999),

E(-30~700), J(-30~900), T(199~400)

3, Relay output contact capacity: AC220V 5A(resistance load)

Period 2~120s can be adjusted.

4, Drivng solid relay signal output: Driving electric current >15m A voltage >9V,

Period is 2S

5, Power: AC85V~242V, 50/60HZ

6, Work environment: Temperature 0~50.0C, relative humidity≤ 85%RH, without corrode and strong

electric radiation.

XMT(    )-6   (    )     8     (   )
            1     2     3     4       5
1:External size and Installation hole(mm)
Empty   160×80×90    152×76         A   96×96×90   92×92
D   72×72×90     68×68         E    48×96×90   44×92
F   96×48×90    92×44          G    48×48×100   44×44
S   80×160×90   76×152      B    60×120×90   56×116
C   80×120×35   wall set installation
2. Operation display method:'6': 3-key gentel push-switch setting, double row digital display, have PID adjustment
3. An additional alarm:
Blank or '0': indicates no alarm;'1': High limit touch alarm;'2': low limit touch alarm
4. Input signal classification: '8' : Input signal can interchange free
5. Suffix:  None: relay output           G: solid state relay output

Code setting sheet

Series		Code	Name	Setting range	Remark	Ex-Factory
First Menu	0	-	Setting value of temperature	Determined by dIL and dIH	Pressorfor 3 second and set the temperature setting value you need	-
	1	AL	High/Low-limit alarm		-	Random
	2	SC	Measurement deviation	-20.0~20.0	Measuring value can be modified through increasing or decreasing this data.	0
	3	P	Proportion time	0~99.9~200	When the P↑, the proportion and differential function↓; If the P↓, the proportion and differential function↑ When P=0,the meter is ON/OFF control.	15.0
	4	I	Calculus time	0~999	It's used to adjust static difference. To increse it, the static difference will be reduced, but if it is too high, the static difference will drift instability.	240
	5	d	Differential time	0~200		30
	6	t	Control period	2~120S	When it leaves factory, SSR is 2s; Relay is 20s. When P=0, it makes no sense.	20
	7	Hy	Main control by drop in level	0.1~50.0	It only controls at ON/OFF	1.0
	8	At	Parameter setting itself	on/oFF	oFF-shut itself function  ; on-open itself function Select 'on'only can adjust for one time,and then turn back to 'oFF'	oFF
	9	Loc	Electronics lock	0~50	Loc=0 all the parameter can be revised Loc =1 only the appointed data can be revised	0
Second Menu	10	Loc	Electronics lock	0~50	idem	0
	11	Sn	Input type	-	CU50( ),PT100( ),K( ),E( ),J( ),T( );	K
	12	dIL	The min. value of temperature range	dIL≤dIH	Input type     Max. temperature range CU50         -50~150ºC, PT100        -199~600ºC, K            -30~1300ºC, E             -30~700ºC, J             -30~900ºC, T             -199~400ºC,	0
	13	dIH	The max. value of temperature range			400
	14	PF	Filt modulus	0~50	It is the software filter constant of  measurement sampling. The constant ↑, the measurement antijamming capability↑, but the measurement speed and system response time ↓	20
	15	COL	System function choice	on/oFF	on:positive control(cooling control) oFF:reverse control(heating control)	oFF
