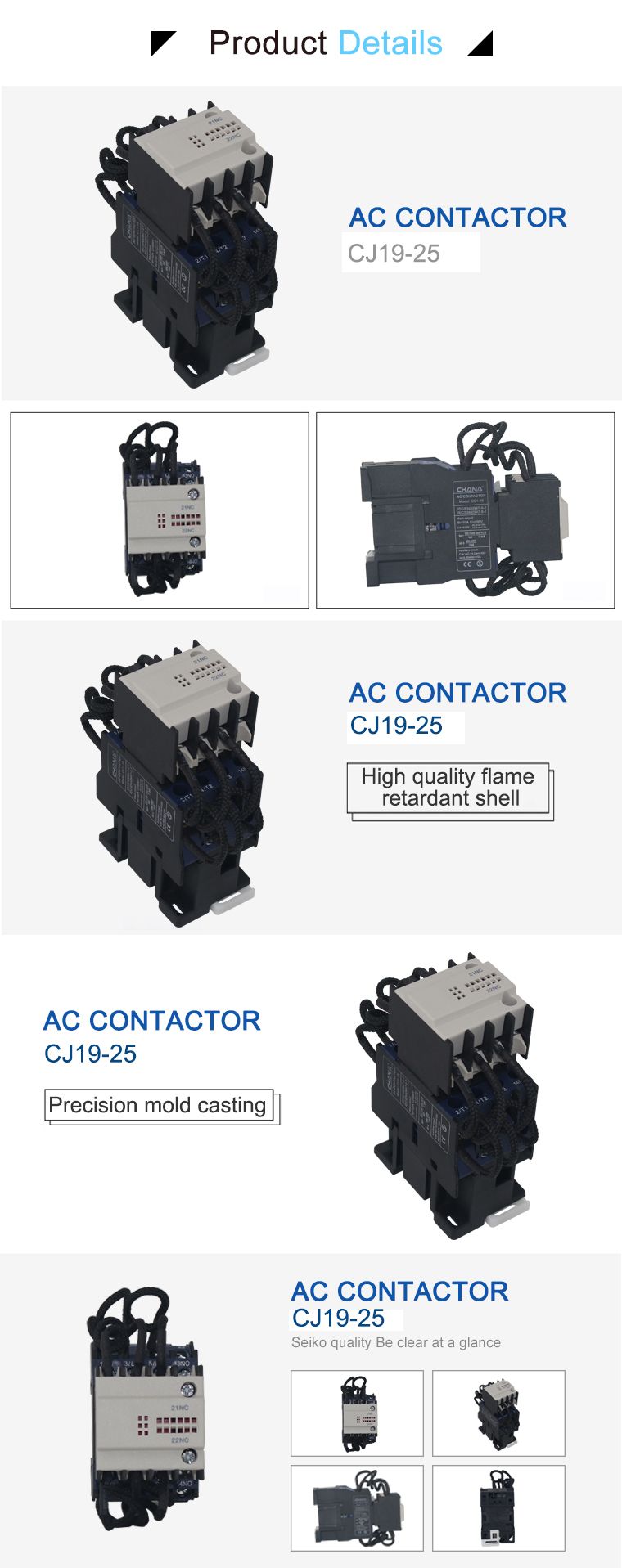

Product Description

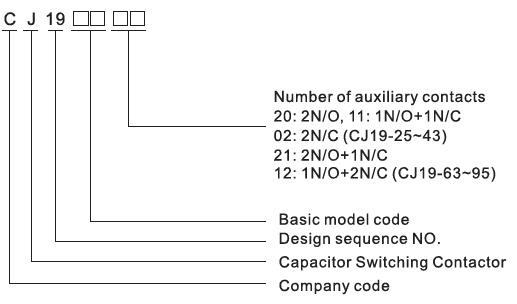

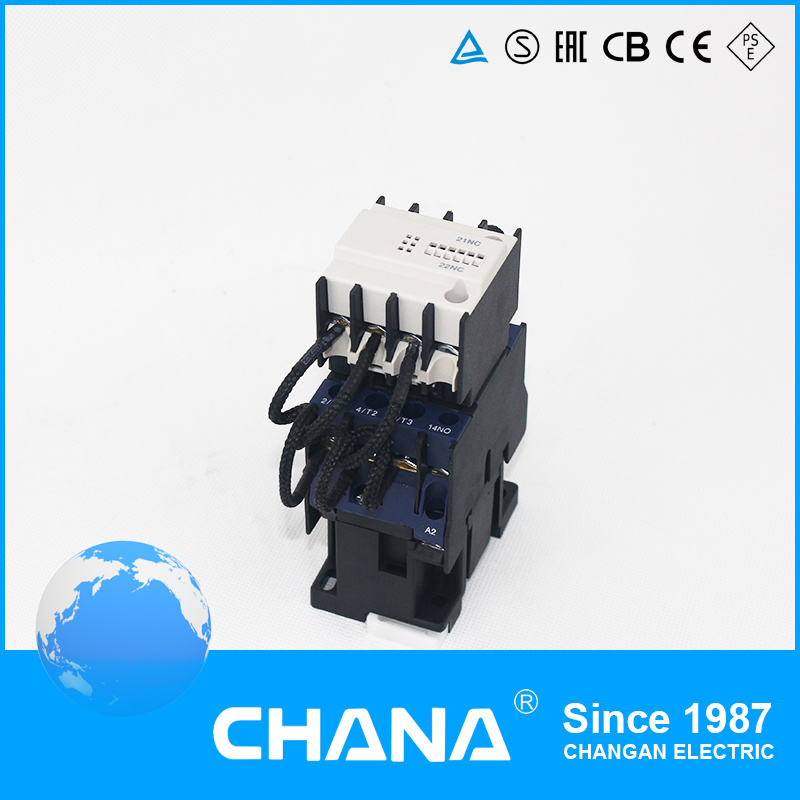

1.DescriptionElectric ratings: AC50/60Hz, up to 400V;Standard: IEC/EN 60947-4-1Ambient temperature: -5ºC~+40ºC,the average during 24 hours should not exceed +35ºCAltitude:≤2000m;Atmosphere conditions: At mounting site, relative humidity not exceed 50% at the max temperature of +40ºC, higher relative humidity is allowable under lower temperature. For example, RH could be 90% at +20ºC, special measures should be taken to occurrence of dews;Pollution degree: 3Installation category: IIIInstallation conditions :the inclination between installation plane and vertical plane is within ±5ºCImpact and shake: the products should locate in the places where there are no obvious impact and shake.2.Type Designation
3.Technical Data| Standard | | IEC/EN60947-4-1 |
| Model | | CJ19-25 | CJ19-32 | CJ19-43 | CJ19-63 | CJ19-80 | CJ19-95 |
| Rated Conventional Heating Current | Ith(A) | 25 | 32 | 43 | 63 | 80 | 95 |
| Rated Work Current | 415V/le(A) | 18 | 25 | 32 | 60 | 80 | 95 |
| Capacitor Controlled | 220/240V(Kvar) | 6 | 9 | 10 | 15 | 18 | 22 |
| 400/440V(Kvar) | 12 | 18 | 20 | 30 | 36 | 40 |
| Rated Insulation Voltage | Ui(V) | 690 | 690 | 690 | 690 | 690 | 690 |
| Rated Operation Voltage | Ue(V) | 400 | 400 | 400 | 400 | 400 | 400 |
| Electrical life(×10³) | Times | 120 | 120 | 120 | 100 | 100 | 100 |
| Mechanical life(×10³) | Times | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Restrained Surge Capacity | x le | 15 |
| Auxiliary Contact | Ith=10A | AC-15 360VA;DC-13 33W |
| Control Capacity |
| COIL PARAMETERS |
| Coil Power(VA) | Start-up | 76 | 110 | 110 | 230 | 230 | 230 |
| Holding | 10 | 11 | 11 | 32 | 32 | 32 |
| Rated Control Power | Us(V) | 24,36,48,110,220,380 |
| Pull time | Ms | 12~22 | 15~24 | 15~24 | 20~26 | 20~35 | 20~35 |
| Release time | Ms | 4~12 | 5~19 | 5~19 | 8~12 | 6~20 | 6~20 |
| Operation Range | Pick-up | (85%-110%)us |
| Drop-out | (20%-75%)us |

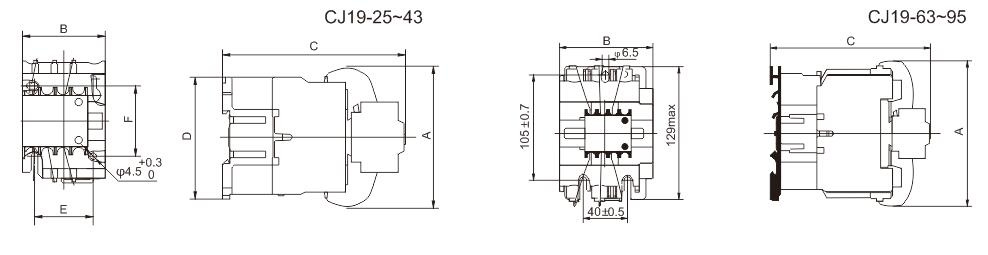

4.Overall and Mounting Dimensions(mm)
| Model | Amax | Bmax | Cmax | Dmax | E | F | Note |
| CJ19-25 | 80 | 47 | 124 | 76 | 34/35 | 50/60 | be fixed 35mm din rail |
| CJ19-32 | 90 | 58 | 132 | 86 | 40 | 48 |
| CJ19-43 | 90 | 58 | 136 | 86 | 40 | 48 |
| CJ19-63 | 132 | 79 | 150 | - | - | - | Not only fixed by screws but also could be fixed with 35mm and 75 din rail |
| CJ19-80-95 | 135 | 87 | 158 | - | - | - |
5.Wiring and Installation
5.1The connection terminals are protected through insulation cover, which is reliable and secure for installation and operation;
5.2 For CJ19-25~43, screws are available for installation, as well as the DIN rail;
for CJ19-63~95, 35mm or 75mm standard rail are available for installation.
