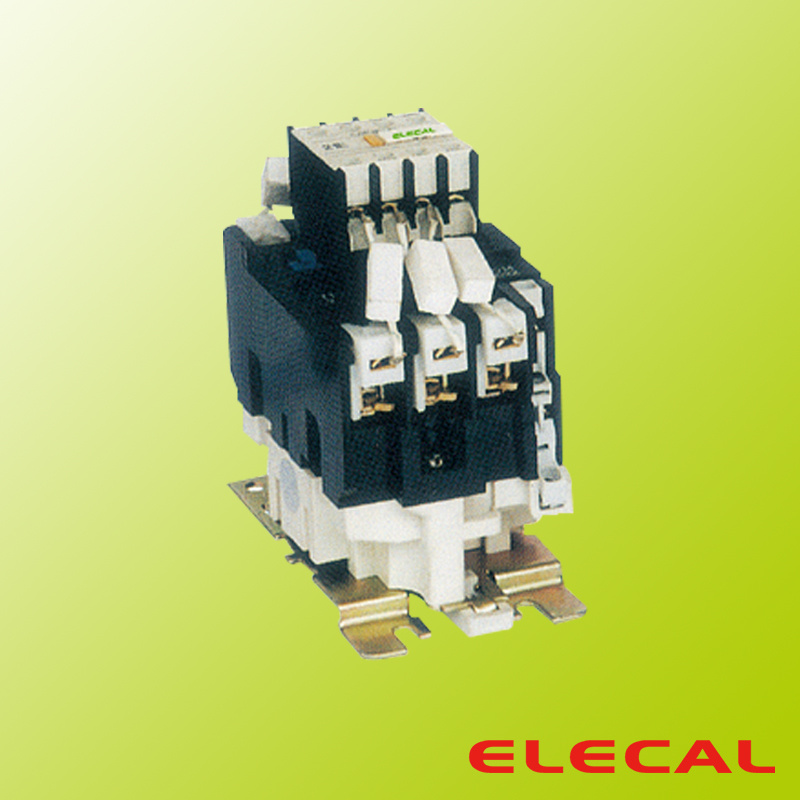

Cj19 Changeover Capacitor Contactor

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Miniature
Theory:	Electromagnetic Relay
Usage:	Household Appliances Relay, Communication Relay
Protective Characteristics:	Open Relay
Load:	Medium Power Relay
Action Principle:	Electromagnetic Type

Product Description



1.Application
CJ19 series changeover capacitor contactor is mainly applicable to a power line of AC 50Hzor 60Hz, rated working voltage up to 380V. It is used to put a low voltage parallel connectedcapacitor in operation or switch it off in a low voltage reactive power compensation device. Thecontactor is equipped with a surge suppressor, which can effectively reduce the surge currentpassing through the capacitor at weitching on and suppress the over-voltage at switching off.The product is in conformity with the standards IEC947-4-1.

2.Specification   Model CJ19-25 CJ19-32 CJ19-43 CJ19-63 CJ19-95 Electrical lfie(×103) 100 100 100 100 100 Rated current le(380V)A 17 23 29 43 63 Power ofcontrolled capacitor 220/230V 6 9 10 15 22 380/400V 12 18 20 30 40 Rated insulation voltage Ui(V) 500 Rated operational voltage Ue(V) 380 Restrained surge capacity 20le Operation range Pick-up:(85%~110%)Us; Drop-out:(20%~75%)Us Coil power(VA) Start-up 70 110 110 200 200 Holding 8 11 11 20 20 Control capacity of auxiliary contact AC-15 360VA; DC-13 33W Weight(Kg) 0.44 0.63 0.64 1.4 1.5 3. Outline and Mounting Dimension    Type Amax Bmax Cmax Dmax E F Note CJ19-25 80 47 124 76 34/35 50/60 Screw mount/35mm rail mount CJ19-32 90 58 134 86 40 48 CJ19-43 90 58 136 86 40 48 CJ19-63 132 79 150       CJ19-95 135 87 158
