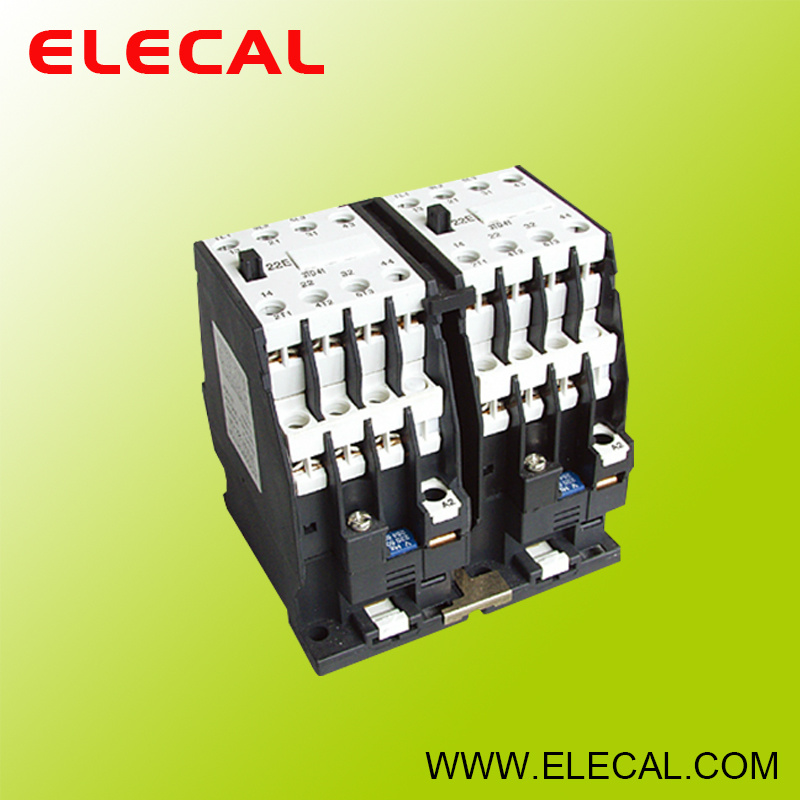

Cjx1-N AC Contactors

Prod Model:	CJX1-N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Miniature
Theory:	Electromagnetic Relay
Usage:	Household Appliances Relay, Communication Relay
Protective Characteristics:	Open Relay
Load:	Medium Power Relay
Action Principle:	Electromagnetic Type

Product Description

1.Application
CJX1-N series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to1000V,rated operation current 9~475A under AC-3 duty.It is mainly used for making/breakingelectric circuit at a long distance & for frequent starting/stopping & with thermal relay to com-pose a magnetic motor starter.The product conforms to IEC60947-4-1 stardand.


Type	Rated thermalcurrent (A)	Rated operationcurrent (A)		Controllable power of motor(KW)
				AC 3		AC 4
		380V	660V	380V	660V	380V	660V
CJX1-09N	20	9	3.3	4	5.5	1.4	2.4
CJX1-12N	20	12	4.3	5.5	7.5	1.9	3.3
CJX1-16N	30	16	7.7	7.5	11	3.5	6
CJX1-22N	30	22	8.5	11	11	4	6.6
CJX1-32N	45	32	15.6	15	23	7.5	13
CJX1-45N	45	38	18.5	18.5	23	9	15.5
CJX1-63N	70	45	24	22	39	12	20.8
CJX1-75N	70	63	28	30	55	14	24.3
CJX1-85N	90	75	34	37	67	17	29.5
CJX1-110N	90	85	42	45	67	21	36
CJX1-140N	150	110	54	55	100	27	46.9
CJX1-170N	150	140	68	75	100	35	60
CJX1-205N	180	170	75	90	156	38	66
CJX1-250N	220	205	96	110	156	50	86
CJX1-300N	300	250	110	132	235	58	100
CJX1-400N	300	300	125	160	235	66	114
