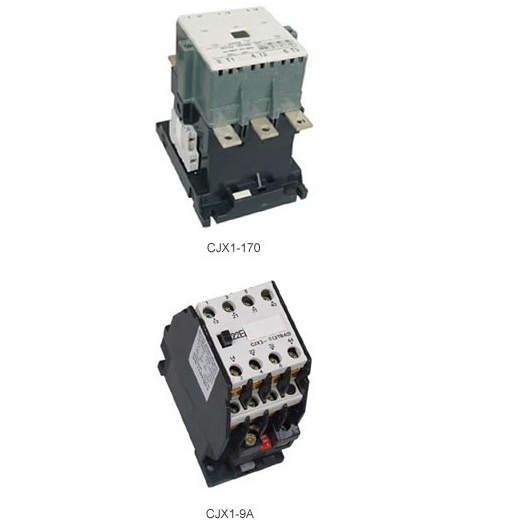

Cjx1 Series AC Contactor (3TF)

Name: Cjx1 Series AC Contactor (3TF)
Brand: all-electronics-online.com
SKU: 814819105
Availability: InStock
Rating: 4.7 (59 reviews)

Price:	US $ 1-1.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Cjx1 (3TF)

Product Description

Application
CJX1(3TF) series AC contactors are suitable in electrical system with AC 50/60Hz, rated operational voltage up to 660V. In AC-3 usage, rated operational voltage up to 380V, rated operational current up to 630A to make or break remote motors or system. They form electromagnetic starters with suitable thermal overload relays JRS2(3UA) series to protect system and motors against overload or phase-failure. They are made according to IEC947, BS5424 & VDE0660.

SPECIFICATION

Type	Rated thermal current(A)		Rated operation current(A)		Controllable power of motor(KW)			Type of Auxiliary contact
					AC-3		AC-4
		380V	660V	380V	660V	380V	660V
CJX1-9(3TF40)	20	9	7	4	5.5	1.4	2.4	NO NC 1NO+1NC 2NO+2NC
CJX1-12(3TF41)	20	12	8.5	5.5	7.5	1.9	3.3
CJX1-16(3TF42)	30	16	12.5	7.5	11	3.5	6
CJX1-22(3TF43)	30	22	16.5	10	15	4	6.6
CJX1-32(3TF44)	55	32	24	15	22	7.5	13
CJX1-38(3TF45)	55	38	24	18.5	22	9	15.5
CJX1-45(3TF46)	80	45	40	22	37	12	20.8
CJX1-63(3TF47)	80	63	60	30	55	14	24.3
CJX1-75(3TF48)	100	75	60	37	55	17	29.5	2NO+2NC 4NO+4NC
CJX1-85(3TF49)	100	85	80	45	75	21	36
CJX1-110(3TF50)	160	110	95	55	90	27	46.9
CJX1-140(3TF51)	160	140	120	75	110	35	60
CJX1-170(3TF52)	200	170	160	90	150	38	66
CJX1-205(3TF53)	210	205	165	110	160	50	86
CJX1-250(3TF54)	300	250	230	132	220	58	100
CJX1-300(3TF55)	300	300	260	160	250	66	114
CJX1-400(3TF56)	400	400	380	200	355	81	140
CJX1-630(3TF68)	630	630	600	335	560	160	278

Internationalization standard quality guarantee system

The product quality of onandoff Group has been strictly controlled in each working procedure, many kinds of internationalization standard quality guaranteed system can be highly effective under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently make sure of our product quality.

"Onandoff" was evaluated as " Chinese famous trademark", Onandoff Group has obtained American FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management system authentication, CCC authentication, European Union CE safe Authentication, American UL authentication and Dutch KEMA authentication and so on, at the same time, it has had the first side laboratory -- low voltage electric appliance test center which is the first connected with international in China. Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
