Product Description

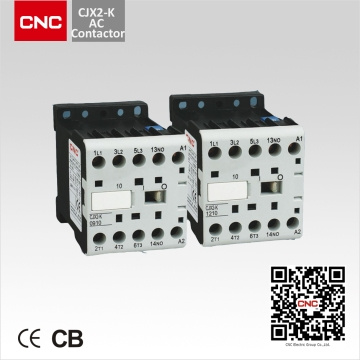

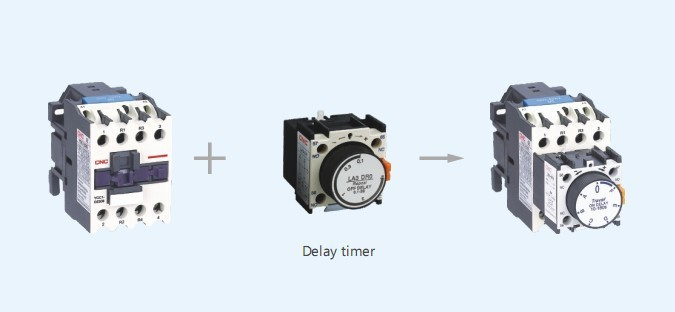

CJX2 AC Contactor brands electric contactor

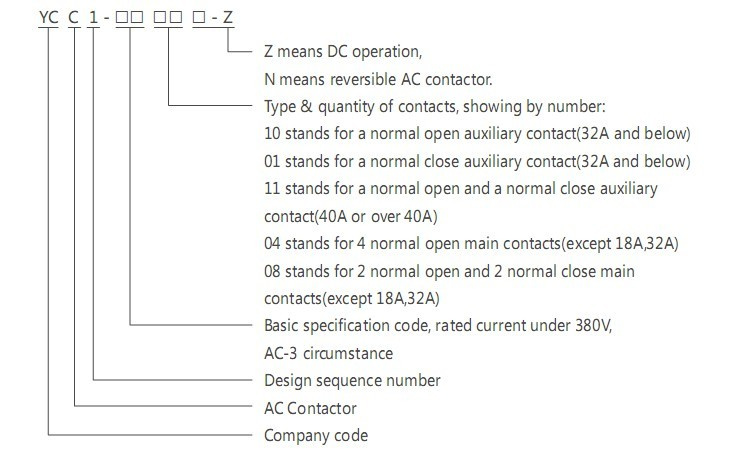

General
CJX2 series AC Contactor is suitable for using in the circuits the rated voltage up to 690V AC, 50Hz or 60Hz. Rated current up to 95A with AC-3 type. YCC1 is used to connect&break circuit with long distance, meanwhile combining with matchable thermal relay as a electromagnetic starter to protect circuit in case over-load happened.
YCC1-N series reversible AC Contactor is suitable for using in the circuits the rated voltage up to 690V, rated current up to 95A, frequency is 50Hz or 60Hz and used in motor reversible controlling. Mechanical interlock of it can ensure the reliability for two reversible contacts' shift.
Standard:IEC60947-4-1,GB14048.4

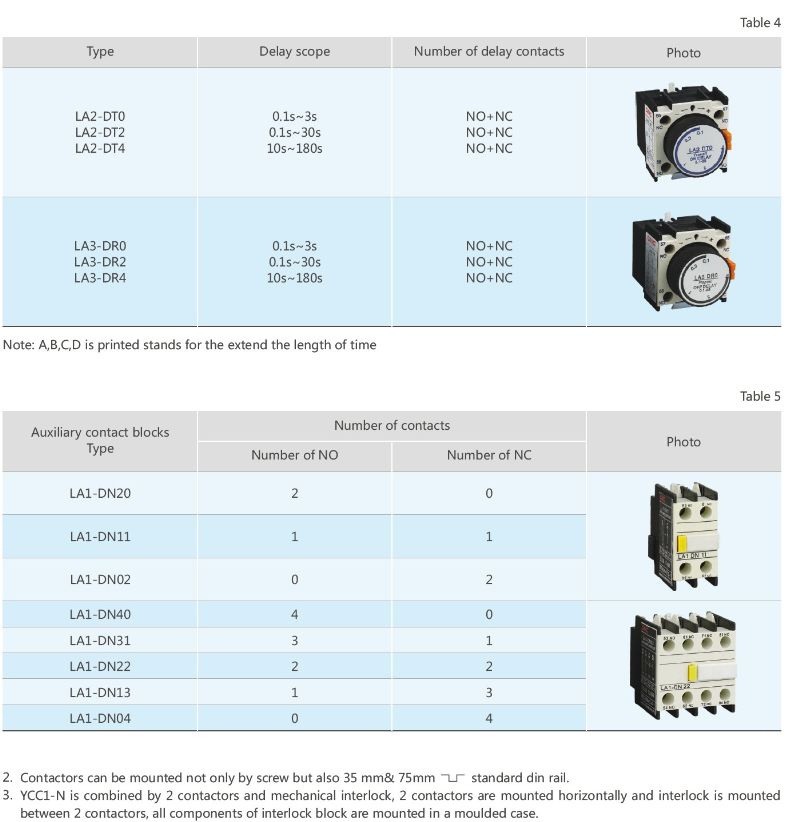

Specification
Table 1
| Type | YCC1-D09 | YCC1-D12 | YCC1-D18 | YCC1-D25 | YCC1-D32 |
Rated operational
current (A) | 380V | AC-3 | 9 | 12 | 18 | 25 | 32 |
| AC-4 | 3.5 | 5 | 7.7 | 8.5 | 12 |
| 360V | AC-3 | 6.6 | 8.9 | 12 | 18 | 21 |
| AC-4 | 1.5 | 2 | 3.8 | 4.4 | 7.5 |
| Rated conventional thermal current (A) | 20 | 20 | 32 | 40 | 50 |
| Rated insulation voltage (V) | 690 | 690 | 690 | 690 | 690 |
Rated operational
power in category
AC-3kw | 220V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380V | 4 | 5.5 | 7.5 | 11 | 15 |
| 660V | 5.5 | 7.5 | 10 | 15 | 18.5 |
Intermittent periodic duty-type
motor frequency AC-4kw | 380V | 1.5 | 2.2 | 3 | 4 | 5.5 |
| 660V | 1.1 | 1.5 | 3.7 | 4 | 5.5 |
Operation cycles
(times/hour) | Electrical | AC-3 | 1200 | 1200 | 1200 | 1200 | 600 |
| AC-4 | 300 | 300 | 300 | 300 | 300 |
| Mechanical | | 3600 | 3600 | 3600 | 3600 | 3600 |
| Electrical life (X 10³times) | AC-3 | 100 | 100 | 100 | 100 | 80 |
| AC-4 | 20 | 20 | 20 | 20 | 20 |
| Mechanical life(X 10³times) | | 1000 | 1000 | 1000 | 1000 | 800 |
| Matching fuse model | | RT16-20 | | RT16-32 | RT16-40 | RT16-50 |
| Screw size | M3.5 | M3.5 | M3.5 | M4 M4 | M4 M4 |
| Tightening torque(N·m) | 0.8 | 0.8 | 0.8 | 1.2 1.2 | 1.2 1.2 |
| Power of AC coil | 50Hz | Close(VA) | 70 | 70 | 70 | 110 | 110 |
| Remain(VA) | 9 | 9 | 9.5 | 14 | 14.0 |
| Power(W) | 1.8-2.7 | 1.8-2.7 | 3-4 | 3-4 | 3-4 |
| Power of DC coil | Power(W) | 9 | 9 | 11 | 11 | 11 |
| Operation range | Voltage of closing: 85%Us-110%Us; Voltage of releasing: 20%Us-75%Us, DC:10%Us-75%Usl |
| Specification of auxiliary contacts | AC-15: 360VA DC-13: 33W Ith: 10A |
Table2
| Type | YCC1-D40 | YCC1-D50 | YCC1-D65 | YCC1-D80 | YCC1-D95 |
Rated operational
current (A) | 380V | AC-3 | 40 | 50 | 65 | 80 | 95 |
| AC-4 | 18.5 | 24 | 28 | 37 | 44 |
| 360V | AC-3 | 34 | 39 | 42 | 49 | 49 |
| AC-4 | 9 | 12 | 14 | 17.3 | 21.3 |
| Rated conventional thermal current (A) | 60 | 80 | 80 | 95 | 95 |
| Rated insulation voltage (V) | 690 | 690 | 690 | 690 | 690 |
Rated operational
power in category
AC-3kw | 220V | 11 | 15 | 18.5 | 22 | 25 |
| 380V | 18.5 | 22 | 30 | 37 | 45 |
| 660V | 30 | 37 | 37 | 45 | 45 |
Intermittent periodic duty-type
motor frequency AC-4kw | 380V | 7.5 | 11 | 15 | 18.5 | 22 |
| 660V | 7.5 | 11 | 11 | 15 | 18.5 |
Operation cycles
(times/hour) | Electrical | AC-3 | 600 | 600 | 600 | 600 | 600 |
| AC-4 | 300 | 300 | 300 | 300 | 300 |
| Mechanical | | 3600 | 3600 | 3600 | 3600 | 3600 |
| Electrical life (X 10³times) | AC-3 | 80 | 60 | 60 | 60 | 60 |
| AC-4 | 15 | 15 | 15 | 10 | 10 |
| Mechanical life(X 10³times) | | 800 | 800 | 800 | 600 | 600 |
| Matching fuse model | | RT16-63 | RT16-80 | RT16-80 | RT16-100 | RT16-125 |
| Screw size | M4/M8 | M8 | M8 | M8/M10 | M10 |
| Tightening torque(N·m) | 1.2/3.5 | 3.5 | 3.5 | 3.5/4.0 | 4.0 |
| Power of AC coil | 50Hz | Close(VA) | 200 | 200 | 200 | 200 | 200 |
| Remain(VA) | 57 | 57 | 57 | 57 | 57 |
| Power(W) | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Power of DC coil | Power(W) | 20 | 20 | 20 | 20 | 20 |
| Operation range | Voltage of closing: 85%Us-110%Us; Voltage of releasing: 20%Us-75%Us, DC:10%Us-75%Usl |
| Specification of auxiliary contacts | AC-15: 360VA DC-13: 33W Ith: 10A |
