Cjx2-D LC1-D AC Contactor

Name: Cjx2-D LC1-D AC Contactor
Brand: all-electronics-online.com
SKU: 818729295
Availability: InStock
Rating: 4.9 (149 reviews)

Price:	US $ 3.8-3.95/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2-2510
Color:	Black&White
Application:	Refrigeration, Air Conditioning and Heating
Temparature:	-5°c~40°c
Coil Frequency:	50/60Hz
Life Time(Mechanical):	10 Million Times
Life Time (Electrical):	1 Million Times
Standard:	IEC60947-4, GB14048.4
Other Services:	ODM OEM

Product Description

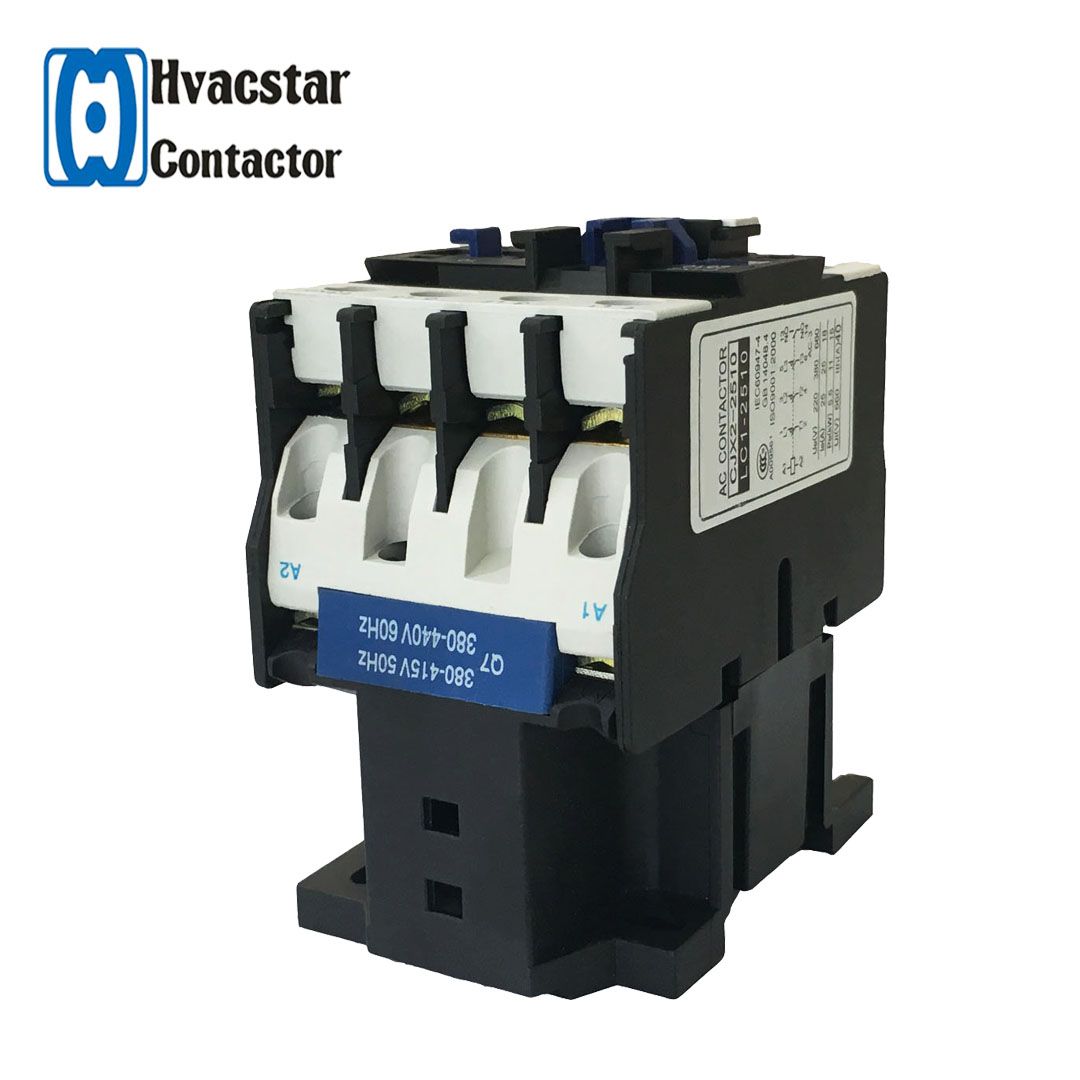

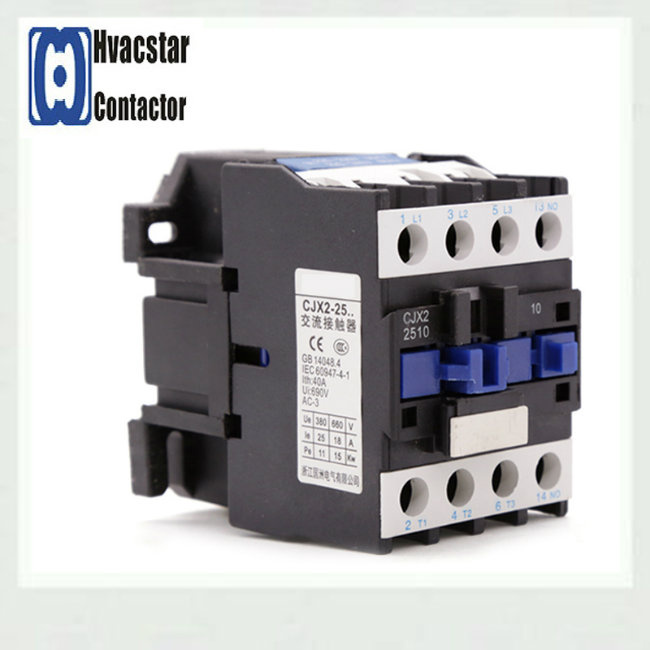

HVACSTAR CJX2-2510 AC Contactor 3p AC-3 660V

Specifications:

Type	Amax	Bmax	Cmax	a	b	Φ
CJX2-9	47	76	82	35	50	4.5
CJX2-12
CJX2-18			87		60
CJX2-25	57	86	95	40	50	4.5
CJX2-32			100		60
CJX2-40	77	129	116	40	105	6.5
CJX2-50
CJX2-65
CJX2-80	87	129	127	40	105	6.5
CJX2-95

Matching coil volts

Voltage volts

110

220

230

240

380

400

415

440

500

660

50HZ

60HZ

50/60HZ

Features:

Compact size, Light-weight, little power consumption, long service life, safe and reliable.

CJX2 series AC Contactor is suitable for using the circuit up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting&controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter, With the thermal relay.

Power terminations options:
Lugs(standard)
SEMS clamp
Binding head screws
Quick connects

Replacement coils and contact kits are available
Standard: IEC60947-4, GB14048.4
