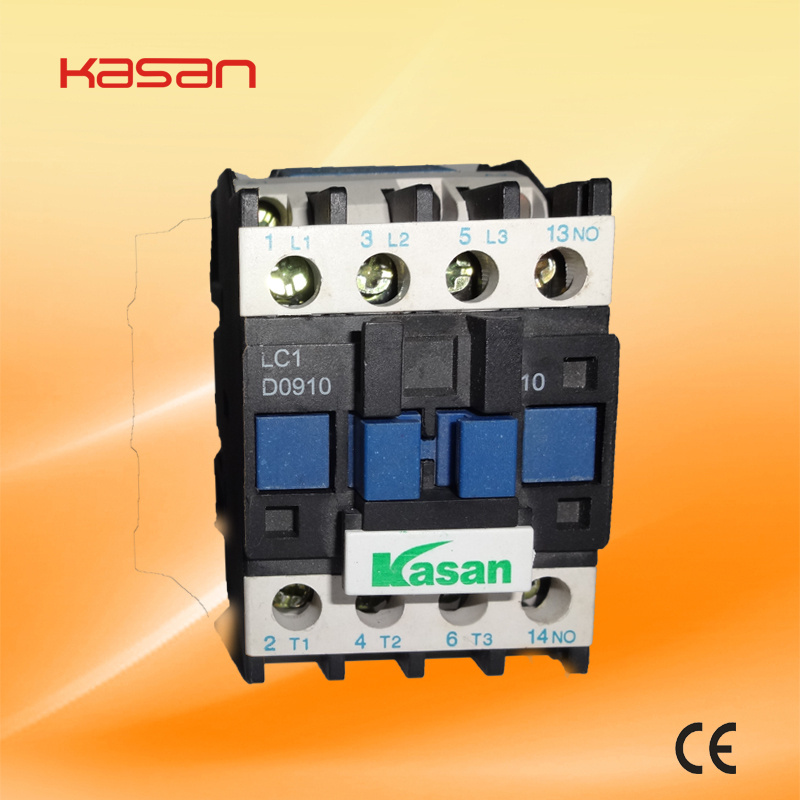

Cjx2, LC1 AC Contactor (LC1-09)

Name: Cjx2, LC1 AC Contactor (LC1-09)
Brand: all-electronics-online.com
SKU: 692531002
Availability: InStock
Rating: 4.7 (72 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2, LC1-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Miniature
Usage:	Household Appliances Relay, Communication Relay
Theory:	Contactor

Product Description

LC1D AC CONTACTOR
Specifications
Certificate :CE,ISO9001
Type:New
Material:Silver contacts
1.Application
LC1-N series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to 1000V,rated operation current 9~150A under AC-3 duty.It is mainly used for making and breaking electric circuits at a long distance & for frequent starting, stopping & controlling AC Motors.It is used in combination with thermal relay to compose a magnetic motor starter. The products comply with IEC60947-4.
2.Specification

Rated current le max AC-3 (Ue≤440V)		9A	12A		18A	25A		32A
le AC-1 (0≤60iC)		25A			32A	40A		50A
Number of poles		3	3	4	3	3	4	3
Rated operational power in AC-3	220/240V	2.2KW	3KW		4KW	5.5KW		7.5KW
	380/400V	4KW	5.5KW		7.5KW	11KW		15KW
	415/440V	4KW	5.5KW		9KW	11KW		15KW
	500V	5.5KW	7.5KW		10KW	15KW		18.5KW
	660/690V	5.5KW	7.5KW		10KW	15KW		18.5KW
	1000V	D	D		D	D		D
Auxiliary contacts		range comprising up to 4 N/C or N/O instantaneous, up to 1N/O+1N/C time delay and up to 2 N/O or N/C protected contacts and 2 screen continuity terminals

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
