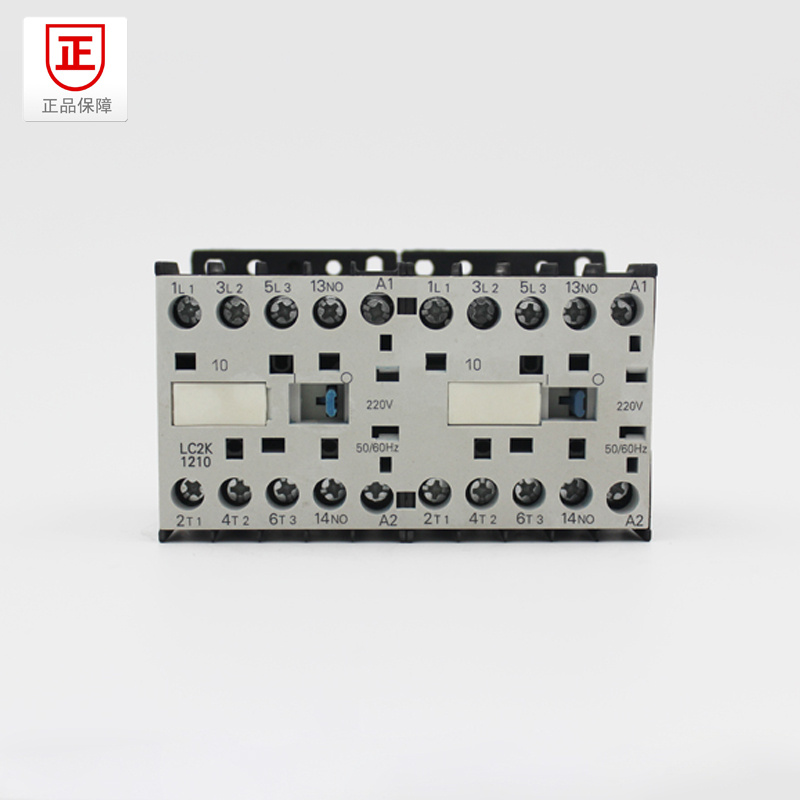

Cjx2/LC2-K AC/DC Contactor/Interlocking Contactor

Name: Cjx2/LC2-K AC/DC Contactor/Interlocking Contactor
Brand: all-electronics-online.com
SKU: 779045775
Availability: InStock
Rating: 4.7 (108 reviews)

Price:	US $ 2.10-7.35/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC2-K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LC1-D AC Contactor:	9A-95A
Rated Voltage: 24V 36V 110V 117V 220V 38:	The Life of The Machine: 10, 000, 000 Times
OEM & ODM Service:	2 Weeks Delivery Time
Good Price And Top Quality:	as Per Customer's Logo

Product Description

Product Overview

CJX2-K series AC Contact is suitable for using in the circuits the rated voltage up to 660VAC 50HZ or 60HZ, rather current up to 12A in AC-3 using category, for making & breaking, frequently starting & controlling the AC motor. Combine with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC60947-4.

For motor control, from 6 to 12A(AC-3)
For the control of distribution circuits, up to 20A(AC-1)
Control circuit: A. C or D. C. And it is suitable for using in LC1-K/LC2-K/LP1-K/LP2-K

Specifications

Standard power rating of 3-phase motors 50/60Hz in category AC-3 220V 380V 660V 230V 400V 415V 440V 500V 690V						Rated operating current AC-3 AC-1 up to 40C 440V		Rated nonconductive voltage	Instantaneous auxiliary contacts	Reference
KW	KW	KW	KW	KW	KW	A	A	V
1.5	2.2	2.2	3	3	3	6	20	690	1-	CJX2-K0610/NZ/ZN
									-1	CJX2-K0601/NZ/ZN
2.2	4	4	4	4	4	9	20	690	1-	CJX2-K0910/NZ/ZN
									-1	CJX2-K0901/NZ/ZN
3	5.5	5.5	4	4	4	12	20	690	1-	CJX2-K1210/NZ/ZN
									-1	CJX2-K1201/NZ/ZN

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
