Yueqing Winston Electric Co., Ltd. >> Cjx2 Series AC Magnetic Electrical Contactor with CE

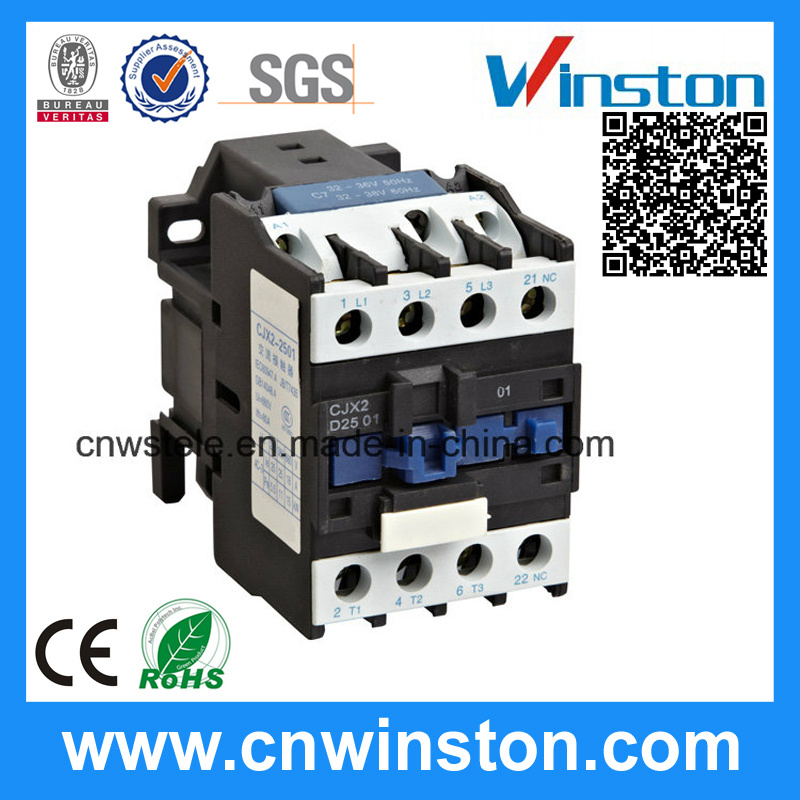

Cjx2 Series AC Magnetic Electrical Contactor with CE

Cjx2 Series AC Magnetic Electrical Contactor with CE
Price: US $ 12-14/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: CJX2, LC1D(D12\18\25\32\40\50\65\80\115\150\170)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand: Winston
Colour: White Black
Number Of The Contacts: 3p+No 3p+Nc
Material: High Standard Class a Plastic Copper Silver
Rated Voltage: up to 660V
Manufacturer: OEM
Condition: Original New
Size: Miniature
Usage: Household Appliances Relay, Communication Relay, Lathe Relay
Theory: Magnetic Contactor

Product Description

CJX2(LC1-D) AC Contactor (Magnetic Contactor/Reversing Contactors and Latching Contactors) composed of contacts, electromagnet and enclosure, are designed to be directly connected to high-current load devices. The AC contactors suitable for using in the circuits up to the rated voltage 600V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & machine-interlocking device etc. It becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC947-2, VDE0660 & BS545.


We supply all series

For more, please contact us!
TypeCJX2-D09CJX2-D12CJX2-D18CJX2-D25CJX2-D32CJX2-D40CJX2-D50CJX2-D65CJX2-D80CJX2-D95
Rated workingcurrent (A)AC39121825324050658095
AC43.557.78.51218.524283744
Standardpower ratingsof 3-phasemotors50/60Hz incategory AC-3220/230V2.2345.57.5111518.52225
380/400V45.57.5111518.522303745
415V45.5911152225374545
500V5.57.5101518.52230375555
660/690V5.57.5101518.53033374555
Rated heat current (A)2020324050608080125125
Electrical lifeAC3 (x10 4 )100100100100808060606060
AC4 (x10 4 )20202020201515151010
Mechanical life (x10 4 )1000100010001000800800800800600600
Number of the contacts3P+NO3P+NC+NO
3P+NC


TypeCJX2-D115CJX2-D150CJX2-D170CJX2-D205CJX2-D245CJX2-D300CJX2-D410CJX2-D475CJX2-D620
Rated workingcurrent (A)AC3115150170205245300410475620

AC452607585105117138147180
Standard powerratings of 3-phase motors50/60Hz incategory AC-3220/230V3040556375100110147200
380/400V557590110132160220265335
415V5980100110132180220280375
500V7590110129160200250355400
660/690V80100110129160220280355450
Rated heat current (A)2002502502753154005007001000
Electrical lifeAC3 (x10 4 )2006060505050303020
AC4 (x10 4 )151515151515885
Mechanical life (x10 4 )300300300300300300300100100100

Standard Control Circuit Voltage
Volts244248110220230240380400415440500600
50HzB5D5E5F5M5P5U5Q5V5N5R5S5Y5
60HzB6D6E6F6M6-U6Q6--R6--
50/60HzB7D7E7F7M7P7U7Q7V7N7R7--


PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.
2.  Quality Product: Manufacture company, each of the products is tested and calibrated.
3.  Hospitality: Offer smiling service and your visiting is highly welcomed
4.  Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.
Trade Information

Trade TermsFOB ,CIF ,CFR,EXW,DDP
Payment termsT/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions30% deposit in advance,70% balance before shipping.
Delivery time3-7working days after deposit,2-4 working days for inventory
PackingNeutral carton,Wooden case for large size
ShippingBy sea,by air and by express delivery
Payment conditions30% deposit in advance,70% balance before shipping.
Delivery time3-7working days after deposit,2-4 working days for inventory
PackingNeutral carton,Wooden case for large size
ShippingBy sea,by air and by express delivery

Yueqing Winston Electric Co., Ltd, established in 2010, is a rapid growing enterprise who integrate the production and marketing of Industrial electrical appliance. After seven years' effort and development, now we have become one of the leading electrical manufacturers and suppliers in China. We are always keeping very kind relationship with many strong electrical factories and Insearch institutes in China. We have been enjoying high reputation in electrical market domestically and internationally.

Our factory focus on formulating most kinds of electrical in China. Which include proximity sensor, power supply, motor soft starter, frequency inverter, relay, thermostat, heater, transformer and so on. We are capable of supplying our products in various kinds of packaging according to customers' specific requirements. Now we are producing more than 100 kinds of electrical products which are exported to about 80 countries and regions all over the world. But Winston have never stop going forward, in order to control the cost, and supply competitive price for our customers, in 2012, together with our partners, we build another factory, which producing circuit breaker, distribution box, AC contactor, etc.

Winston have an special professional registration department, who in charge of the domestic registration and oversea registration. We can help our current or potential customers to do registration work. We have a good relation with domestic famous institute who can provide us with authoritative impurity analysis and toxicological report. Quality and Service are always the top concern in Winston. We provide full set of service, including data and samples, which are available on request.

Winston's Mission is: "Focus on the industrial Electrical protection, serve the worldwide Electrical. And our tenet is: "Hold integrity, Forge Ahead, Serve the world". We are always trying our best to offer the best services and the most competitive prices with high quality goods for our customer, It's the way we win our customers and the market.

Given Chance and full space, we would show you all of our advantages and let's grow up together. I am sure we can establish long term and friendly business relationship with your esteemed company because of your trust and our excellent service.

Our advantage:

1. Quality is our culture.

2. We have our own developing and designing team, which ensure our own technological and innoative products for customers.

3. For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.

4. For any customers who send us the samples of some products, we will design and develop better ones based on the samples!

5. For every customer, we will choose the best fit material, and also innovative material for their products!

6. We can according to any customers' design to do sample of them!

7. We are manufacturer, factory, so we have the ability of mass production!

8.24*7 service, professional sales group.

Technical Support:

Most of our Winston products adopt Germany advanced technology, and the producing machine are all equipped with advance system, all our workers are experienced and skilled!

Besides, for some products material are all use imported parts.

So the quality and safety are guaranteed!

After sale service:

Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.

Winston has a complete supply system for the parts, which can guarantee the company's demand of product accessories. We have stocked the common parts in the major cooperation point world widely, which can shorten the supply time largely. So if have any question, just contact us any time at your convenience!

Transportation service:

We can guarantee the fast and safe delivery to the customers' hand.
