Mingguang Hecheng Electrical Co., Ltd. >> Cjx2 Series Magnetic Electrical AC Contactor 3 Pole 40A 380V UL Approval

Cjx2 Series Magnetic Electrical AC Contactor 3 Pole 40A 380V UL Approval

Cjx2 Series Magnetic Electrical AC Contactor 3 Pole 40A 380V UL Approval
Price: US $ 2.7-3.5/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P
Prod Model: CJX2 1210
Color: Black&White
Application: Refrigeration, Air Conditioning and Heating
Temparature: -5°c~40°c
Coil Frequency: 50/60Hz
Life Time(Mechanical): 10 Million Times
Life Time (Electrical): 1 Million Times
Standard: IEC60947-4, GB14048.4
Other Services: ODM OEM

Product Description

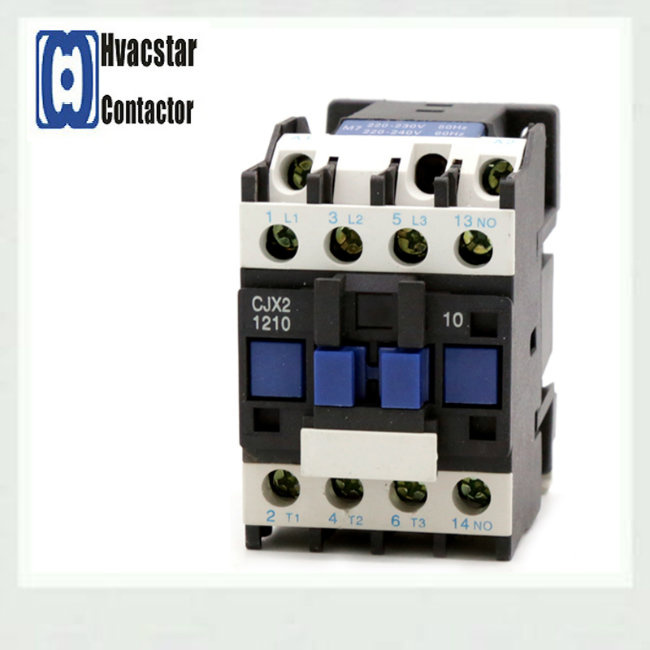

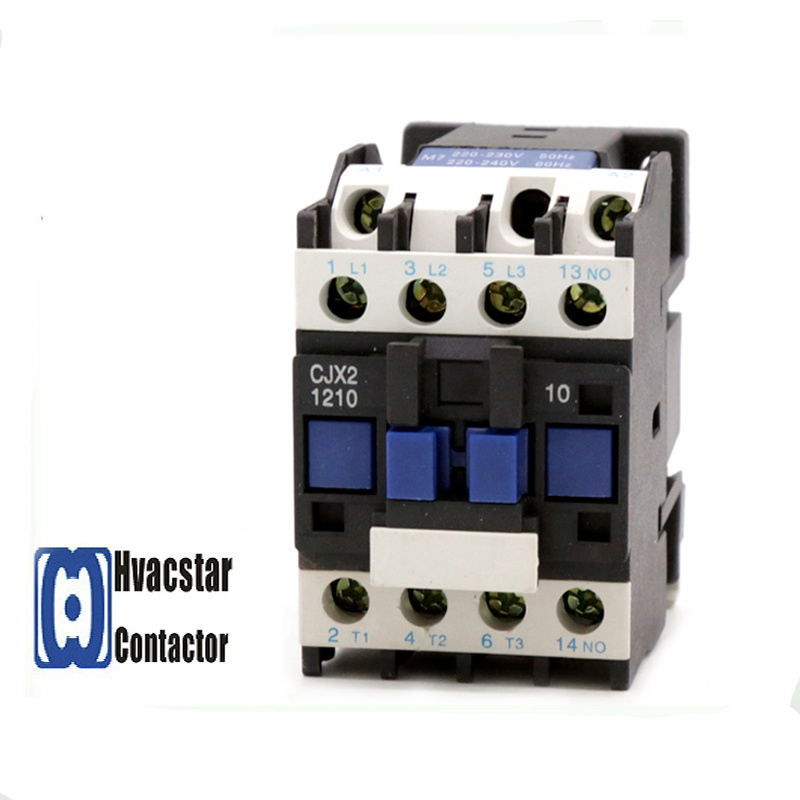

HVACSTAR CJX2-1210 AC Contactor 3p AC-3 380V



Specifications:
TypeAmaxBmaxCmaxabΦ
CJX2-947768235504.5
CJX2-12
CJX2-188760
CJX2-2557869540504.5
CJX2-3210060
CJX2-4077129116401056.5
CJX2-50
CJX2-65
CJX2-8087129127401056.5
CJX2-95

Matching coil volts
Voltage volts244248110220230240380400415440500660
50HZB5D5E5F5M5P5U5Q5V5N5R5S5Y5
60HZB6D6E6F6M6-U6Q6--R6--
50/60HZB7D7E7F7M7P7U7Q7V7N7R7--

Features:

Compact size, Light-weight, little power consumption, long service life, safe and reliable.

CJX2 series AC Contactor is suitable for using the circuit up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting&controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter, With the thermal relay.

Power terminations options:
 Lugs(standard)
 SEMS clamp
 Binding head screws
 Quick connects

Replacement coils and contact kits are available
Standard: IEC60947-4, GB14048.4

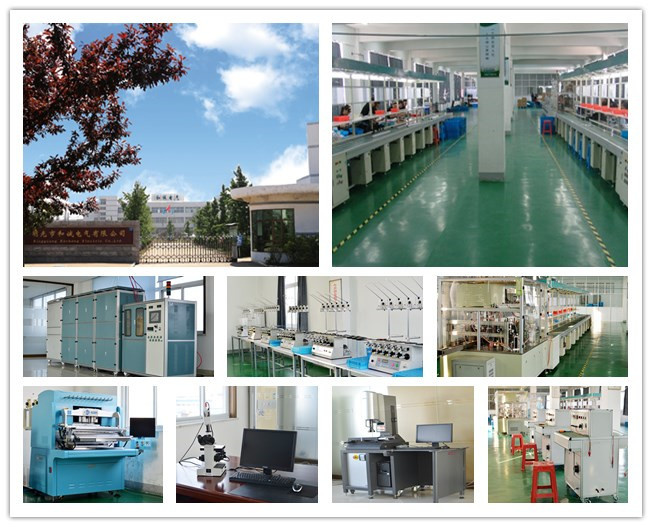

Workshop:
