Cjx3 AC Contactor

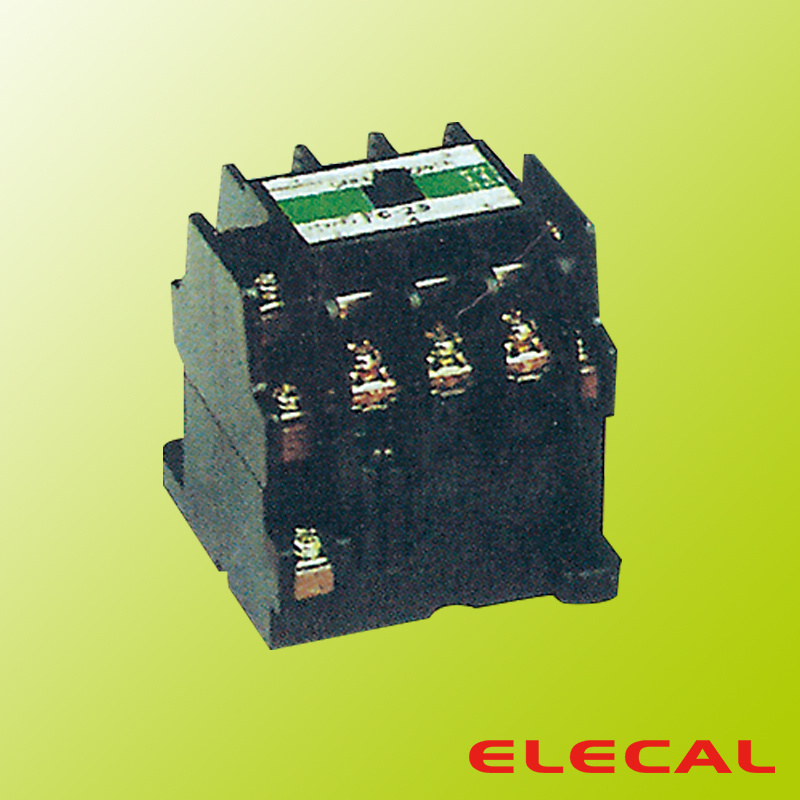

Name: Cjx3 AC Contactor
Brand: all-electronics-online.com
SKU: 765298505
Availability: InStock
Rating: 4.9 (22 reviews)

Price:	US $ 4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Miniature
Theory:	Electromagnetic Relay
Usage:	Household Appliances Relay, Communication Relay
Protective Characteristics:	Open Relay
Load:	Medium Power Relay
Action Principle:	Electromagnetic Type

Product Description

1. Application

CJX3 series AC contactor is used to 50Hz or 60Hz, rated working voltage 660V, rated work-ing current 80A electric power system, to switch on and off circuit and AC motors in frequentcontrol, protecting overload circuit. It conforms to IEC60947-1 standard.

2. Specification

Type	Rated insulating voltage(V)	Rated heating current(A)	AC-3 controlled power(kW)			Operating rotation time//hour(AC-3)	Electrical life AC-3(104)	Mechani-cal life(104)	Coil power starting/ workingVA/VA
Type	Rated insulating voltage(V)	Rated heating current(A)	220V	380V	660V	Operating rotation time//hour(AC-3)	Electrical life AC-3(104)	Mechani-cal life(104)	Coil power starting/ workingVA/VA
CJX3-10	690	20	3.5	5.5	5.5	600	100	500	60/2.2
CJX3-11		20	3.5	5.5	5.5
CJX3-12		26	3.7	5.5	5.5
CJX3-16		26	3.7	5.5	5.5				85/3
CJX3-18		30	5.5	7.5	7.5				85/3
CJX3-19		30	5.5	11	11				175/5
CJX3-25		45	7.5	15	15				175/5
CJX3-35		50	7.5	15	15				270/8
CJX3-50		65	11	22	22
CJX3-65		80	15	30	30
CJX3-80		110	19	37	37

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
