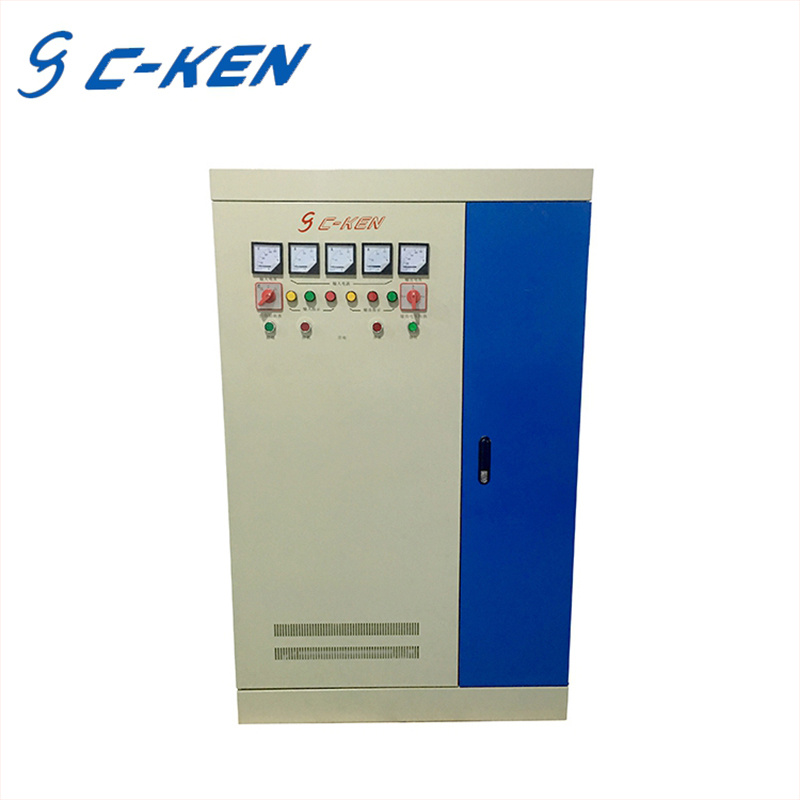

Cken 600 kVA AC Automatic SBW Big Power Voltage Stabilizeer Regulator

Name: Cken 600 kVA AC Automatic SBW Big Power Voltage Stabilizeer Regulator
Brand: all-electronics-online.com
SKU: 731915052
Availability: InStock
Rating: 4.9 (117 reviews)

Price:	US $ 5500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SBW-600kva
Current Type:	AC
Phase:	Three Phase
Usage:	SVC
Frequency:	Industrial Frequency
Power Source:	AC
Application Range:	All
Brand:	Cken

Product Description

Product use conditions:

1.Temperature envi ronment:-15°C - +40°C;
2.Altitude:< 1000m;
3.Relative humidity:90%;
4.No gas,steam,chemical precipitate,dust,dirt or any explosive or corrosive medium,which can seriously affect the insulation of voltage stabilizer in the installation place.
5.No serious vibration or jolt in the installation place.

Model No

Model No.	CKEN SBW-600KVA
Item Name	DBW,SBW Pointer Display Big Power Voltage Stabilizers
Input Voltage	Three-phase: four-wire phase voltage: 220V±20% 220V±30% wire voltage: 380V±20% 380V±30%
Input Voltage	Single-phase:220V±20% or 220V±30%
Output Voltage	Three-phase: four wire phase voltage: 220V wire voltage: 380V
Output Voltage	Single-phase: 220V
Accuracy of Output Voltage	2-5%(adjustable)
Efficiency	≥95%(power class: more than 50KVA)
Response Speed	≤1.5s(when outside voltage has 10% of change )
Waveform Distortion	No additive waveform distortion
Insulation Resistance	≥2MΩ
Electric Strength	Bear power frequency sine voltage 2,000 for 1 min without breakdown or flash over
Overload Capability	2 times rated current, keeping 1 min (voltage stabilizer special for elevator and CT)
Protection	Protection against over voltage, over current, phase failure and machine fault, as well as phase sequence protection(single-phase and three-phase 150KVA below has no phase failure and is provided with phase sequence protection)
Can work continuously for long time without anybody attending
Start automatically or by hand (can be chosen) when power is on
Voltage stabilization, convenient switching for commercial power Single-phase has no function

We are a high and new-tech enterprise specialized in research, development, production, and marketing. The leading products include voltage stabilizers, kwh meters, meter parts, power supply parts, transformers and other power supply goods.

Our company ranks leading in passing ISO9001 quality management system certification. The products have obtained certificates like CE and also domestic CCC and CQC. We keep carrying on the development and research of new products. We will abide by quality promise with the spirit of expansion, innovation and marketing.

We believe that our company will be more powerful and far better by your support!
