ZHEJIANG CKEN ELECTRIC CO., LTD. >> Cken Fit for 40 Inch LED TV Single Phase 50Hz/60Hz Frequency Servo 10 kVA Voltage Stabilizer

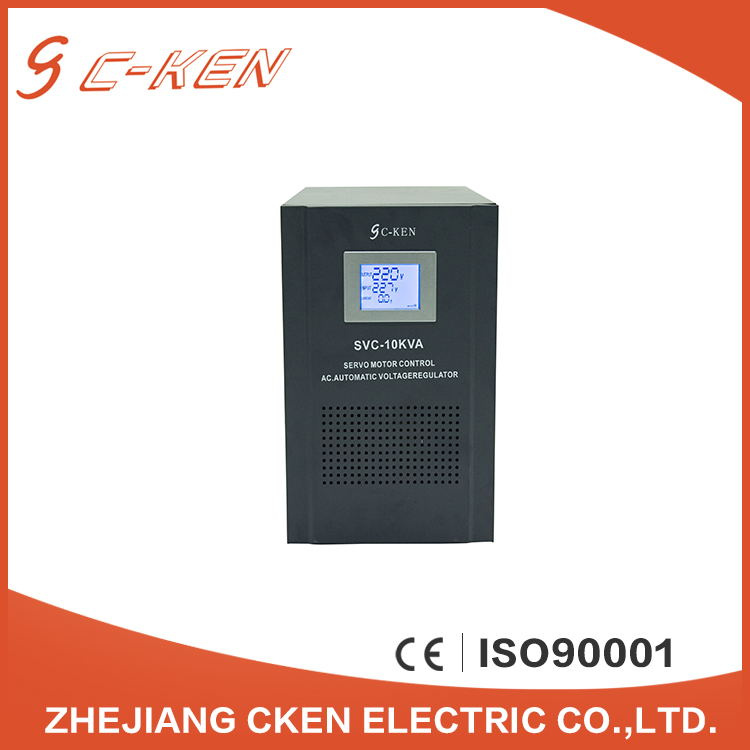

Cken Fit for 40 Inch LED TV Single Phase 50Hz/60Hz Frequency Servo 10 kVA Voltage Stabilizer

Cken Fit for 40 Inch LED TV Single Phase 50Hz/60Hz Frequency Servo 10 kVA Voltage Stabilizer
Price: US $ 69.9-120.9/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SVC
Current Type: AC
Phase: Single Phase
Usage: SVC
Frequency: 50/60Hz
Brand: Cken

Product Description

Genaral:

SVC single-phase and three-phase high accuracy full-automatic AC voltage stabilizer is one kind of our dominant products, made up of contact auto voltage regulator, servo motor, automatic control circuit, etc. When the power network voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then, the output voltage will be adjusted to rated value and get a steady state.



Main Advantage:

This voltage stabilizer is of common type, it has the function of connecting through the commercial power. Compared with other voltage stabilizers, it has the advantage of great variety , complete specification, nice appearance and obvious features of high efficiency, no wave distortion, reliable performance, working continually for long time. Besides, it is provided with short time delay and over voltage protection, and the long time delay and under voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.



Model No.

 CKEN SVC-5KVA 10KVA

Item Name

 SVC,Single Phase AC Automatic Voltage Stabilizer

Input Voltage

 160V∼250V,120V∼250V,90V∼250V

Output Voltage AC 220V±3%,110V±3%

Accuracy of Voltage Stabilization

 220V±3%,110V±6%
Frequency 50H/60Hz
Protection Over Voltage 246±4V
Max Of Output Current 50A
Phase Single Phase
Ambient Temperature -5∼ +40
Insulation Resistance ≥2MΩ
Waveform Distortion NO additional waveform distortion

Adjustable Time

 <1s (when input voltage has a change of 10%)
Dielectric Strength 1500V/1min
Load Power Factor 0.8


Company Information

Zhejiang Cken Electric Co., Ltd. (Formerly known as Yueqing Qianjiang electric meter factory in City, ) was founded in 1993,And it is one of the manufacturer to earlier specialized in producing electrical energy meter, With the accumulation and development of the company for many years ,the company has launched a variety of products, such as The high accuracy Stabilizers, Regulators, transformers. And it has all kinds of high precision equipment, strong technical force, advanced production technology, complete product specifications. The company has a variety of products have been issued by the State Quality and Technical Supervision measurement equipment manufacturing license.

The company adhere to the "customer first, quality first, reputation first" purpose, Product sales network throughout the country and exported to Pakistan, Nepal, Bangladesh, the Middle East, Iraq, the Philippines, Italy, Sudan, Taiwan, Hong Kong and other countries and regions.



We are a high and new-tech enterprise specialized in research, development, production, and marketing. The leading products include voltage stabilizers, kwh meters, meter parts, power supply parts, transformers and other power supply goods.

Our company ranks leading in passing ISO9001 quality management system certification. The products have obtained certificates like CE and also domestic CCC and CQC. We keep carrying on the development and research of new products. We will abide by quality promise with the spirit of expansion, innovation and marketing.

We believe that our company will be more powerful and far better by your support!
