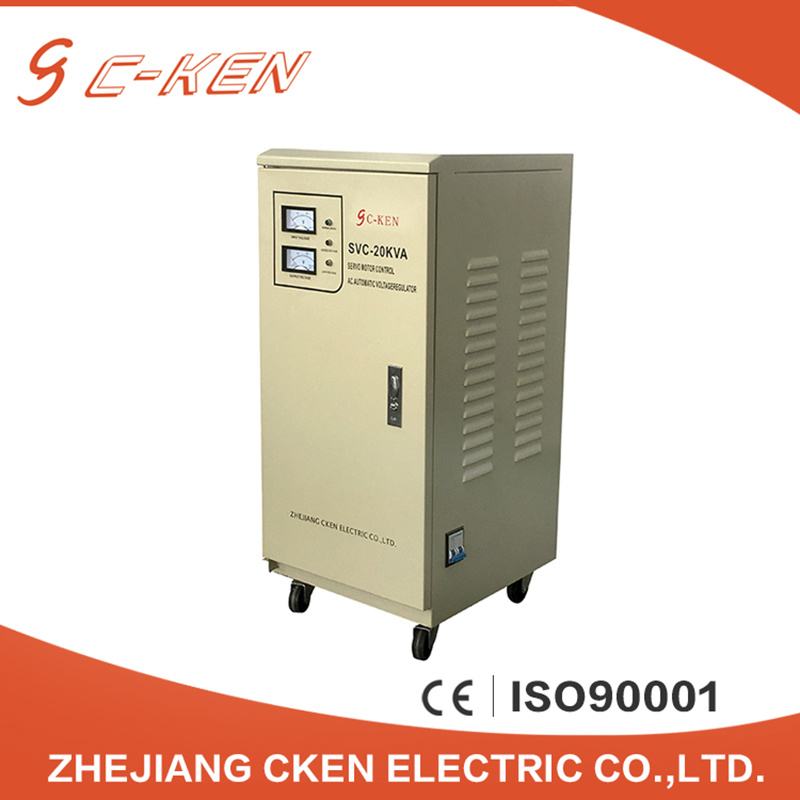

Cken Single Phase High Quality SVC 20kVA Automatic Voltage Stabilizer

Name: Cken Single Phase High Quality SVC 20kVA Automatic Voltage Stabilizer
Brand: all-electronics-online.com
SKU: 731858102
Availability: InStock
Rating: 5 (37 reviews)

Price:	US $ 319/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC-20KVA
Color:	Grey,Blue,Red
Certificate:	Ce/ ISO9001
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Industrial Frequency
Power Source:	AC
Application Range:	All
Brand:	Cken

Product Description

Product Properties

Model No.	CKEN SVC-20KVA
Item Name	SVC,Single Phase AC Automatic Voltage Stabilizer
Input Voltage	160V∼250V,120V∼250V,90V∼250V
Output Voltage	AC 220V±3%,110V±3%
Accuracy of Voltage Stabilization	220V±3%,110V±6%
Frequency	50H/60Hz
Protection Over Voltage	246±4V
Max Of Output Current	25A
Phase	Single Phase
Ambient Temperature	-5∼ +40
Insulation Resistance	≥2MΩ
Waveform Distortion	NO additional waveform distortion
Adjustable Time	<1s (when input voltage has a change of 10%)
Dielectric Strength	1500V/1min
Load Power Factor	0.8

We are a high and new-tech enterprise specialized in research, development, production, and marketing. The leading products include voltage stabilizers, kwh meters, meter parts, power supply parts, transformers and other power supply goods.

Our company ranks leading in passing ISO9001 quality management system certification. The products have obtained certificates like CE and also domestic CCC and CQC. We keep carrying on the development and research of new products. We will abide by quality promise with the spirit of expansion, innovation and marketing.

We believe that our company will be more powerful and far better by your support!
