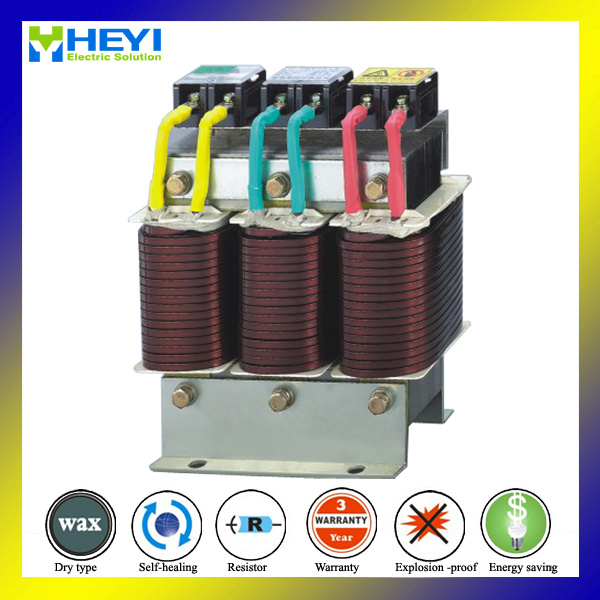

Cksg Filter Series Reactor Three Phase Reactor Price

Prod Model:	CKSG-18KVAR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Client Design
Color:	Grey
Package:	According to Client Requirement
Product Feature:	Electrical Harmonic Filter Reactor
Hand Sample Time:	Within 3-5 Days
Port:	Ningbo/Shanghai
Ultrasonic Reactor Function:	Ultrasonic Reactor Protect Power Capacitor
Ultrasonic Reactor Type:	Dry Type
OEM:	Accept
Material:	Cold Roller Silicon Steel Sheet
Phase:	Three
Application:	Rectifier
Coil:	Core-type Transformer
Winding Type:	Separated Winding Transformer
Cooling Method:	Dry-type Transformer
Brand:	OEM

Product Description

CKSG Filter Series Reactor three phase Reactor Price
1.Filter reactor low loss cold roller silicon steel sheet
2.anti corrosion exposed parts
3.low temperature rise, low loss
CKSG-10/three phase Ultrasonic Reactor for filter harmonic 0.4KV 20KVAR 6%
 The coil and the iron core filter reactor assembled into a body after pre drying, vacuum impregnation, heat dryingcuring this process, using H grade varnish, make the reactor coil and core firmly together;

CKSG Filter Series Reactor three phase Reactor Price specification

Type	Capacity kvar	Rated voltage	Rated current	Rated react %	SIZE 6%	Size 12%
CKSG-10/0.525-12	10	0.525	14.4	12	195*100*160	195*130*160
CKSG-15/0.525-12	15	0.525	21.7	12	195*120*160	240*135*185
CKSG-20/0.525-12	20	0.525	28.9	12	240*130*185	280*135*280
CKSG-25/0.525-12	25	0.525	36.1	12	240*135*185	280*150*280
CKSG-30/0.525-12	30	0.525	43.3	12	240*150*185	280*160*280
CKSG-35/0.525-12	35	0.525	50.5	12	240*170*185	310*160*280
CKSG-40/0.525-12	40	0.525	64.9	12	280*135*280	310*165*270
CKSG-50/0.525-12	50	0.525	79.3	12	280*150*280	320*175*275
CKSG-60/0.525-12	60	0.525	93.7	12	280*160*280	340*180*290
CKSG-80/0.525-12	80	0.525	122.5	12	340*180*290	350*200*300
CKSG-100/0.525-12	100	0.525	151.3	12	340*190*300	360*220*320

Specification	Detail data
Insulate construction	Dry type reactor
Is there iron core	Iron core reactor
Function	Filter reactor
Rated current	30~895 A
Match capacitor capacity	1~50000kvar
Insulate class	Class F and H 3kv
Humidity	More than 90%
Filter reactor noise	Less than 45db
Temperature limit for filter reactor body	Iron core less than 85k Electrical core less than 95k
Long working condition	1.35 time rated current within harmonic current
The reactance value linearity	Less than 0.95 between 1.8time rated current reactance and rated current value


CKSG Filter Series Reactor three phase Reactor Price advantage
1.global leading profession manufacture of filter reactor
2.100% pure copper for inside core , iron steel instruction with anti rust
3.Monthly production : 100000pcs
4.Fast delivery : you will get the order when you need it
5.2000 square meter workroom for 100worker
6.OEM is warmly welcome
7.Convenient : 45 minutes to wenzhou airport

CKSG Filter Series Reactor three phase Reactor Price function
1 Improve voltage distribute on each line
2. Balance reactive power when overload circuit ,reduce power loss on the line
3.When the reactor neutral grounding via small reactor device,Also available small reactor compensation line and phase to ground capacitance,to accelerate the arc current automatically extinguished, easy to use

CKSG Filter Series Reactor three phase Reactor Price Payment terms
1. 30% T/T advance , the balance against to the copy B/L
2. The other specific issues can negociate.
3. Pls confirm the details with us before do the prepayment.

CKSG Filter Series Reactor three phase Reactor Price Packing information
1. Each with wooden pacakge
2.2pcs/ctn , flap into wooden  carton
3. G/N.W: 30/28kg
4. We can packing as your required

Why choose CKSG Filter Series Reactor three phase Reactor Price
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)2000 square meters work environment
