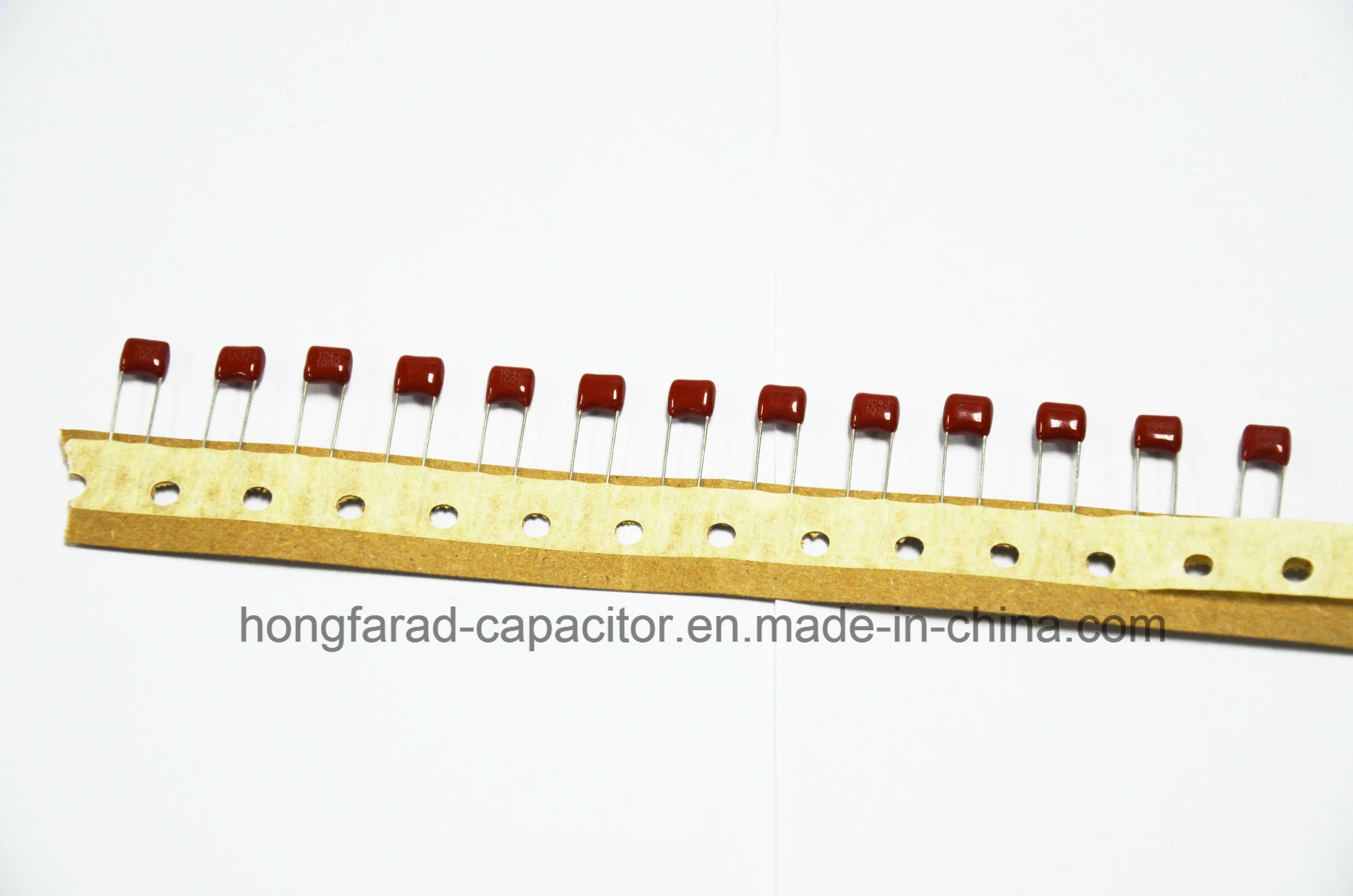

Cl21 Mef Metallized Polyester Capacitor for Lighting

Features and Applications

1.Metallized polyester film , non-inductive wound construction
2.Wide capacitance range , small size , and light weight
3.Long life due to self-healing effect
4.Flame retardation epoxy resin coating

5. Suitable for blocking, by-pass and coupling of DC and signals to VHF range

6. Widely used in filter and low pulse circuits

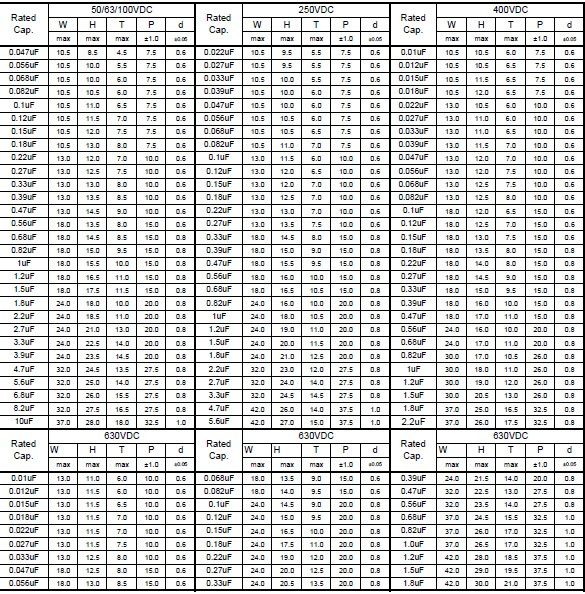

Specifications

 Reference Standard:          GB/T 7332 (IEC 60384-2)

Climatic Category:               40/105/21

  Rated Temperature:           85ºC

 Rated Voltage:                    50/63V, 100V,250V,400V,630V, 1000V,1250V

Capacitance Range:             0.01uf~10.0uf

Capacitance Tolerance:       ±5%(J) , ±10%(K)

Voltage Proof:                      1.6Ur(5s)

Dissipation Factor:                ≤1.0%(20ºC,1KHz)

Insulation Resistance :        Ur≤100V,  ≥3 750MΩ, Cr≤0.33uf

                                                              ≥1 250s   Cr>0.33uf    (20ºC,10V,1 min)

                                                 Ur>100V ,  ≥9 000MΩ, Cr≤0.33uf

                                                              ≥3 000s   Cr>0.33uf    (20ºC,100V,1 min)

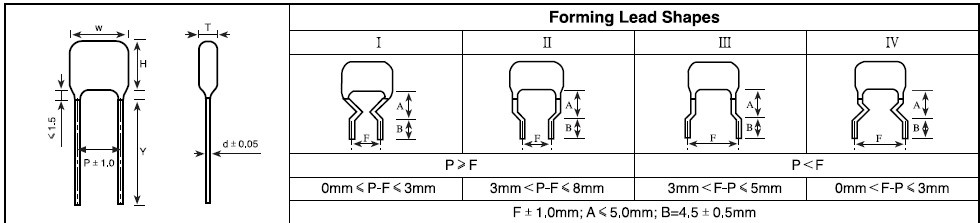

Outline Drawing

Welcome to visit our factory!

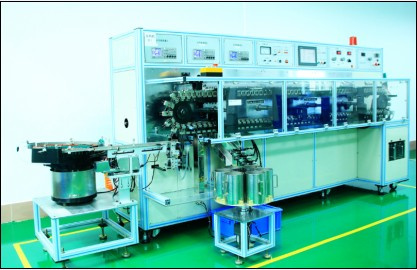

Our Laboratory

Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.

Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.

Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.

Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.

Question 5 :  What's your delivery time?
Answer :  It is about 2-3 weeks, if your goods are required urgently, please contact us firstly.
