Clamp Adaptor 1000A Current Sensor Clamp on Current Transformer

Name: Clamp Adaptor 1000A Current Sensor Clamp on Current Transformer
Brand: all-electronics-online.com
SKU: 672683381
Availability: InStock
Rating: 4.4 (86 reviews)

Price:	US $ 255/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q110
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Q110:	Clamp-on Current Transformer
Primary Current:	0-1000A
Secondary Current:	0-5A
Precision:	Class 0.2%, 0.5%
Temperature:	-20~55
Dimension:	163mm310mm34mm
Jaw Diameter:	110mm
Weight:	900g
Load:	2.5va
Output Cable Length:	2.5m Cable
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

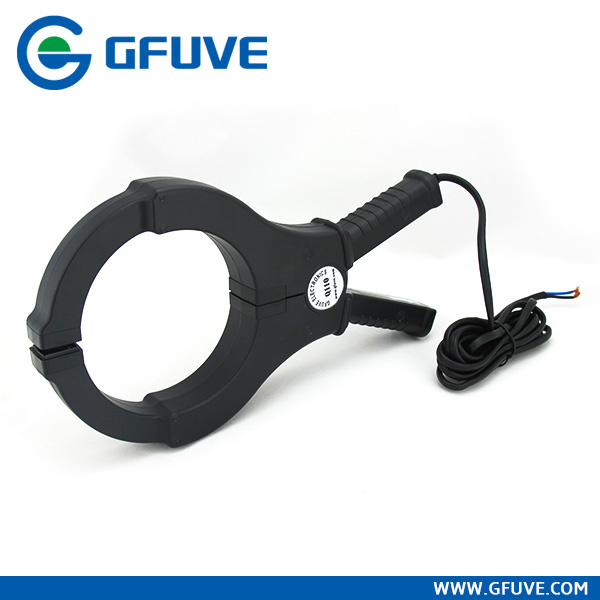

Q110 Clamp Adaptor 1000A Current Sensor Clamp on Current Transformer

The model Q110 1000A Current Sensor Clamp on Current Transformer is a high accuracy ct, the advanced design ensures enhanced linearity and the jaw opening system provides enhanced safety.
FEATURES
This product can be used in large current situation; also can cooperate to cable fault tester and cable identification device, used for cable test work.
Holding wire diameter: φ110mm
Dimension: 163mm×310mm×34mm
Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output

PARAMETERS

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.2%, 0.5%
Primary current	0 - 1000A AC
Secondary current	0 - 5A AC (customized)
Output signal	500mA,1A,5A AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032
Installation	clamp type
Output mode	lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	163 x 310 x 34
Weight (g)	900
Holding wire diameter (mm)	φ110
Max. jaw opening (mm)	110
