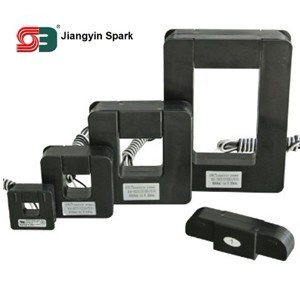

Clamp CT Split Core Current Transformer

Name: Clamp CT Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 710813785
Availability: InStock
Rating: 4.9 (98 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-0750/1250/2000/3000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Split Core Current Transformer
Output:	0.333V
Certificates:	UL,ETL,CE,RoHS
Application:	Lighting
Phase:	Single
Type:	Split Core Current Transformer

Product Description

Split core current transformer Features:

Features:
Split core design
Safer, easy to install
Portable
Specifications:
Case materials: Nylon, resin and UL flame
Rated primary current: 50 to 3, 000A AC
Rated secondary voltage: 0.333 to 3.53V AC
Accuracy class: 1.0
Rated security coefficient: FS< 5
Retardant rating: 94-V0
Highest voltage for equipment Um (RMS): 720V AC
Rated power-frequency withstand voltage (RMS): 3, 000V AC
Frequency range: 50/60Hz
Operating temperature: -15 to 60° C
Leads: 0.8ft (240mm), UL 1015, twisted pair, 0.34mm2 (22AWG)
RoHS Directive-compliant
Applications:
Measures AC current flow to electric motors, lighting and air condition equipment
Compatible with HVAC temperature control, power management and building automation systems

MODEL	I. D.	Rated Amps	Output	Accuracy	SIZE (mm)
MODEL	I. D.	Rated Amps	Output	Accuracy	A	B	C	D	E
XH-SCT-0750	0.75"	5, 15, 30, 50, 70, 100, 150, 200	0.333V	1.0	51.6	54.1	16.6	19.1	18
XH-SCT-1250	1.25"	70, 100, 150, 200, 250, 300, 400, 600		1.0	82.3	85.3	26.4	32	32.3
XH-SCT-2000	2.00"	400, 600, 800, 1000, 1200, 1500		1.0	120	125	29.6	52.5	52
XH-SCT-3000	3.00" x 5.00"	1000, 1200, 1500, 2000.3000		1.0	145	199	30.5	76	130
XH-SCT-5000	5.90" x 5.90"	1000, 1200, 1500, 2000.3000		1.0	220	225	30	150	150
