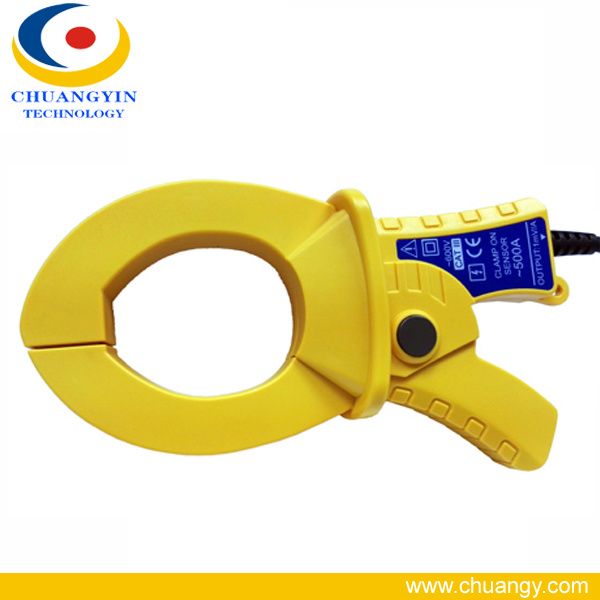

Clamp Current Transformer, Clamp CT 500A

Name: Clamp Current Transformer, Clamp CT 500A
Brand: all-electronics-online.com
SKU: 810077125
Availability: InStock
Rating: 4.9 (83 reviews)

Price:	US $ 55-80/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-QCT03-46
Company:	Manufacturer
Rated Primary Current:	500A AC
Output Voltage:	1mv AC/a
Phase Accuracy:	±0.5%
Cable Length:	About 3.1 M
Weight:	About 380g
Window Size:	46mm
Application:	Electronic
Type:	Current Transformer
Phase:	Single
Operation Condition:	Indoor/Outdoor

Product Description

Description:

This type CT is designed for easy installation in tight spaces and environment without removing the main busbar or cable .The connector uses the holding pressure of folding structure .Safe isolation to protect the user from direct contact with the electrified body.Meet the 600V ,CAT III secure degree.

Features:

*Flexible and light weights, exquisite appearance
*Easy & quick installation in tight spaces
*Excellent linearity
*Maximum measuring current up to 550A

Applications:

*Power quality monitoring
*Smart logger
*Distributed measurement systems

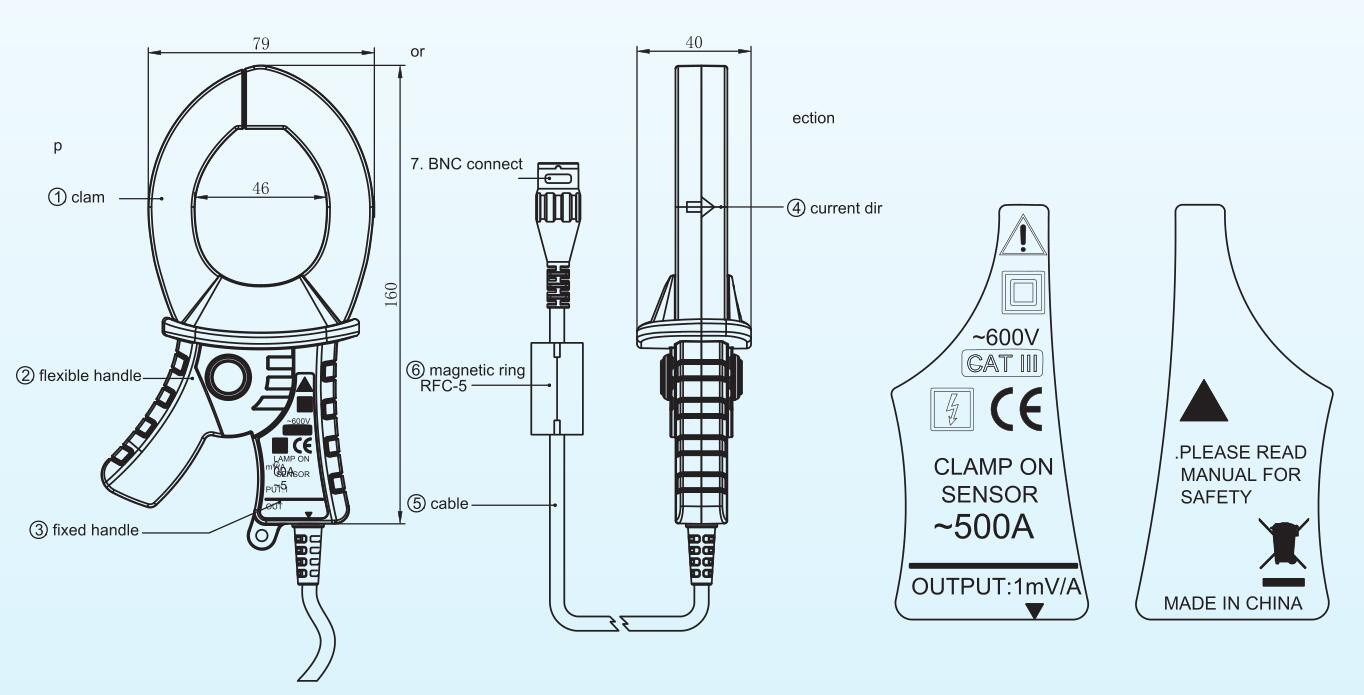

Drawing:

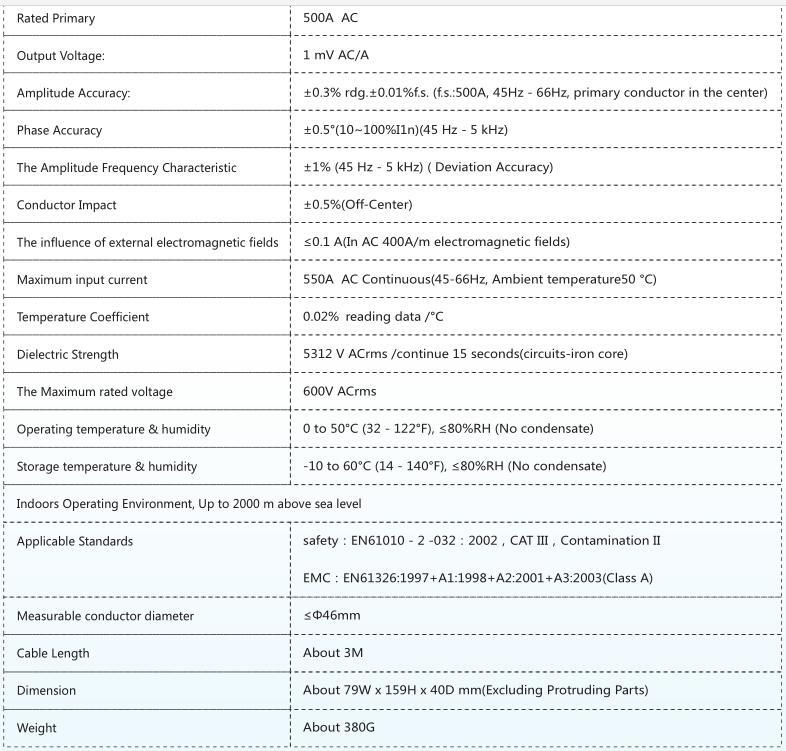

Parameters:

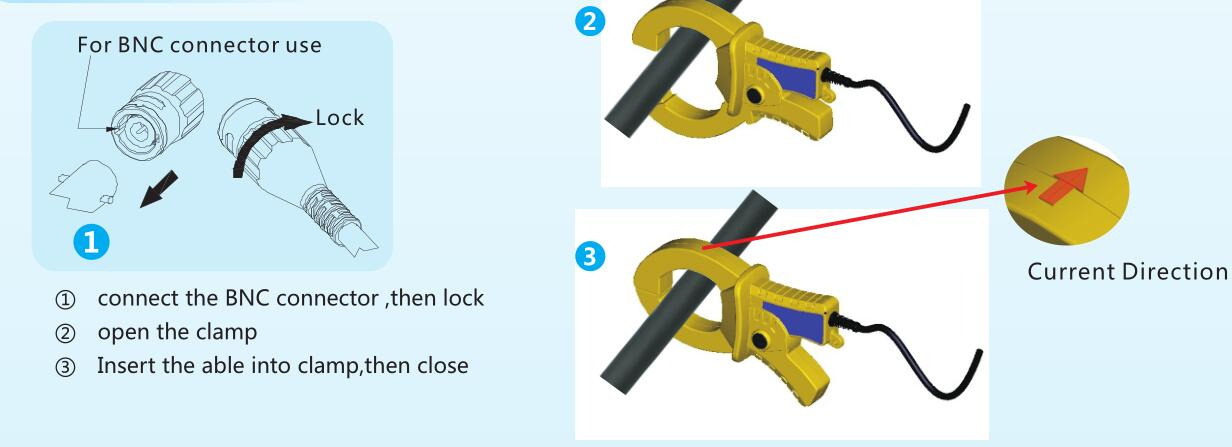

Demonstration:

Company Profile:

Shenzhen Chuangyin Technology Co., Ltd is a national high-tech enterprise which specializes in MV /LV Current transformer, Potential transformer, Switchgear Components, Cable Accessories, Split Core Current Transformer, Clamp-on CT, Rogowski Coil, Instrument Transformer, Magnetic Latching Relay, and Shunt with integrated ability of R&D, manufacturing, sales and service.

Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd., Shenzhen High-Tech Zones, Nanshan, Shenzhen, China,
Post code: 518057
Tel: +86 0755-86000302/ 8600709
Fax: +86 0755-86000614
Web: www.chuangy.com

Mr. Eric Bin
Business Development Executive
Mob +86 135 4330 2386

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.
