Name: Clamp on Cts CT Transformer Test Equipment Current Transformer Cheap Current Sensor
Brand: all-electronics-online.com
SKU: 797728395
Availability: InStock
Rating: 4.6 (82 reviews)

Price:	US $ 60-80/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-QCT02-15
Frequency:	45-66Hz
Insulation Class:	Cat III
Customized:	Customized
Operation:	Easy
Accuracy:	High
Rated Primary Current:	5A AC /100A AC
Output Voltage:	10mv AC/a /1mv AC/a
Clamp-on Current Transformer:	Clamp-on Current Transformers
Application:	Rectifier
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chuangyin

Product Description

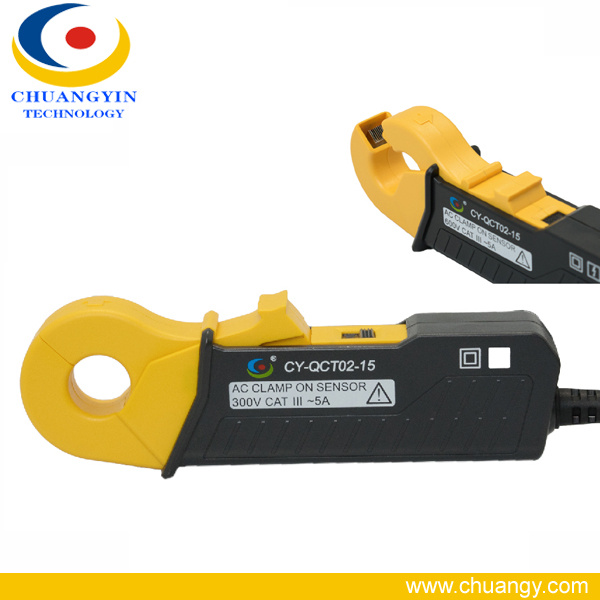

Clamp on Cts CT Transformer Test Equipment Current Transformer Cheap Current Sensor

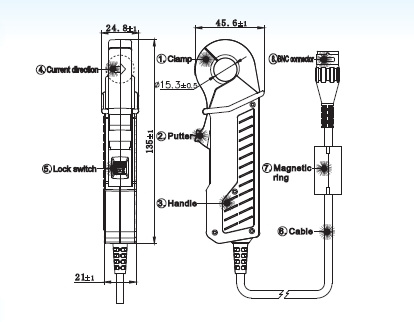

The "QCT0215 Clamp-on Current Transformer" is designed for easy installed in tight spaces

and without the need for dismantling the primary busbar or cables. The sensing head uses

sliding push-fit clamp structure, safety isolation to avoid the user to contact with charged

objects directly. It complies with CE standards and meets 300V CAT III safety class.

Features:

Flexible and light weights, exquisite appearance

Easy &quick installation in tight spaces

Excellent linearity

Maximum measuring current up to 130A

Applications:

Power quality monitoring

CT secondary current detection

Smart logger

Distributed measurement systems

General data

Operating temperature&humidity: 0 to 500C(321220F),580%RH(No condensate)

Storage temperature&humidity:10 to 600C(141400F), X80%RH(No condensate)

Operating environment: Indoor, altitude up to 2000 meters

Standards Safety: IEC61010-1:2001,300V CAT
