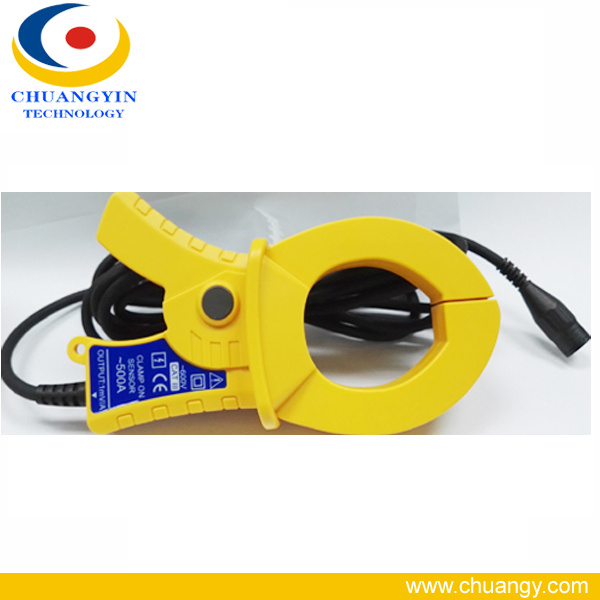

Clamp on Current Transformer Factory Supply High Accuracy High Quality

Name: Clamp on Current Transformer Factory Supply High Accuracy High Quality
Brand: all-electronics-online.com
SKU: 800163705
Availability: InStock
Rating: 4.4 (119 reviews)

Price:	US $ 65-70/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-QCT03-46 [500A]
Spical Ues CT:	Clamp-on
Cy-Qct03-46:	500A
Operation:	Easy and Convenient
Amazing Design:	Clamp on Current Transformer
Accuracy:	0.5class
Color:	Yellow~Blue
Measurable Conductor Diameter:	< 46mm
Rated Primary:	500A AC
Cable Length:	About 3m
Weight:	About 380g
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

clamp on current transformer factory supply high accuracy high quality

Company :
95% customers come back to us for repeat orders
Sample Ready in 3-7 days
NO MOQ
Over 20 years` experience
many models to choose from
10 new designs yearly
replies within 24 hours

Introduction:

This type CT is designed for easy installation in tight spaces and environent
without removing the main busbar or cable The connector uses the holding
pressure of folding structure. Safe isolation to protect the user from direct
contact with the electrified body.Meet the 600V ,CAT III secure degree.

Features:
1. Flexible and light weights, exquisite appearance
2. Easy &quick installation in tight spaces
3. Excellent linearity
4. Maximum measuring current up to 550A
Specification:

Technical index:

Item		Parameter
Rated Primary		500A AC
Output voltage		1Mv AC/A
Amplitude Accuracy		±0.3%rdg. ±0.01%f.s.(f.s:500A,45Hz-66Hz,primary conductor in the center)
Phase Accuracy		±0.5º(10-100%IIn )(45Hz-5kHz)
The Amplitude Frequency Characteristic		±1%(45Hz-5kHz)(Deviation Accuracy)
Conductor Impact		±0.5%(off-center)
The influence of external electromagnetic fields		≤0.1A(In AC 400A/m electromagnetic fields)
Maximum input current		550A AC Continuous (45-66Hz,Ambient temperature50º C
Temperature Coefficient		0.02%reading data /º C
Dielectirc strength		5312V ACrms/continue15seconds(circuits-iron core)
The Maximum rated voltage		600V crms
Operating temperature &humidity		0 to 50º (32-122º F), ≤80%RH(NO condensate)
Storage temperature &humidity	-10º C to60º C(14-140º F), ≤80%RH(NO condense)
Indoors operating environment ,UP to 2000m above sea level
Applicable Standards		Safety:EN 61010-2-032:2002,CATIII ,Contamination II EMC:EN 1326:1997+A1:1998+A2:2001+A3:2003(classA)
Measurable conductor diameter		≤Ø46mm
Cable Length		About3M
Dimension		About 79W159H40Dmm (Excluding Protruding parts)
Weight		About 380G

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
