Clamp-on Current Transformer for Megohmmeter Modelpower Clamp on Meter
| Price: |
US $ 60-76/Piece |
| Trade Terms: |
FOB,CFR |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CY-QCT 02-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
45-66Hz |
| Insulation Class: |
Cat III |
| Customized: |
Customized |
| Operation: |
Easy |
| Accuracy: |
High |
| Rated Primary Current: |
5A AC /100A AC |
| Output Voltage: |
10mv AC/a /1mv AC/a |
| Clamp-on Current Transformer: |
Clamp-on Current Transformers |
| Application: |
Rectifier |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Chuangyin |
Product Description
WE'RE MANUFACTURER.

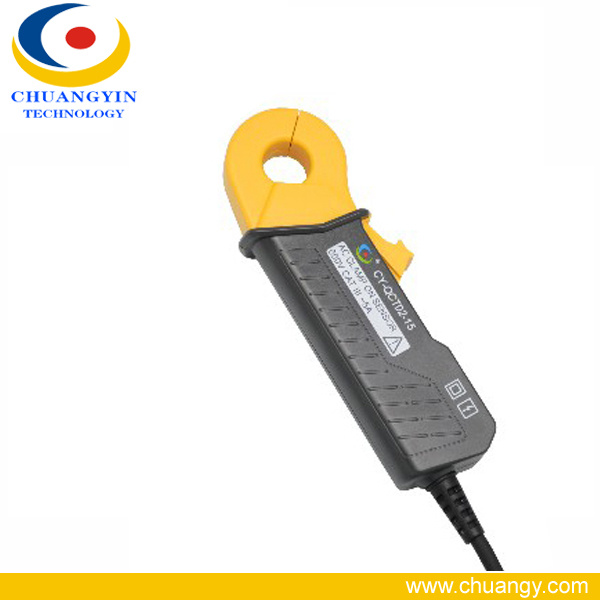

5A/100A Clamp on Current Transformer
Description:
The "QCT0215 Clamp-on Current Transformer" is designed for easy installed in tight spaces
and without the need for dismantling the primary busbar or cables. The sensing head uses
sliding push-fit clamp structure, safety isolation to avoid the user to contact with charged
objects directly. It complies with CE standards and meets 300V CAT III safety class.
Features:
Flexible and light weights, exquisite appearance
Easy &quick installation in tight spaces
Excellent linearity
Maximum measuring current up to 130A
Applications:
Power quality monitoring
CT secondary current detection
Smart logger
Distributed measurement systems

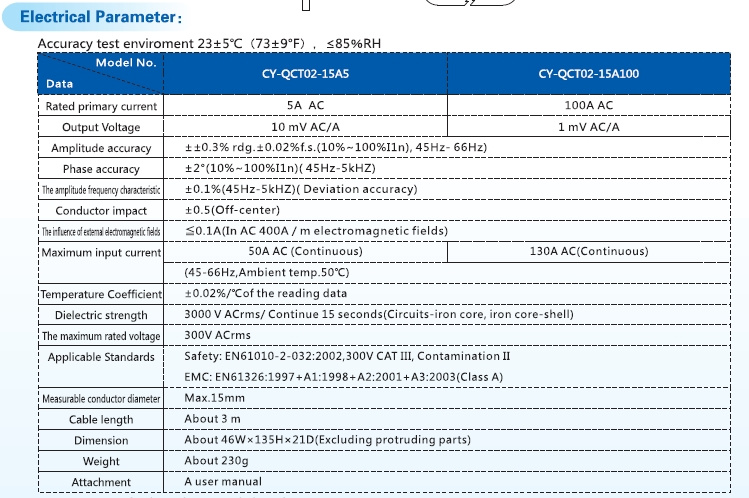

General data:
Operating temperature&humidity: 0 to 500C(321220F),580%RH(No condensate)
Storage temperature&humidity:10 to 600C(141400F), X80%RH(No condensate)
Operating environment: Indoor, altitude up to 2000 meters
Standards Safety: IEC61010-1:2001,300V CAT
Chuangyin promises to her customers: high quality product, good service, fast delivery and reasonable price.
Packing list:
Contact us:
Becky Wang (Manufacturer of LV&MV CT PT Suppliers)
Shenzhen Chuangyin Technology Co.,Ltd. (Website:www.chuangy.com)
Add:1st Floor,B Block,Jiada R&D Building,5# Song Pingshan Road,Shenzen High-tech Industrial Park,Nanshan,Shenzhen,China
Tel: + 86-755-86000302
Cell Phone: + 86-15889623648
website: www.chuangy.com
Our Services:
How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.or tell us your techincal requirement
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 6-10 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
6.For large order ,there is air shipment or seashipment ,and you tell us the forwarder details
Payment:
1. We accept 100% T/T
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment.
Warranty:
1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.
Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA
Offering a Wide Range of Products
Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds
1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.
2. Cold shrink cable, Separable accessories(EPDM).
3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.
4. CTs and Relays for energy meter.
Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards
We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.
Contact us today to know more.
Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
