| Prod Model: |
CY-QCT03-46 [500A]-002 |
| Spical Ues CT: |
Clamp-on |
| Cy-Qct03-46: |
500A |
| Operation: |
Easy and Convenient |
| Amazing Design: |
Clamp on Current Transformer |
| Accuracy: |
0.5class |
| Color: |
Yellow~Blue |
| Measurable Conductor Diameter: |
< 46mm |
| Rated Primary: |
500A AC |
| Cable Length: |
About 3m |
| Weight: |
About 380g |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
With 500A AC Clamp-on Current Transformer
Company :
95% customers come back to us for repeat orders
Sample Ready in 3-7 days
NO MOQ
Over 20 years` experience
many models to choose from
10 new designs yearly
replies within 24 hours
Introduction:

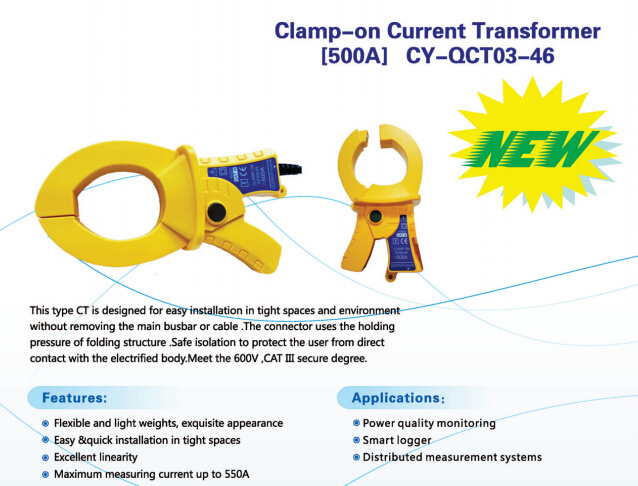

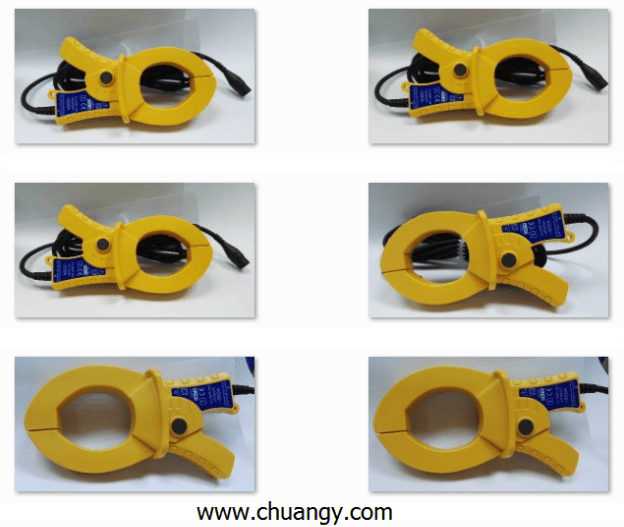

This type CT is designed for easy installation in tight spaces and environent
without removing the main busbar or cable The connector uses the holding
pressure of folding structure. Safe isolation to protect the user from direct
contact with the electrified body.Meet the 600V ,CAT III secure degree.
Features:
1. Flexible and light weights, exquisite appearance
2. Easy &quick installation in tight spaces
3. Excellent linearity
4. Maximum measuring current up to 550A
Specification:
Technical index:

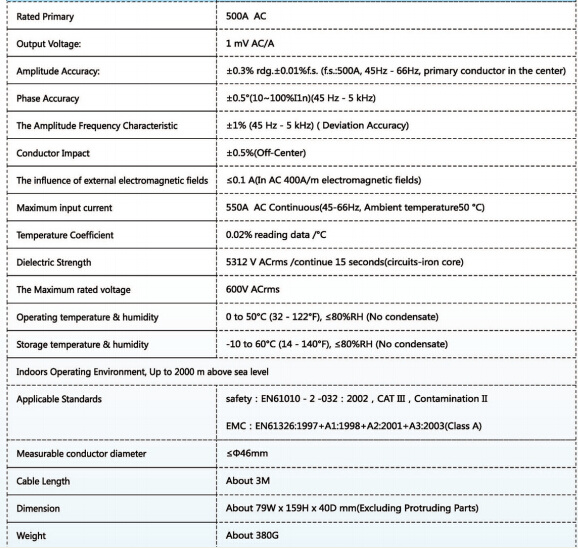

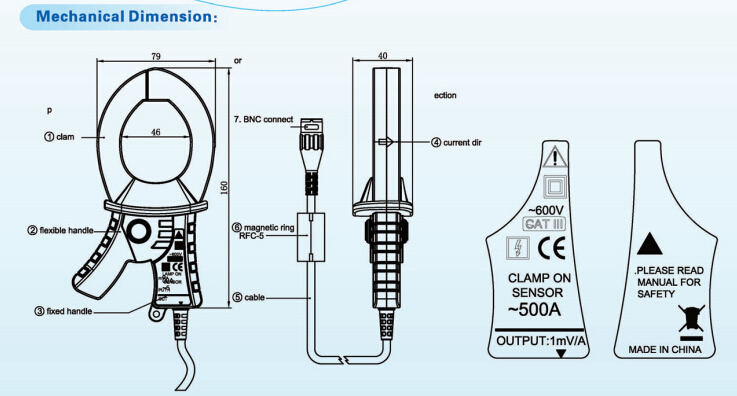

Item | Parameter |
Rated Primary | 500A AC |
Output voltage | 1Mv AC/A |
Amplitude Accuracy | ±0.3%rdg. ±0.01%f.s.(f.s:500A,45Hz-66Hz,primary conductor in the center) |
Phase Accuracy | ±0.5º(10-100%IIn )(45Hz-5kHz) |
The Amplitude Frequency Characteristic | ±1%(45Hz-5kHz)(Deviation Accuracy) |
Conductor Impact | ±0.5%(off-center) |
The influence of external electromagnetic fields | ≤0.1A(In AC 400A/m electromagnetic fields) |
Maximum input current | 550A AC Continuous (45-66Hz,Ambient temperature50º C |
Temperature Coefficient | 0.02%reading data /º C |
Dielectirc strength | 5312V ACrms/continue15seconds(circuits-iron core) |
The Maximum rated voltage | 600V crms |
Operating temperature &humidity | 0 to 50º (32-122º F), ≤80%RH(NO condensate) |
Storage temperature &humidity | -10º C to60º C(14-140º F), ≤80%RH(NO condense) |
Indoors operating environment ,UP to 2000m above sea level | |
Applicable Standards | Safety:EN 61010-2-032:2002,CATIII ,Contamination II EMC:EN 1326:1997+A1:1998+A2:2001+A3:2003(classA) |
Measurable conductor diameter | ≤Ø46mm |
Cable Length | About3M |
Dimension | About 79W*159H*40Dmm (Excluding Protruding parts) |
Weight | About 380G |
Note: Upon request we are glad to offer transformers according to other technical specs.
Note:
Please browse our website and download product catalogue for detailed information.
SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD.
( CY GROUP )
Certification: KEMA, ISO9001, UL, SGS, CE.
( Your reliable partner for CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT )
Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd., Shenzhen High-Tech Zones, Nanshan, Shenzhen, China,
Post code: 518057
Tel: +86 0755-86000302/ 8600709
Fax: +86 0755-86000614
Web: www.chuangy.com
Becky Wang
Business Development Executive
Mob: +86 15889623648
