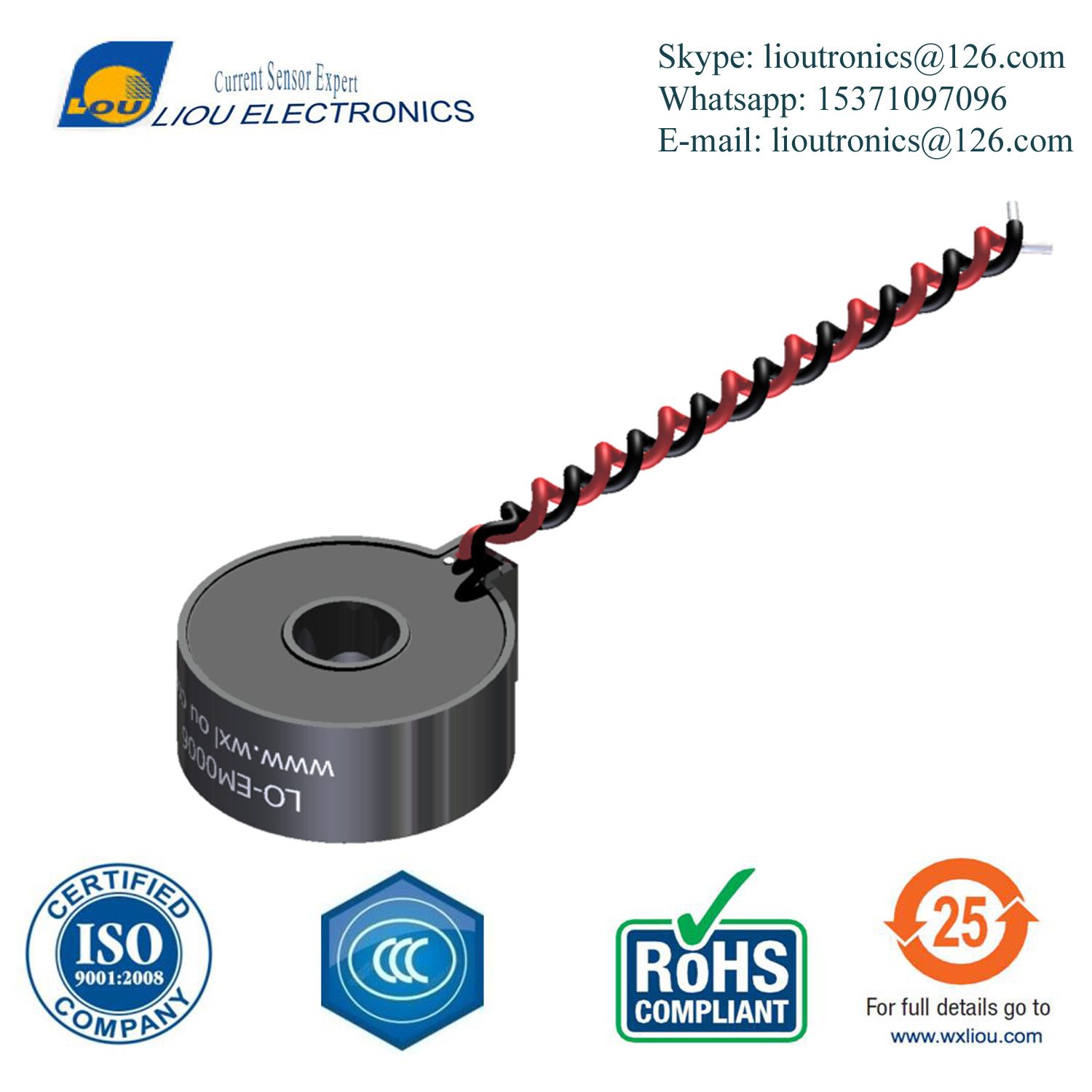

Class 0.1 High Accuracy CT 1: 2000 5A to 2.5mA

Name: Class 0.1 High Accuracy CT 1: 2000 5A to 2.5mA
Brand: all-electronics-online.com
SKU: 822701475
Availability: InStock
Rating: 4.6 (75 reviews)

Price:	US $ 0.4-1.51/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	lo-em0006
Phase:	Single
Flame Retardant:	UL94V-0
Safety Standard:	IEC60044-1
Insulation Class:	Class B
Frequency:	50-60Hz
Production Process:	Plastic Case
Material:	Amorphous Core
Application:	Electricity

Product Description

Description
¨   50/60 Hz,Single Phase,AC Current Sensor
¨   Dynamic Range from 0.25 to 100Amps
¨   Meets IEC62053-21 class 1
¨   Meets IEC 60044-1 class 0.1 Phase error < 5'
¨   Very low temperature coefficient
¨   Meets UL class B (130ºC) thermal insulation system
¨   Meets UL 94V-0
¨ AC isolation resistance: 4KV for 60s

Application
• Electricity meter
•   Recording
•   Power monitoring
•   Energy management
•   Alternative energy monitoring

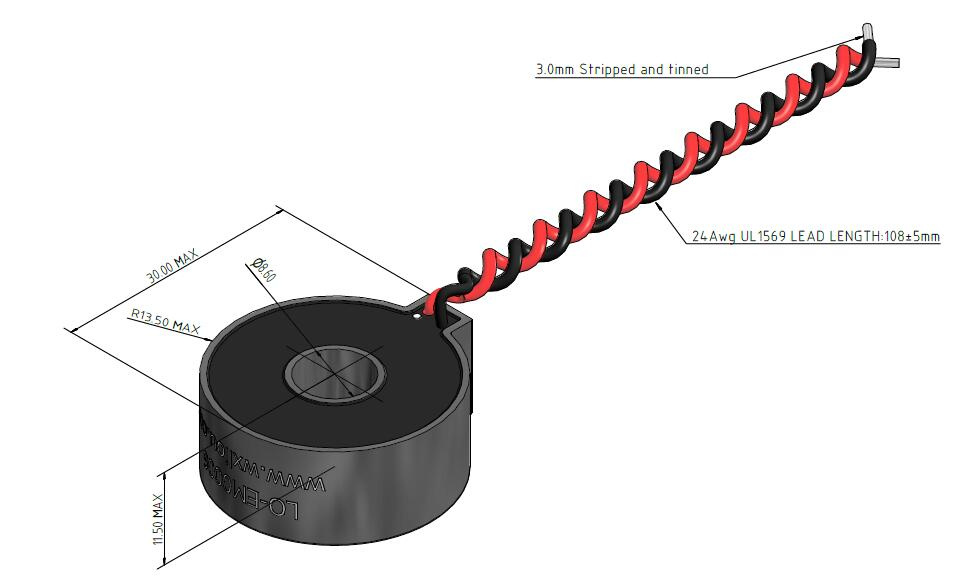

Mechnical specificaiton

ELECTRIC SPECIFICAITON AT 25ºC
Model number	Turns Ration	Ipri⁴	Iout⁵	Iprimax⁶	Ioutmax⁷	R_S	Accuracy Class³	R_L⁸	Weight	Frequency range
Model number	Turns Ration	Amps	mA	Amps	mA	Ohms		Ohms	(g)	(Hz)
LO-EM0006	1:2000	5	2.5	100	50		0.1	15		50-60

Note:
1.Output voltage is proportional to the derivative(di/dt)of the input current based on the Rogowski Coil principle.
2.All current and voltages assumed to be sinusoidal waveforms at Fr, the constant rated frequency in Hz, measured as RMS value.
3.Accuracy class per IEC60044-1Table 11.
4.Ipri=Rated primary current.
5.Iout=Rated secondary current.
6.Iprimax=Sensed max primary current.
7.Loutmax=Sensed max secondary current.

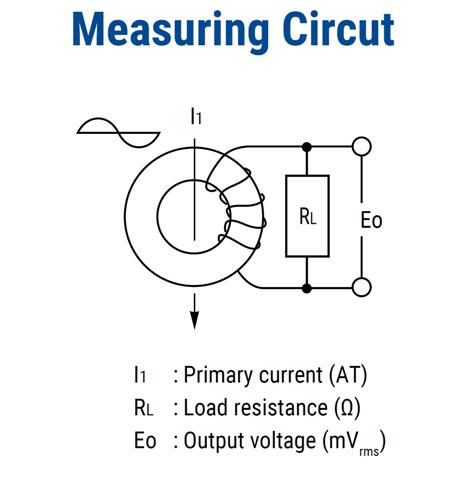

8.R_L=Terminating resistance. Varying terminating resistance increases or decreases output Voltage /Ampers according to following
equation R_L=Vout*Nsec/Ipri

ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range	-40ºC to 85ºC
Storage temperature range	-40ºC to 100ºC
LEADS INFORMATION
24AWG UL1569 Lead wires	Leads length:108±5mm
Stripped and tinned	3±1mm
