Class 0.5 Clamp on Current Transformer Used on Electric Energy Field Metering

Name: Class 0.5 Clamp on Current Transformer Used on Electric Energy Field Metering
Brand: all-electronics-online.com
SKU: 708154812
Availability: InStock
Rating: 5 (38 reviews)

Price:	US $ 90/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWIPROBE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design Advantage:	Clamp on Current Transformer
Accuracy:	0.5 / 1.0 / 3.0 Electric Energy Field Metering
Split Core Transformer Input:	5-630A Electric Energy Field Metering
Split Core Transformer Output:	0.333 1.5 Output

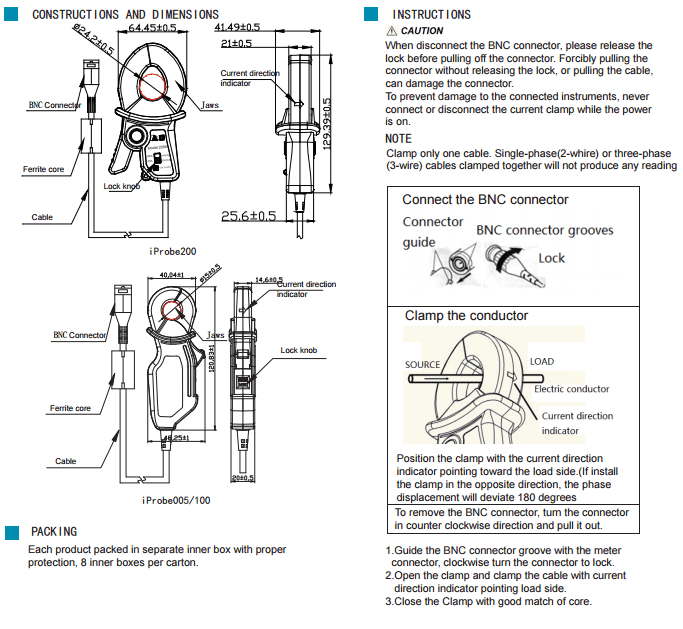

Window Size:	Check Specification Below
Rated Frequency:	50-400kHz Used on Electric Energy Field Metering
Dielectric Strength:	1000mohms @ 500 VDC
Operating Temp:	-25 C~+75 C
Internal Structure:	Epoxy Used on Electric Energy Field Metering
Export Markets:	Global
Application:	Lighting
Type:	Current Transformer
Phase:	Single or Three
Operation Condition:	Electronic, Instrument, Lighting

Product Description

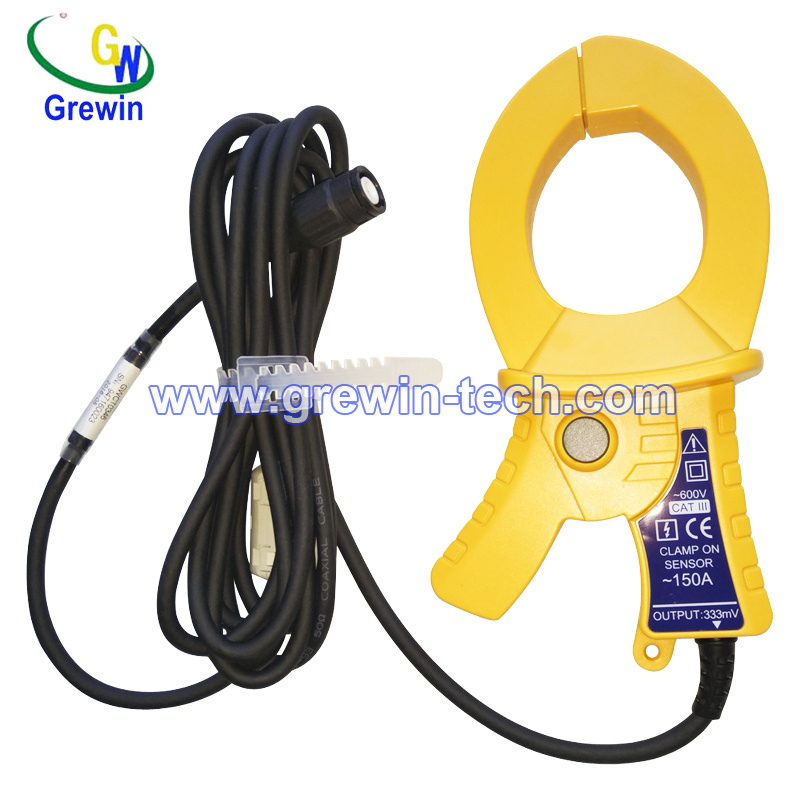

With clamping style design, Yuanxing iProbe series clamp on current transformers can measure line current safely without cutting off the measured cable. This method permits a safer, easy and portable current measurement.

Class 0.5 clamp on current transformer used on Electric energy field metering

Feature:

Flexible and light weights,exquisite appearance
Easy and quick installation in tight spaces
Excellent linearity
Maximum measuring current up to 550 A
Good appearance, stable structure.
Higher accuracy, excellent linearity, and better antijamming ability
Higher accuracy for harmonic measurement

Application :

Power quality monitoring
Smart logger
Distributed measurement systerms
Current detecting and sensing for power quality analyzers, meet class A meter requirements.
Current detecting and sensing for oscilloscope, digital meter, data logger
Harmonics measurement for frequency conversion and inverter power system
Current, electric energy and power factor correcting device

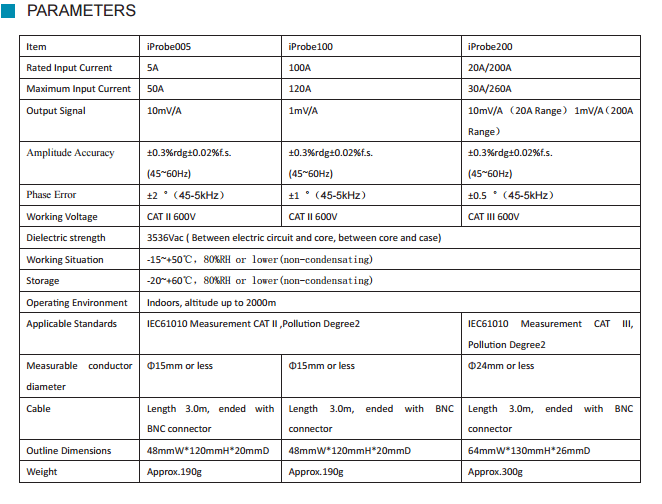

Parameter of 600 V max current550 A clamp on current transformer with output voltage 1mV GWCT0346

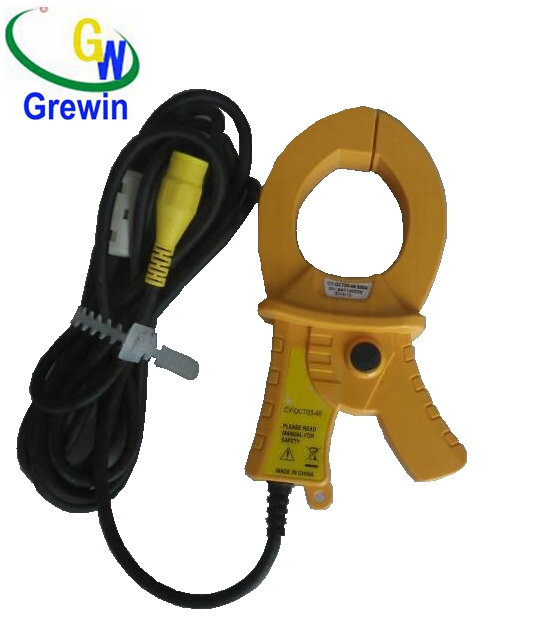

Another model of clamp on current transformer GWCT01

Feature:

Delicate ,exquisite ,light
Directly encircle busbar ,No need to cut busbar
Adopted high permeability core ,high accuracy ,good linearity,high ability of prevent interference

Typical Application :

Electric energy field metering
Mearure together with other kinds of instruments .

WHY CHOOSE US?

Quality and honest first!

A. Flexible service for diffierent transformers with high efficiency performance.

B. Over 40 years experience of transformer designing and producing.

C. 100% test of every single product we produce from incoming material checking.

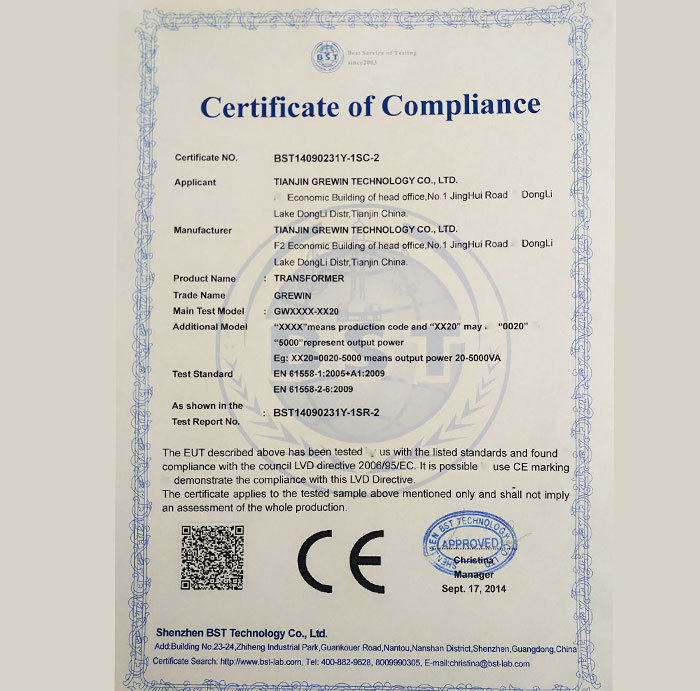

D. UL, CE, ROHS, ISO9001:2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We deliver the quality you expect at consistently competitive prices

G. Transformer quality lifetime:10 Years.

H. Specialty Sales service:5 -10 Years

Contact info :

Victor Dong

Tianjin Grewin Technology Co.,Ltd.
MT:86-13820617229
Tel: 86-22-84943756
Website:http://www.grewin-tech.com

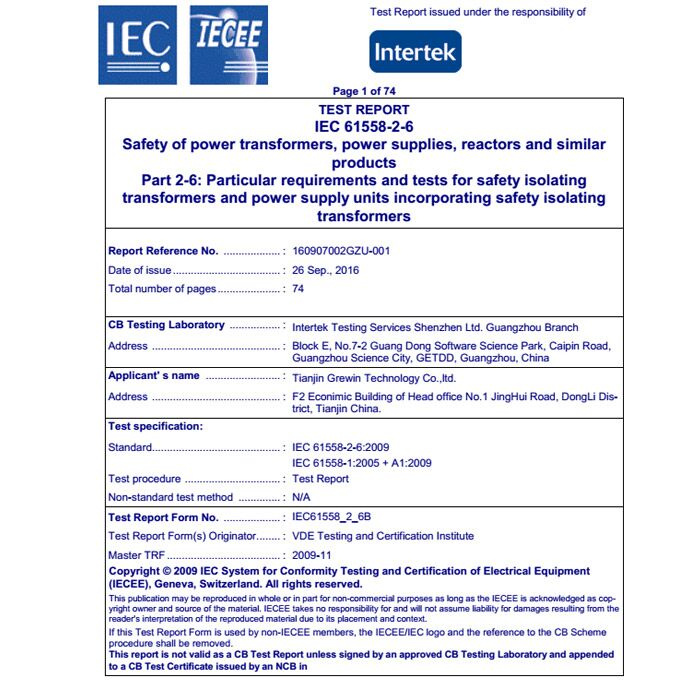

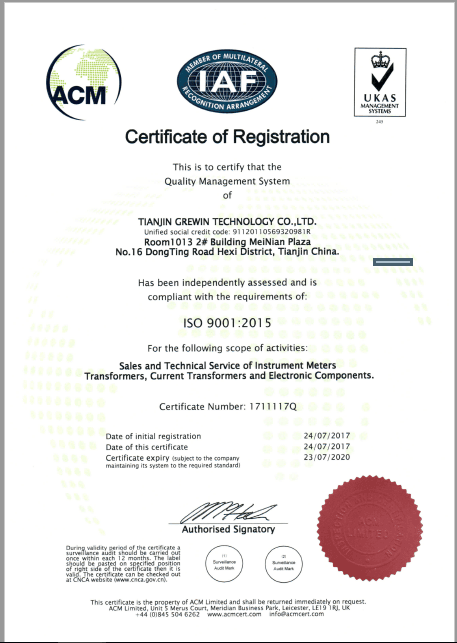

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.
