Class 0.5 Mutual Inductor Instrument Transformer Current Transformer (MSQ-30M)

Name: Class 0.5 Mutual Inductor Instrument Transformer Current Transformer (MSQ-30M)
Brand: all-electronics-online.com
SKU: 804350125
Availability: InStock
Rating: 5 (143 reviews)

Price:	US $ 4.9-5.9/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSQ-30B
Application:	Position Sensor
Type:	Current Transformer

Product Description

CNC high quality YCP45/14 mini current transformer

About CNC:

1.China top 500 enterprises.

2.26 years rich experiences in manufacturing electrical products.

3.Sales in over 100 countries.

4.Pass ISO9001,ISO14001,CCC,CE,CB,IEC,ICO certificate and standard.

Technical parameter

Primary current	5A-5000A
Secondary current	5A,1A
Maximum voltage	0.72KV
Continuous operating current	1.2×In
Test voltage per minute	3KV
Rated security coefficient	Fs <5
Frequency	50/60HZ
Thermal rated Current	1th-100×In
Rated Load	1-30VA

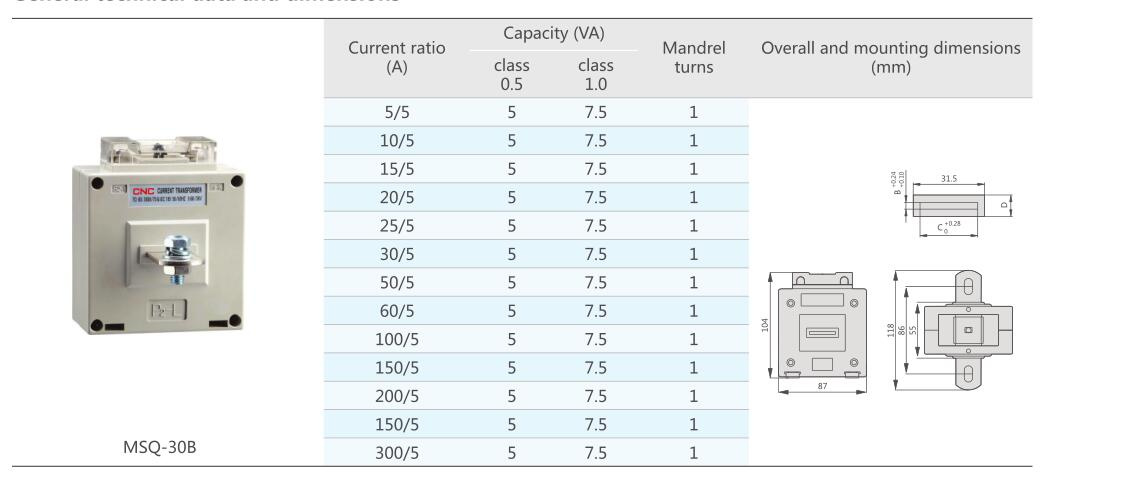

Type	Measuring range
MSQ-40	15/5A 20/5A 30/5A 40/5A 50/5A 15/1A 20/1A 30/1A 40/1A 50/1A 75/5A 100/5A 150/5A 200/5A 75/1A 100/1A 150/1A 200/1A 300/5A 400/5A 500/5A 600/5A 300/1A 400/1A 500/1A 600/1A
MSQ-40	100A/5 150A/5 200A/5 250A/5 100A/1A 150A/1A 200A/1A250A/1A 300A/5 400A/5 500A/5 600A/5 300A/1A 400A/1A 500A/1A 600A/1A
MSQ-50	200A/5 250A/5 400A/5 200A/1A 250A/1A 400A/1A
MSQ-50	500A/5 600A/5 800A/5 500A/1A 600A/1A 800A/1A
MSQ-60	400A/5 500A/5 400A/1A 500A/1A
	600A/5 800A/5 600A/1A 800A/1A
	1000A/5 1200A/5 1000A/1A 1200A/1A
MSQ-80	600A/5 800A/5 1000A/5 600A/1A 800A/1A 1000A/1A
	1200A/5 1500A/5 1600A/5 1200A/1A 1500A/1A 1600A/1A
	2000A/5 2500A/5 2000A/1A 2500A/1A
MSQ-100	800A/5 1000A/5 800A/1A 1000A/1A
	1000A/5 1200A/5 1500A/5 1000A/1A 1200A/1A 1500A/1A
	1600A/5 2000A/5 2500A/5 1600A/1A 2000A/1A 2500A/1A
	3000A/5 3000A/1A
MSQ-125	2000A/5 2500A/5 3000A/5 2000A/1A 2500A/1A 3000A/1A
MSQ-125	4000A/5 5000A/5 4000A/1A 5000A/1A

MSQ-30B

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
