| Prod Model: |
PBX100-385/3+N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Working Voltage: |
220/380V AC |
| Max Discharge Current(Ka): |
80 |
| Dimension (mm): |
400 * 310 * 120mm |
| Protection Level(20ka,8/20µs): |
2500V |
| Index Of Protection: |
IP40 |
| Operating Environment: |
Temperature:-40-+85oc Humidity: ≤95% |
| Mounting Type: |
Wall Mounting or Horizontal According to Different |
| Connecting Wire Sectinal Area: |
4-25mm ² |
| Warranty: |
Five-Year Warranty, Three-Year Replacement |
| Weight: |
2.5-5kg |
| Structure: |
Protection |
| Type: |
Lightning Protective Box |
| Certification: |
Ce, FCC, RoHS, National Type Test |
| Shell Protection Grade: |
IP40 |
| Brand: |
Opplei |
Product Description

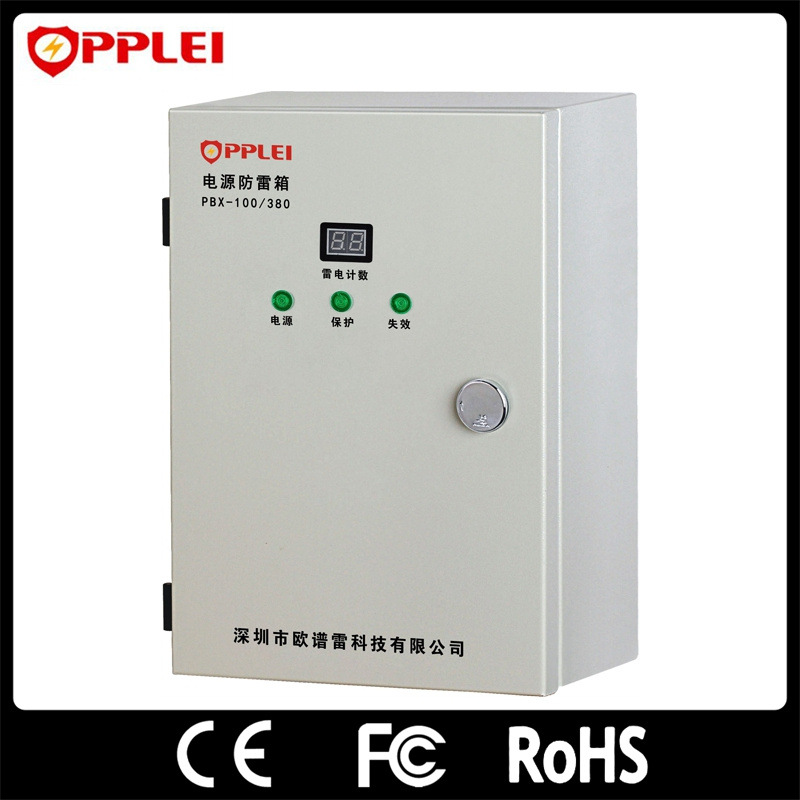

Class B 100ka 3-Phase Lightning Protection Box for Outdoor Use
Model PBX-100/385/3+N
1. Product features
380V surge protection box
Lightning count instructions
Fast response & stable performance
Build-in temperature control, circuit breaking technology, high security performance
Display status of on and off
2. Applications
Lightning and over-voltage protection of power, telecommunication, transportation, residence, railway, petro-chemistry industries
3. Technical data
| Model | PBX-80/380 |
| Nominal operating voltage Un | 220/380VAC |
| Maximum continuous operating voltage Uc | 385VAC |
| Nominal discharge current In (8/20μs) | 40KA |
| Maximum discharge current Imax (8/20μs) | 80KA |
| Protection level Up (8/20μs,20KA) | ≤2.5KAV |
| Response time Ta | ≤25ns |
| Indication function | Working indication, malfunction indication, 0-99 lightning strike counting |
| Dimension | 400*310*120mm |
| Weight | 2.5-5kg |
| Mounting type | Wall mounting or horizontal according to different locations |
| Surface treatment of housing material/color | A3 steel/spray, computer white |
| Index of protection | IP40 |
| Operating environment | Temperature:-40-+85ºC humidity: ≤95%, Altitude ≤ 3000m |
| Connecting wire sectinal area | 4-25mm ² |
| warranty | Five-year warranty, three-year replacement |
| Related items | PBX-80/380/3+N, PBX-120/380/4, PBX-60/380/4, PBX120/220-2 |
Get Price and Technology support Now Add Amy Ya
Tel:+86 18378826527
Packing &Shipping
Packing:Standard export carton;
Selling units:Single item;
Shipping:5 working day after payment (within 300pcs)
International Certificate:
CE FCC RoHS ISO9001,All production in accordance with IEC IEEE the international standard;
Company Information
Shenzhen Opplei Technologies Co.,Ltd professional designs and manufactures highly reliable, industrial grade, TVSS (transient voltage surge supressors) surge protectors that guard sensitive equipment from damage. AC Power Line, Data Line, Low Voltage SPDs,lightning rods,Varistors.
More than 10 years experience R&D teams so easy for product customized and get a fast after sale service . and manufacture of highly reliable surge protection devices (TVSS, SPDs). Products you can depend on when it counts.
Lightning and power surges can seriously damage or disrupt operations in hospitals, financial institutions, military installations and other mission critical activities. Surge Protection's attention to design and manufacturing offers extraordinary surge current diversion capability, reliably protecting sensitive systems from damaging transients, downtime, and its associated financial and labor costs
