| Prod Model: |
QSF-X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Principle: |
Compression Refrigeration Equipment |
| Type: |
Temperature Controller |
| Usage: |
Air Conditioner, Ventilation, Air Purifier |
| Control Type: |
Digital |
| Material: |
Steel |
| Control Method: |
Electronic Type |
| Cooling Purpose: |
Air Conditioner |
Product Description

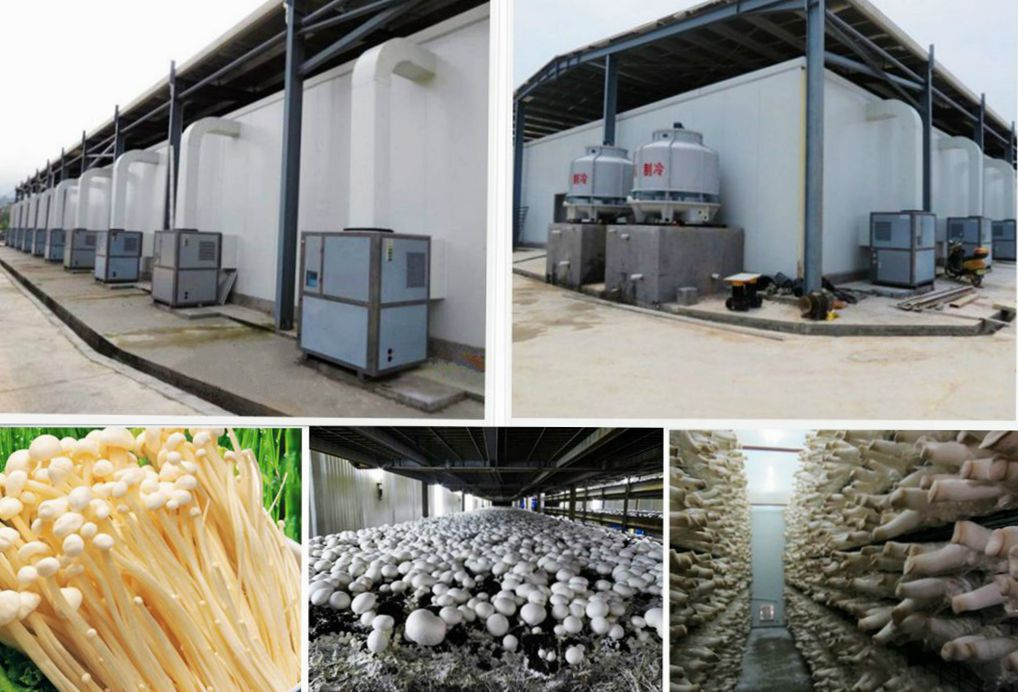

Edible mushroom envoroment all in one machine
Product features
>> Wide range and Precise control leaving air temp. make the minimum accurate to be 0.1 ° C.
>> Proportional control new air input the room, it can precise control the concentration of CO2 in the mushroom growing Room. It has the faction of supply new air, middle effect of purfication and precooling.
>> Humidity testing and control provide mushroom Room illumination control signal.

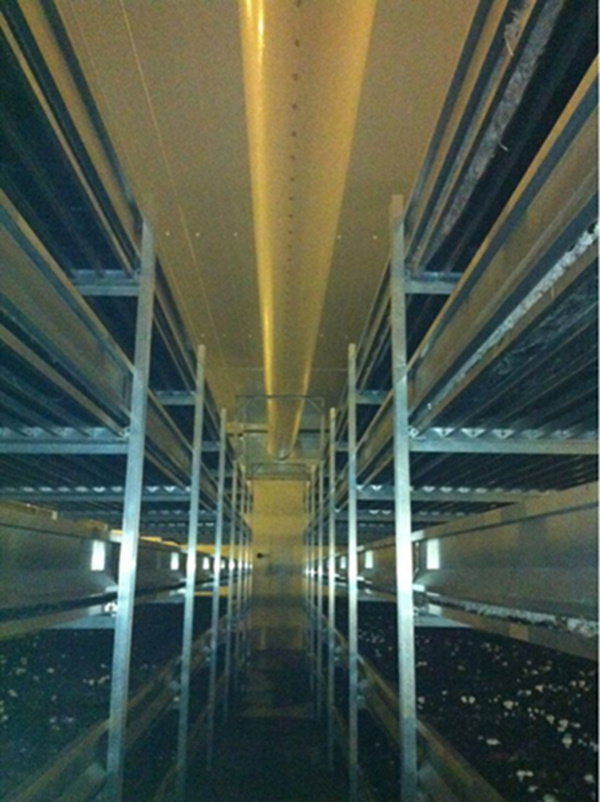

>> Return air purification and mushroom room air circulation, The uniformity of air supply all of these make a equilibrium production environment in the mushroom.
Advantages

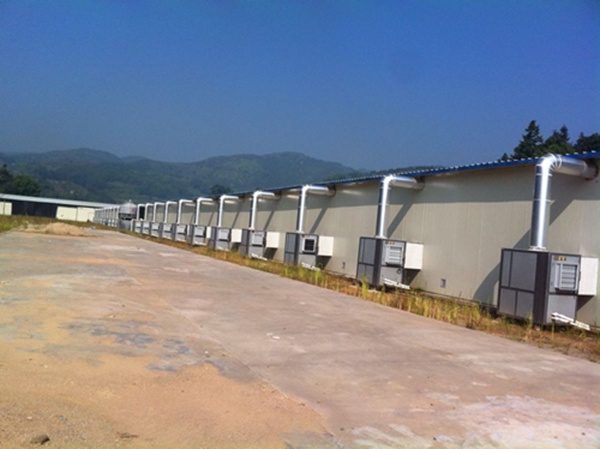

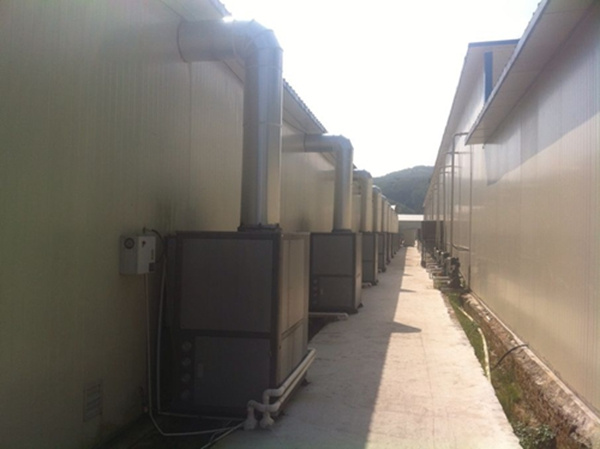

>> All in one structure, indoor and outdoor unit are Integrated. It is easy installation and can be used just
Want to connect the power and ventilation duct;
>> Evaporator adopt anti-oxidation fin, big wind centrifugal fan and dampproof motor; Stainless steel
Bellows so it suitable to be used in the high humidity work environment.
>> Condensate water recycling can improve EER and Environmental cleanliness.
>> The machine is detected fully in the plant, the Quality is reliable;
>> Automatic detection fault shorten maintenance time.
>> Safe and reliable operation, strong electricity is Outside the mushroom room, no fire hazard.
>> Reduce investment
It can use gas chamber and new fans.
It can be used without hermetic cabin
Reduce the intelligent electric cabinet.
Reduce the mushroom room height more than 50 cm.
| model | QSB17S | QSB27S | QSB33S | QSB40S | QSB50S | QSB66S | QSB15F | QSB24F | QSB30F | QSB36F | QSB45F | QSB59F |
cooling
capacity | kw | 19.7 | 26.5 | 39.4 | 47.6 | 59.1 | 83.4 | 17.4 | 28.4 | 34.8 | 42.3 | 52.2 | 74.2 |
| kcal | 16942 | 22790 | 33884 | 40936 | 50826 | 71724 | 14964 | 24424 | 29928 | 36378 | 44892 | 63812 |
| COP | 5.93 | 6.35 | 5.93 | 6.49 | 5.93 | 6.6 | 4.14 | 4.58 | 4.14 | 4.53 | 4.14 | 4.5 |
| input power | 3PH-380V/50HZ |
| compressor | mode | full-hermetic scroll style compressor |
| horsepower | 5HP | 8HP | 10HP | 12HP | 15HP | 20HP | 5HP | 8HP | 10HP | 12HP | 15HP | 20HP |
| input power(kw) | 3.32 | 4.17 | 6.64 | 7.34 | 9.96 | 12.64 | 4.2 | 6.2 | 8.4 | 9.33 | 12.6 | 16.48 |
| rated load current(A) | 7.04 | 8.86 | 14.08 | 13.67 | 21.12 | 24.76 | 8.02 | 11.7 | 16.04 | 16.47 | 24.06 | 29.58 |
| power of centrifugal fan(kw) | 0.4 | 1 | 2.2 | 2.2 | 1.5 | 3.5 | 0.4 | 1 | 2.2 | 2.2 | 1.5 | 3.5 |
| matching wire (mm2) | 6 | 6 | 6 | 10 | 10 | 10 | 6 | 6 | 6 | 10 | 10 | 10 |
| way to unload (%) | 0, 100 | 0, 50, 100 | 0, 100 | 33, 66, 100 | 0, 50, 100 | 0, 100 | 0, 50, 100 | 0, 100 | 33, 66, 100 | 0, 50, 100 |
| refrigerant |
| R22 |
| condenser | mode | High efficient external screwed shell and tube | High efficient inside screw tube shinizu fin style |
| cooling water flow(m3/h) | 3.9 | 5.3 | 7.9 | 9.4 | 11.8 | 16.5 |
|
|
|
|
|
|
| cooling water temperature | inlet water 30 degrees, outlet water 35degrees, air condenser temperature 50 degrees |
| evaporator | mode | High efficient inside screw tube shinizu fin style |
| normal air vaume(m3/h) | 2800 | 4200 | 5300 | 6500 | 8000 | 10800 | 2800 | 4200 | 5300 | 6500 | 8000 | 10800 |
| normal static press(kpa) | 220 | 250 | 250 | 300 | 300 | 350 | 220 | 250 | 250 | 300 | 300 | 350 |
| evaporating temperature | evaporating temperature 12 degrees |
| throttle methods | external balance expansion valve |
| purfication device | return air primary filter, fresh air intermediate-acting filter |
| control function | fill up air humidity, illumination signal, microcirculation |
| safty protection | leakage protection, overpressure and anti-phase protection, rerigerant abnormality protection,
compressor over temperature protection, lack of water protection, andautomatic fault detection, etc. |
| piping connection | cooling water in& outlet diameter | DN25 | DN40 | DN40 | DN40 | DN50 | DN50 |
|
|
|
|
|
|
| weight (kgs) | 240 | 290 | 314 | 375 | 475 | 533 | 360 | 360 | 379 | 435 | 535 | 612 |
| overall size(LxWxH)mm | 110 | 1300 | 1500 | 1600 | 1800 | 2100 | 1100 | 1500 | 1600 | 1600 | 1900 | 2100 |
| 900 | 750 | 1050 | 1050 | 1050 | 1050 | 900 | 900 | 1050 | 1050 | 1250 | 1250 |
| 1630 | 1630 | 1630 | 1700 | 1700 | 1830 | 1680 | 1680 | 1800 | 1800 | 2060 | 2060
|
